Candela composta da 3 magneti al neodimio da 12.000

Gauss ciascuno.

Filtro a maglia da 600 micron in acciao INOX

Raccordo a Tee in ottone nichelato, collegato al corpo

tramite copiglia, permette la rotazione del corpo di 180°

Flusso ciclonico

Cyclonic flow

Candle composed of 3 neodymium magnets

of 12,000 Gauss each

600 micron Stainless steel mesh filter

Nickel plated brass tee fitting, connected to the body by a

cotter pin, allows the body to rotate by 180°

OPERATION

Bicchiere di decantazione trasparente ispezionabile

Inspectable transparent decantation cup

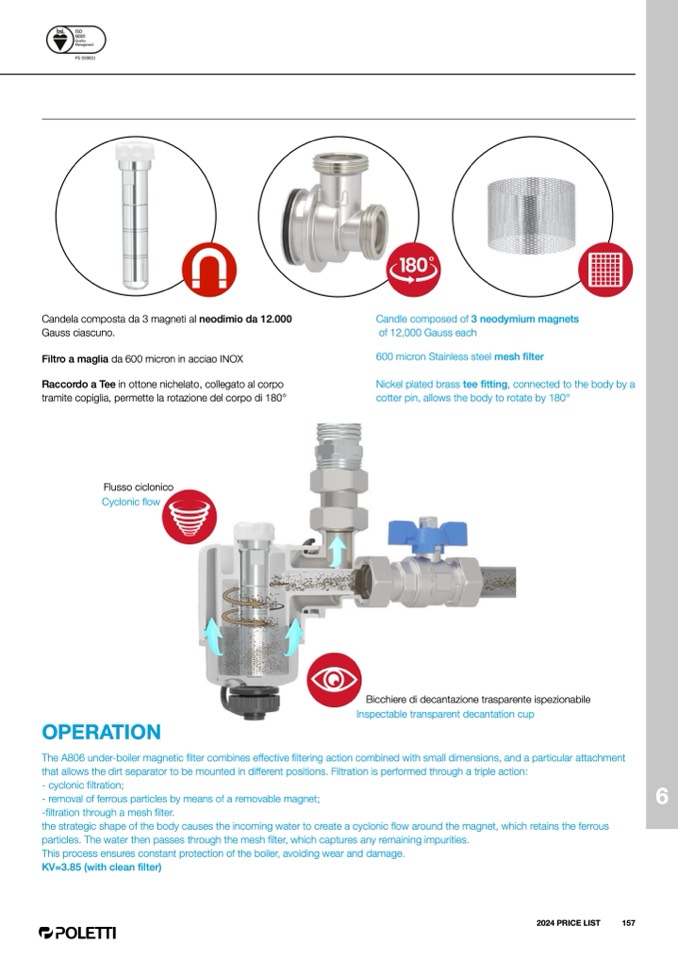

The A806 under-boiler magnetic filter combines effective filtering action combined with small dimensions, and a particular attachment

that allows the dirt separator to be mounted in di

fferent positions. Filtration is performed through a triple action:

- cyclonic filtration;

- removal of ferrous particles by means of a removable magnet;

-filtration through a mesh filter.

the strategic shape of the body causes the incoming water to create a cyclonic flow around the magnet, which retains the ferrous

particles. The water then passes through the mesh

filter, which captures any remaining impurities.

This process ensures constant protection of the boiler, avoiding wear and damage.

KV=3.85 (with clean

filter)

6
