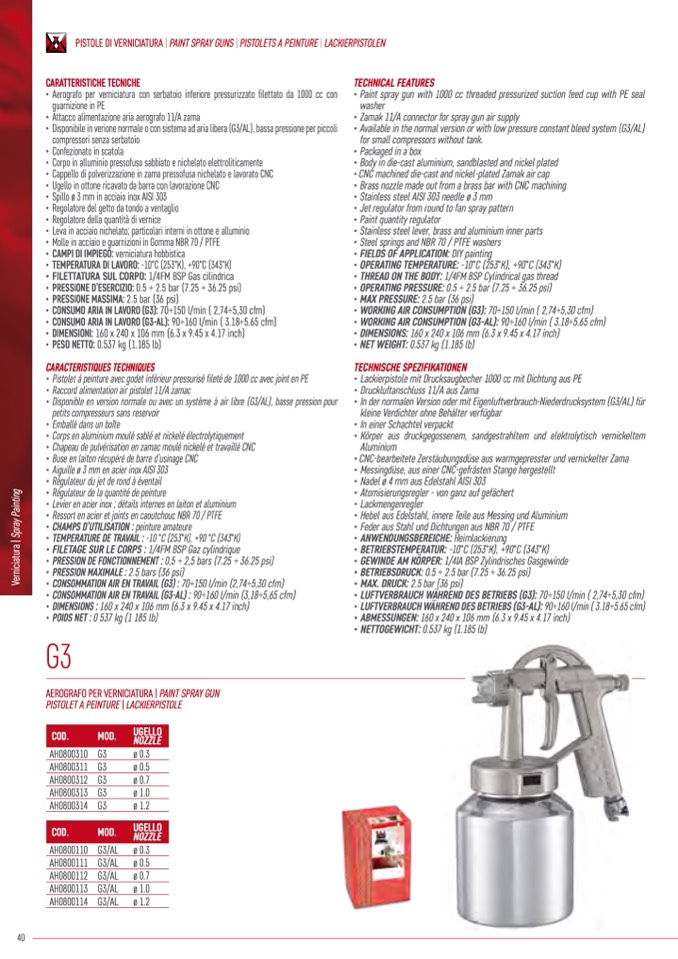

PISTOLE DI VERNICIATURA | PAINT SPRAY GUNS | PISTOLETS A PEINTURE | LACKIERPISTOLEN

CARATTERISTICHE TECNICHE

• Aerografo per verniciatura con serbatoio inferiore pressurizzato filettato da 1000 cc con

guarnizione in PE

• Attacco alimentazione aria aerografo 11/A zama

• Disponibile in verione normale o con sistema ad aria libera (G3/AL), bassa pressione per piccoli

compressori senza serbatoio

• Confezionato in scatola

• Corpo in alluminio pressofuso sabbiato e nichelato elettroliticamente

• Cappello di polverizzazione in zama pressofusa nichelato e lavorato CNC

• Ugello in ottone ricavato da barra con lavorazione CNC

• Spillo ø 3 mm in acciaio inox AISI 303

• Regolatore del getto da tondo a ventaglio

• Regolatore della quantità di vernice

• Leva in acciaio nichelato; particolari interni in ottone e alluminio

• Molle in acciaio e guarnizioni in Gomma NBR 70 / PTFE

• CAMPI DI IMPIEGO: verniciatura hobbistica

• TEMPERATURA DI LAVORO: -10°C (253°K), +90°C (343°K)

• FILETTATURA SUL CORPO: 1/4FM BSP Gas cilindrica

• PRESSIONE D’ESERCIZIO: 0.5 ÷ 2.5 bar (7.25 ÷ 36.25 psi)

• PRESSIONE MASSIMA: 2.5 bar (36 psi)

• CONSUMO ARIA IN LAVORO (G3): 70÷150 l/min ( 2,74÷5,30 cfm)

• CONSUMO ARIA IN LAVORO (G3-AL): 90÷160 l/min ( 3.18÷5.65 cfm)

• DIMENSIONI: 160 x 240 x 106 mm (6.3 x 9.45 x 4.17 inch)

• PESO NETTO: 0.537 kg (1.185 lb)

CARACTERISTIQUES TECHNIQUES

• Pistolet á peinture avec godet inférieur pressurisé fileté de 1000 cc avec joint en PE

• Raccord alimentation air pistolet 11/A zamac

• Disponible en version normale ou avec un système à air libre (G3/AL), basse pression pour

petits compresseurs sans reservoir

• Emballé dans un boîte

• Corps en aluminium moulé sablé et nickelé électrolytiquement

• Chapeau de pulvérisation en zamac moulé nickelé et travaillé CNC

• Buse en laiton récupéré de barre d’usinage CNC

• Aiguille ø 3 mm en acier inox AISI 303

• Régulateur du jet de rond

à éventail

• Régulateur de la quantité de peinture

• Levier en acier inox ; détails internes en laiton et aluminium

• Ressort en acier et joints en caoutchouc NBR 70 / PTFE

• CHAMPS D’UTILISATION : peinture amateure

• TEMPERATURE DE TRAVAIL : -10 °C (253°K), +90 °C (343°K)

• FILETAGE SUR LE CORPS : 1/4FM BSP Gaz cylindrique

• PRESSION DE FONCTIONNEMENT : 0,5 ÷ 2,5 bars (7.25 ÷ 36.25 psi)

• PRESSION MAXIMALE : 2.5 bars (36 psi)

• CONSOMMATION AIR EN TRAVAIL (G3) : 70÷150 l/min (2,74÷5,30 cfm)

• CONSOMMATION AIR EN TRAVAIL (G3-AL) : 90÷160 l/min (3,18÷5,65 cfm)

• DIMENSIONS : 160 x 240 x 106 mm (6.3 x 9.45 x 4.17 inch)

• POIDS NET : 0 537 kg (1 185 lb)

G3

AEROGRAFO PER VERNICIATURA | PAINT SPRAY GUN

PISTOLET A PEINTURE | LACKIERPISTOLE

TECHNICAL FEATURES

• Paint spray gun with 1000 cc threaded pressurized suction feed cup with PE seal

washer

• Zamak 11/A connector for spray gun air supply

• Available in the normal version or with low pressure constant bleed system (G3/AL)

for small compressors without tank.

• Packaged in a box

• Body in die-cast aluminium, sandblasted and nickel plated

• CNC machined die-cast and nickel-plated Zamak air cap

• Brass nozzle made out from a brass bar with CNC machining

• Stainless steel AISI 303 needle ø 3 mm

• Jet regulator from round to fan spray pattern

• Paint quantity regulator

• Stainless steel lever, brass and aluminium inner parts

• Steel springs and NBR 70 / PTFE washers

• FIELDS OF APPLICATION: DIY painting

• OPERATING TEMPERATURE: -10°C (253°K), +90°C (343°K)

• THREAD ON THE BODY: 1/4FM BSP Cylindrical gas thread

• OPERATING PRESSURE: 0.5 ÷ 2.5 bar (7.25 ÷ 36.25 psi)

• MAX PRESSURE: 2.5 bar (36 psi)

• WORKING AIR CONSUMPTION (G3): 70÷150 l/min ( 2,74÷5,30 cfm)

• WORKING AIR CONSUMPTION (G3-AL): 90÷160 l/min ( 3.18÷5.65 cfm)

• DIMENSIONS: 160 x 240 x 106 mm (6.3 x 9.45 x 4.17 inch)

• NET WEIGHT: 0.537 kg (1.185 lb)

TECHNISCHE SPEZIFIKATIONEN

• Lackierpistole mit Drucksaugbecher 1000 cc mit Dichtung aus PE

• Druckluftanschluss 11/A aus Zama

• In der normalen Version oder mit Eigenluftverbrauch-Niederdrucksystem (G3/AL) für

kleine Verdichter ohne Behälter verfügbar

• In einer Schachtel verpackt

• Körper aus druckgegossenem, sandgestrahltem und elektrolytisch vernickeltem

Aluminium

• CNC-bearbeitete Zerstäubungsdüse aus warmgepresster und vernickelter Zama

• Messingdüse, aus einer CNC-gefrästen Stange hergestellt

• Nadel ø 4 mm aus Edelstahl AISI 303

• Atomisierungsregler - von ganz auf gefächert

• Lackmengenregler

• Hebel aus Edelstahl, innere Teile aus Messing und Aluminium

• Feder aus Stahl und Dichtungen aus NBR 70 / PTFE

• ANWENDUNGSBEREICHE: Heimlackierung

• BETRIEBSTEMPERATUR: -10°C (253°K), +90°C (343°K)

• GEWINDE AM KÖRPER: 1/4IA BSP Zylindrisches Gasgewinde

• BETRIEBSDRUCK: 0.5 ÷ 2.5 bar (7.25 ÷ 36.25 psi)

• MAX. DRUCK: 2.5 bar (36 psi)

• LUFTVERBRAUCH WÄHREND DES BETRIEBS (G3): 70÷150 l/min ( 2,74÷5,30 cfm)

• LUFTVERBRAUCH WÄHREND DES BETRIEBS (G3-AL): 90÷160 l/min ( 3.18÷5.65 cfm)

• ABMESSUNGEN: 160 x 240 x 106 mm (6.3 x 9.45 x 4.17 inch)

• NETTOGEWICHT: 0.537 kg (1.185 lb)

COD.

MOD.

UGELLO

NOZZLE

AH0800310

AH0800311

AH0800312

AH0800313

AH0800314

AH0800110

AH0800111

AH0800112

AH0800113

AH0800114

G3

ø 0.3

G3

ø 0.5

G3

ø 0.7

G3

ø 1.0

G3

ø 1.2

G3/AL ø 0.3

G3/AL ø 0.5

G3/AL ø 0.7

G3/AL ø 1.0

G3/AL ø 1.2

COD.

MOD.

UGELLO

NOZZLE
