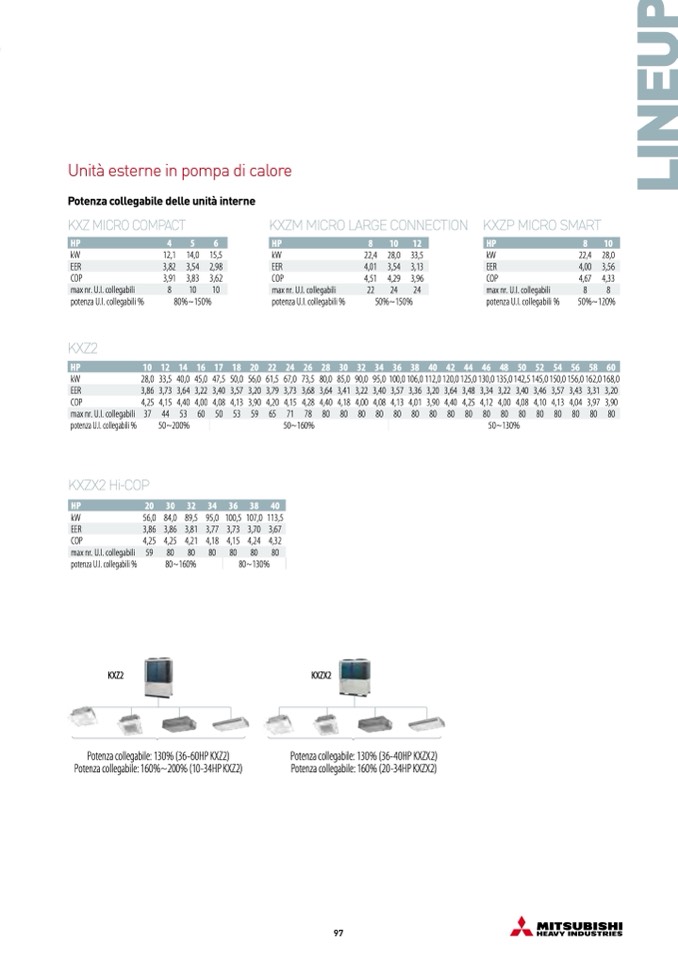

Unità esterne in pompa di calore
Potenza collegabile delle unit
à interne
KXZ MICRO COMPACT
KXZM MICRO LARGE CONNECTION
KXZP MICRO SMART
HP
4
5
6
HP
8
10
12
HP
8
10
kW
COP
potenza U.I. collegabili %
KXZ2
kW
COP
potenza U.I. collegabili %
12,1 14,0 15,5
3,91 3,83 3,62
80%~150%
kW
COP
potenza U.I. collegabili %
22,4 28,0 33,5
4,51 4,29 3,96
50%~150%
kW
COP
potenza U.I. collegabili %
22,4 28,0
4,67 4,33
50%~120%
EER
3,82
3,54
2,98
EER
4,01
3,54
3,13
EER
4,00
3,56
max nr. U.I. collegabili
8
10
10
max nr. U.I. collegabili
22
24
24
max nr. U.I. collegabili
8
8
HP
10
12
14
16
17
18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
48
50
52
54
56
58
60
28,0 33,5 40,0 45,0 47,5 50,0 56,0 61,5 67,0 73,5 80,0 85,0 90,0 95,0 100,0106,0112,0120,0125,0130,0135,0142,5145,0150,0156,0162,0168,0
4,25 4,15 4,40 4,00 4,08 4,13 3,90 4,20 4,15 4,28 4,40 4,18 4,00 4,08 4,13 4,01 3,90 4,40 4,25 4,12 4,00 4,08 4,10 4,13 4,04 3,97 3,90
EER
3,86
3,73
3,64
3,22
3,40
3,57
3,20
3,79
3,73
3,68
3,64
3,41
3,22
3,40
3,57
3,36
3,20
3,64
3,48
3,34
3,22
3,40
3,46
3,57
3,43
3,31
3,20
max nr. U.I. collegabili
37
44
53
60
50
53
59
65
71
78
80
80
80
80
80
80
80
80
80
80
80
80
80
80
80
80
80
KXZX2 Hi-COP
50~200%
50~160%
50~130%
HP
20
30
32
34
36
38
40
kW
COP
potenza U.I. collegabili %
KXZ2
56,0 84,0 89,5 95,0 100,5 107,0 113,5
4,25 4,25 4,21 4,18 4,15 4,24 4,32
EER
3,86
3,86
3,81
3,77
3,73
3,70
3,67
max nr. U.I. collegabili
59
80
80
80
80
80
80
80~160%
80~130%
Potenza collegabile: 130% (36-60HP KXZ2)
Potenza collegabile: 160%~200% (10-34HP KXZ2)
KXZX2
Potenza collegabile: 130% (36-40HP KXZX2)
Potenza collegabile: 160% (20-34HP KXZX2)
