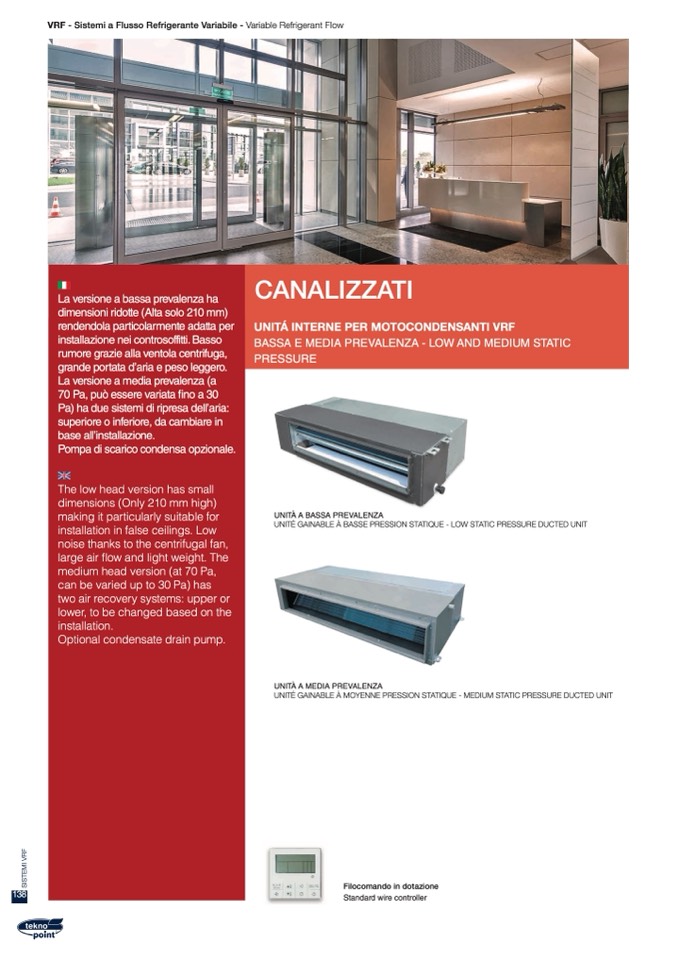

VRF - Sistemi a Flusso Refrigerante Variabile - Variable Refrigerant Flow

UNITÀ A BASSA PREVALENZA

UNITÉ GAINABLE À BASSE PRESSION STATIQUE - LOW STATIC PRESSURE DUCTED UNIT

UNITÀ A MEDIA PREVALENZA

UNITÉ GAINABLE À MOYENNE PRESSION STATIQUE - MEDIUM STATIC PRESSURE DUCTED UNIT

La versione a bassa prevalenza ha

dimensioni ridotte (Alta solo 210 mm)

rendendola particolarmente adatta per

installazione nei controsoffitti. Basso

rumore grazie alla ventola centrifuga,

grande portata d’aria e peso leggero.

La versione a media prevalenza (a

70 Pa, può essere variata fino a 30

Pa) ha due sistemi di ripresa dell’aria:

superiore o inferiore, da cambiare in

base all’installazione.

Pompa di scarico condensa opzionale.

The low head version has small

dimensions (Only 210 mm high)

making it particularly suitable for

installation in false ceilings. Low

noise thanks to the centrifugal fan,

large air flow and light weight. The

medium head version (at 70 Pa,

can be varied up to 30 Pa) has

two air recovery systems: upper or

lower, to be changed based on the

installation.

Optional condensate drain pump.

CANALIZZATI

UNITÁ INTERNE PER MOTOCONDENSANTI VRF

BASSA E MEDIA PREVALENZA - LOW AND MEDIUM STATIC

PRESSURE

Filocomando in dotazione

Standard wire controller
