PREMANT district heating pipe

Installation guidelines

PRE 6.266

Sheet 4

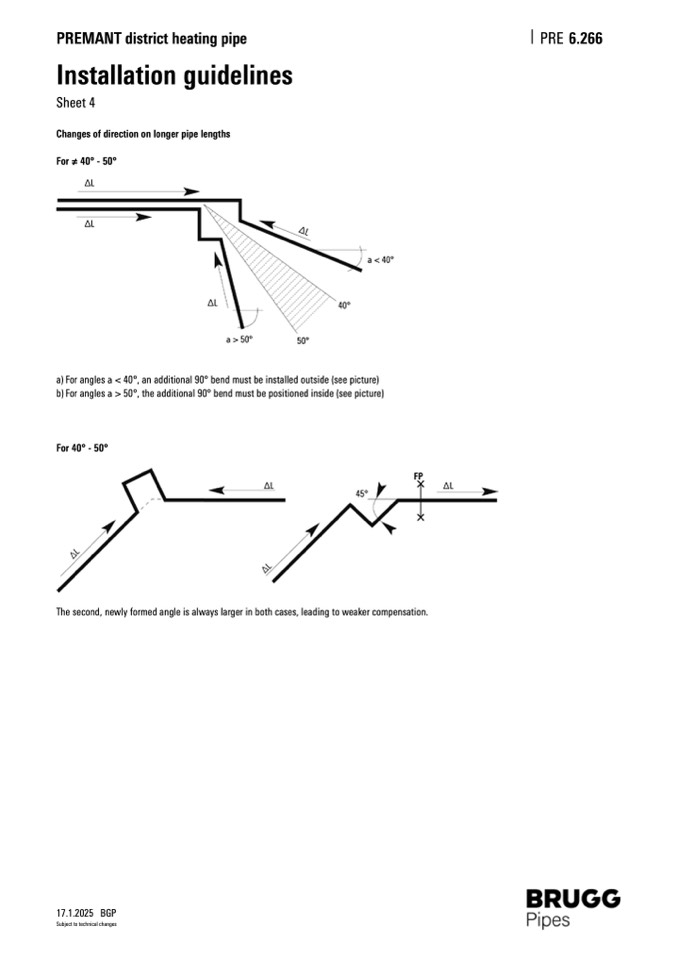

Changes of direction on longer pipe lengths

For ≠ 40° - 50°

∆L

∆L

∆L

a > 50°

a) For angles a < 40°, an additional 90° bend must be installed outside (see picture)

b) For angles a > 50°, the additional 90° bend must be positioned inside (see picture)

For 40° - 50°

∆L

45°

The second, newly formed angle is always larger in both cases, leading to weaker compensation.

17.1.2025 BGP

Subject to technical changes

40°

50°

a < 40°

FP

∆L

∆

L

∆

L

∆

L
