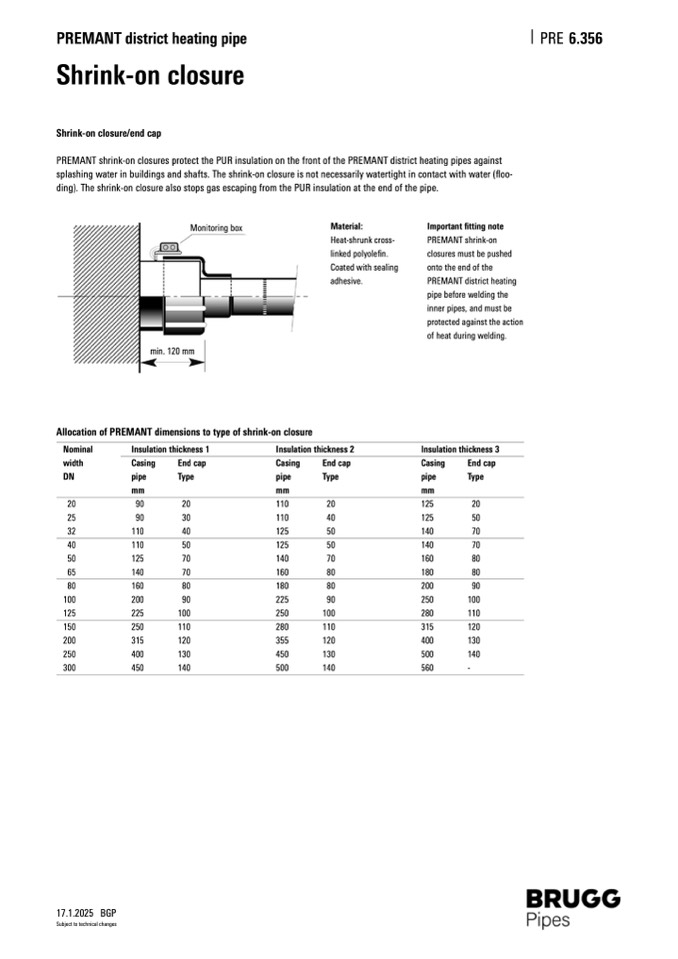

PREMANT district heating pipe
Shrink-on closure
Shrink-on closure/end cap
PREMANT shrink-on closures protect the PUR insulation on the front of the PREMANT district heating pipes against
splashing water in buildings and shafts. The shrink-on closure is not necessarily watertight in contact with water (floo-
ding). The shrink-on closure also stops gas escaping from the PUR insulation at the end of the pipe.
PRE 6.356
Monitoring box
min. 120 mm
Allocation of PREMANT dimensions to type of shrink-on closure
Material:
Heat-shrunk cross-
linked polyole
fin.
Coated with sealing
adhesive.
Important fitting note
PREMANT shrink-on
closures must be pushed
onto the end of the
PREMANT district heating
pipe before welding the
inner pipes, and must be
protected against the action
of heat during welding.
Insulation thickness 3
Nominal
Insulation thickness 1
Insulation thickness 2
Casing
End cap
pipe
Type
mm
110
20
110
40
125
50
125
50
140
70
160
80
180
80
225
90
250
100
280
110
355
120
450
130
500
140
width
Casing
DN
pipe
mm
20
90
25
90
32
110
40
110
50
125
65
140
80
160
100
200
125
225
150
250
200
315
250
400
300
450
End cap
Type
20
30
40
50
70
70
80
90
100
110
120
130
140
Casing
pipe
mm
125
125
140
140
160
180
200
250
280
315
400
500
560
End cap
Type
20
50
70
70
80
80
90
100
110
120
130
140
-
17.1.2025 BGP
Subject to technical changes
