PREMANT district heating pipe

Tapping technology

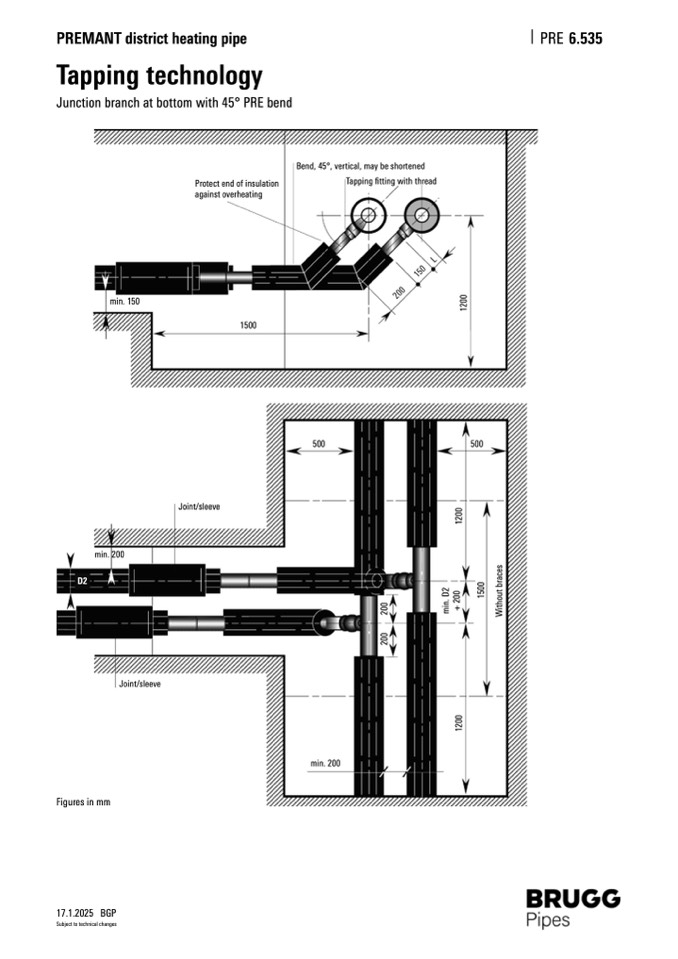

Junction branch at bottom with 45° PRE bend

PRE 6.535

min. 200

D2

Figures in mm

17.1.2025 BGP

Subject to technical changes

min. 150

Joint/sleeve

Protect end of insulation

against overheating

1500

Bend, 45°, vertical, may be shortened

Tapping fitting with thread

Joint/sleeve

500

500

min. 200
