PREMANT district heating pipe

Tapping technology

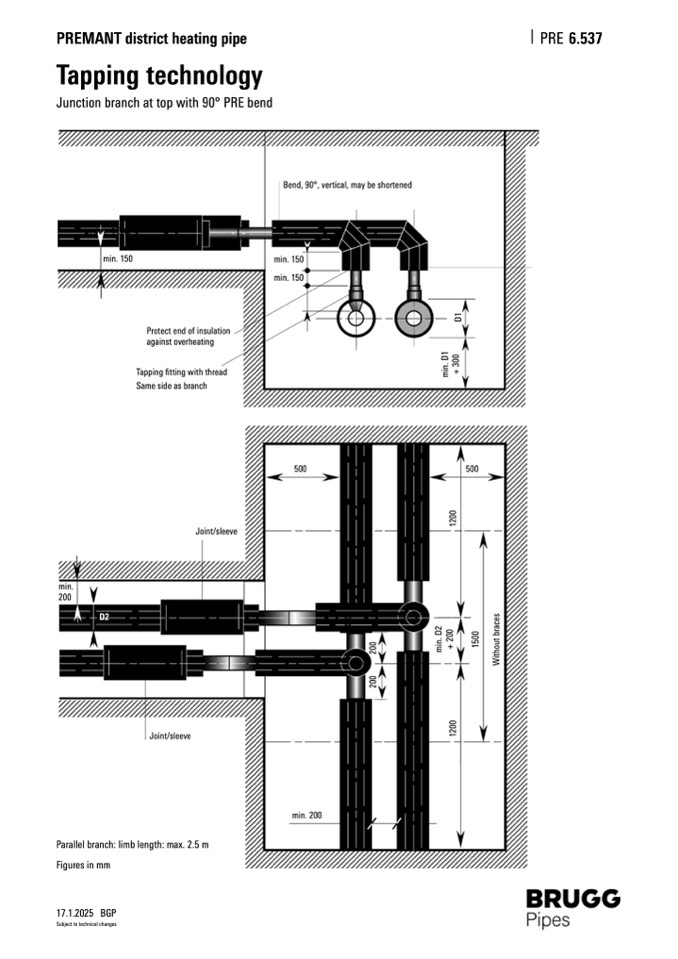

Junction branch at top with 90° PRE bend

PRE 6.537

min.

200

min. 150

Bend, 90°, vertical, may be shortened

min. 150

min. 150

D2

Parallel branch: limb length: max. 2.5 m

Figures in mm

17.1.2025 BGP

Subject to technical changes

Protect end of insulation

against overheating

Tapping fitting with thread

Same side as branch

Joint/sleeve

500

500

Joint/sleeve

min. 200
