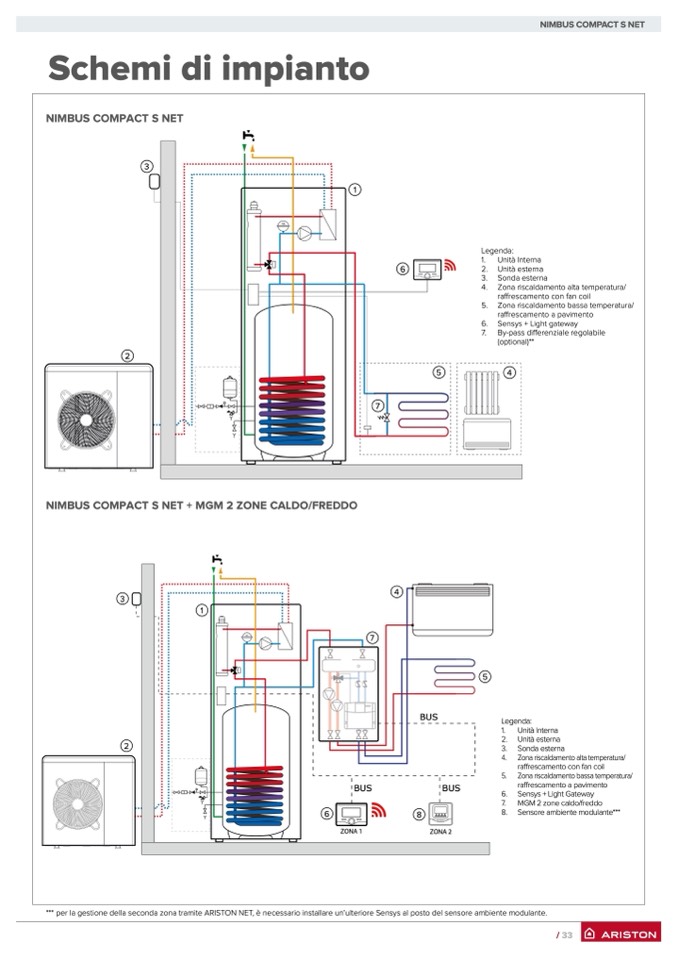

Schemi di impianto

NIMBUS COMPACT S NET

3

2

NIMBUS COMPACT S NET + MGM 2 ZONE CALDO/FREDDO

3

2

1

4

7

BUS

6

8

ZONA 1

VE

*** per la gestione della seconda zona tramite ARISTON NET, è necessario installare un’ulteriore Sensys al posto del sensore ambiente modulante.

VE

1

7

6

Legenda:

1.

Unità Interna

2. Unità esterna

3. Sonda esterna

4. Zona riscaldamento alta temperatura/

raffrescamento con fan coil

5. Zona riscaldamento bassa temperatura/

raffrescamento a pavimento

6. Sensys + Light gateway

7.

By-pass differenziale regolabile

(optional)**

5

4

BUS

Legenda:

BUS

ZONA 2

1.

2.

3.

4.

5.

6.

7.

8.

Unità Interna

Unità esterna

Sonda esterna

Zona riscaldamento alta temperatura/

raffrescamento con fan coil

Zona riscaldamento bassa temperatura/

raffrescamento a pavimento

Sensys + Light Gateway

MGM 2 zone caldo/freddo

Sensore ambiente modulante***

5

NIMBUS COMPACT S NET
