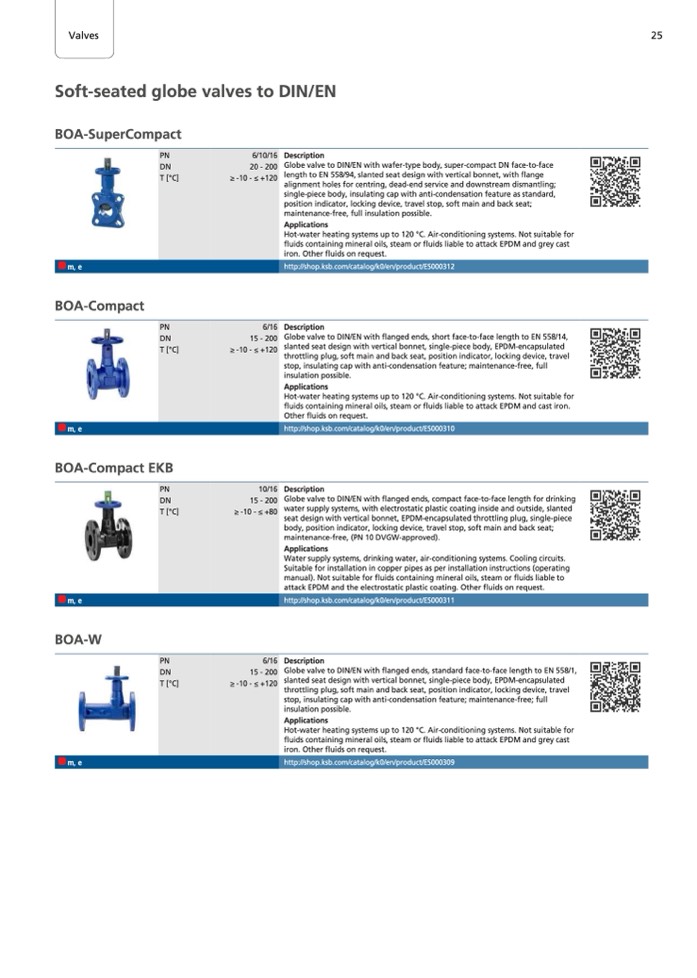

Valves
25
Valves
Soft-seated globe valves to DIN/EN
BOA-SuperCompact
m, e
BOA-Compact
m, e
≥ -10
BOA-Compact EKB
m, e
BOA-W
m, e
PN
DN
T [°C]
PN
DN
T [°C]
10/16
15 - 200
≥ -10 - ≤ +80
6/16
15 - 200
≥ -10 - ≤ +120
PN
DN
T [°C]
PN
DN
T [°C]
≥ -10
6/10/16
20 - 200
- ≤ +120
6/16
15 - 200
- ≤ +120
Description
Globe valve to DIN/EN with wafer-type body, super-compact DN face-to-face
length to EN 558/94, slanted seat design with vertical bonnet, with flange
alignment holes for centring, dead-end service and downstream dismantling;
single-piece body, insulating cap with anti-condensation feature as standard,
position indicator, locking device, travel stop, soft main and back seat;
maintenance-free, full insulation possible.
Applications
Hot-water heating systems up to 120 °C. Air-conditioning systems. Not suitable for
fluids containing mineral oils, steam or fluids liable to attack EPDM and grey cast
iron. Other fluids on request.
http://shop.ksb.com/catalog/k0/en/product/ES000312
Description
Globe valve to DIN/EN with flanged ends, short face-to-face length to EN 558/14,
slanted seat design with vertical bonnet, single-piece body, EPDM-encapsulated
throttling plug, soft main and back seat, position indicator, locking device, travel
stop, insulating cap with anti-condensation feature; maintenance-free, full
insulation possible.
Applications
Hot-water heating systems up to 120 °C. Air-conditioning systems. Not suitable for
fluids containing mineral oils, steam or fluids liable to attack EPDM and cast iron.
Other fluids on request.
http://shop.ksb.com/catalog/k0/en/product/ES000310
Description
Globe valve to DIN/EN with flanged ends, compact face-to-face length for drinking
water supply systems, with electrostatic plastic coating inside and outside, slanted
seat design with vertical bonnet, EPDM-encapsulated throttling plug, single-piece
body, position indicator, locking device, travel stop, soft main and back seat;
maintenance-free, (PN 10 DVGW-approved).
Applications
Water supply systems, drinking water, air-conditioning systems. Cooling circuits.
Suitable for installation in copper pipes as per installation instructions (operating
manual). Not suitable for fluids containing mineral oils, steam or fluids liable to
attack EPDM and the electrostatic plastic coating. Other fluids on request.
http://shop.ksb.com/catalog/k0/en/product/ES000311
Description
Globe valve to DIN/EN with flanged ends, standard face-to-face length to EN 558/1,
slanted seat design with vertical bonnet, single-piece body, EPDM-encapsulated
throttling plug, soft main and back seat, position indicator, locking device, travel
stop, insulating cap with anti-condensation feature; maintenance-free; full
insulation possible.
Applications
Hot-water heating systems up to 120 °C. Air-conditioning systems. Not suitable for
fluids containing mineral oils, steam or fluids liable to attack EPDM and grey cast
iron. Other fluids on request.
http://shop.ksb.com/catalog/k0/en/product/ES000309
