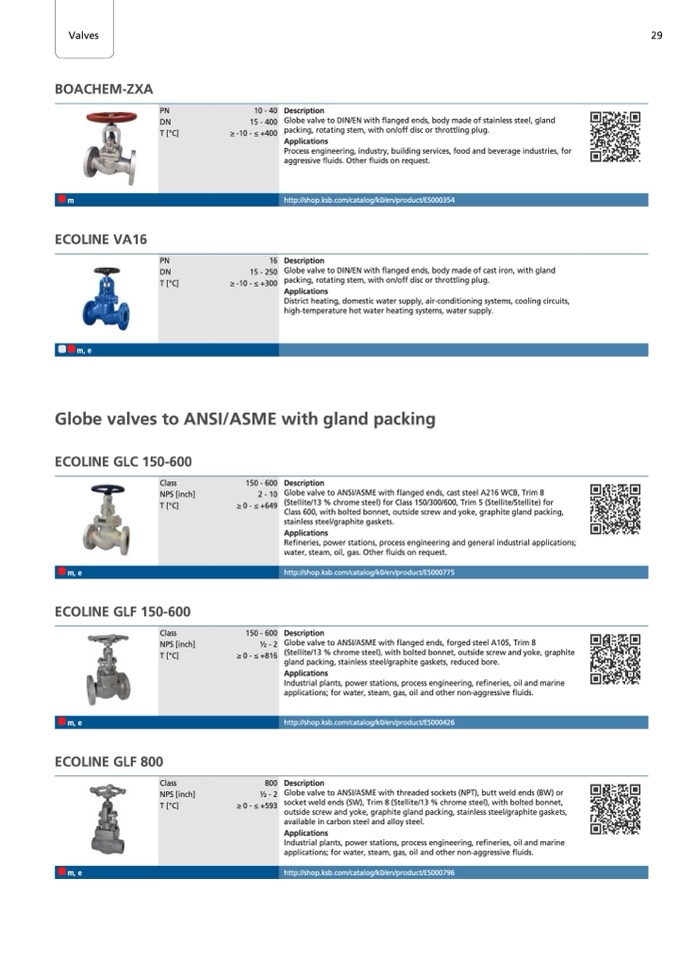

Valves
Valves
BOACHEM-ZXA
m
ECOLINE VA16
m, e
29
m, e
ECOLINE GLF 150-600
Class
NPS [inch]
T [°C]
m, e
ECOLINE GLF 800
m, e
PN
DN
T [°C]
PN
DN
T [°C]
≥ -10
≥ -10
10 - 40
15 - 400
- ≤ +400
16
15 - 250
- ≤ +300
Description
Globe valve to DIN/EN with flanged ends, body made of stainless steel, gland
packing, rotating stem, with on/off disc or throttling plug.
Applications
Process engineering, industry, building services, food and beverage industries, for
aggressive fluids. Other fluids on request.
http://shop.ksb.com/catalog/k0/en/product/ES000354
Description
Globe valve to DIN/EN with flanged ends, body made of cast iron, with gland
packing, rotating stem, with on/off disc or throttling plug.
Applications
District heating, domestic water supply, air-conditioning systems, cooling circuits,
high-temperature hot water heating systems, water supply.
Globe valves to ANSI/ASME with gland packing
ECOLINE GLC 150-600
Class
NPS [inch]
T [°C]
150 - 600
2 - 10
≥ 0 - ≤ +649
150 - 600
1⁄2- 2
≥ 0 - ≤ +816
800
1⁄2- 2
≥ 0 - ≤ +593
Description
Globe valve to ANSI/ASME with flanged ends, cast steel A216 WCB, Trim 8
(Stellite/13 % chrome steel) for Class 150/300/600, Trim 5 (Stellite/Stellite) for
Class 600, with bolted bonnet, outside screw and yoke, graphite gland packing,
stainless steel/graphite gaskets.
Applications
Refineries, power stations, process engineering and general industrial applications;
water, steam, oil, gas. Other fluids on request.
http://shop.ksb.com/catalog/k0/en/product/ES000775
Description
Globe valve to ANSI/ASME with flanged ends, forged steel A105, Trim 8
(Stellite/13 % chrome steel), with bolted bonnet, outside screw and yoke, graphite
gland packing, stainless steel/graphite gaskets, reduced bore.
Applications
Industrial plants, power stations, process engineering, refineries, oil and marine
applications; for water, steam, gas, oil and other non-aggressive fluids.
http://shop.ksb.com/catalog/k0/en/product/ES000426
Description
Globe valve to ANSI/ASME with threaded sockets (NPT), butt weld ends (BW) or
socket weld ends (SW), Trim 8 (Stellite/13 % chrome steel), with bolted bonnet,
outside screw and yoke, graphite gland packing, stainless steel/graphite gaskets,
available in carbon steel and alloy steel.
Applications
Industrial plants, power stations, process engineering, refineries, oil and marine
applications; for water, steam, gas, oil and other non-aggressive fluids.
http://shop.ksb.com/catalog/k0/en/product/ES000796
Class
NPS [inch]
T [°C]
