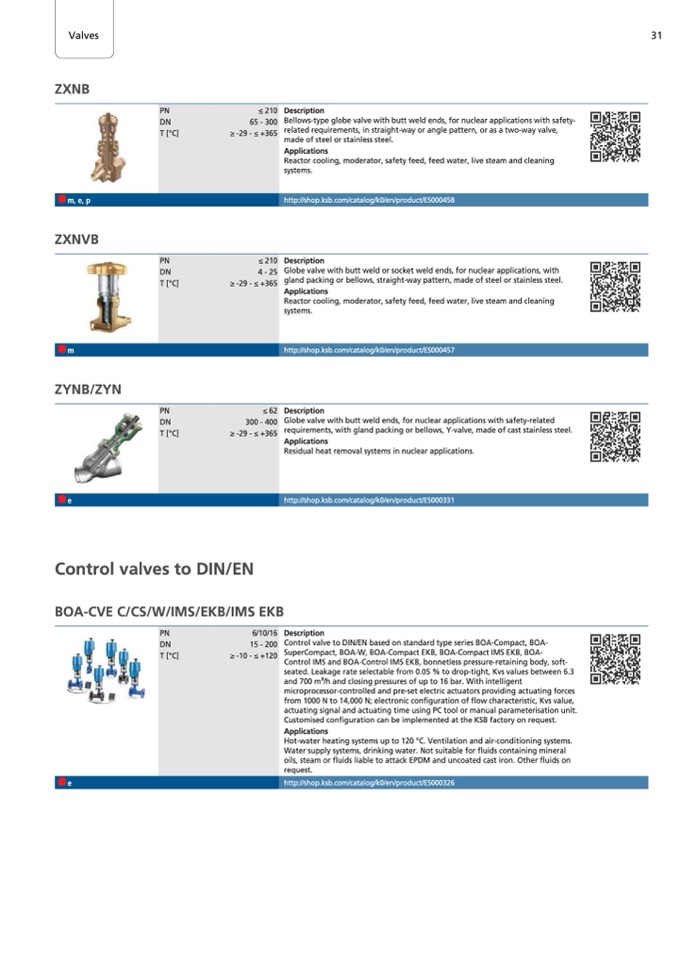

Valves

ZXNB

m, e, p

ZXNVB

ZYNB/ZYN

T [°C]

≤ 210

65 - 300

≥ -29 - ≤ +365

≤ 210

4 - 25

≥ -29 - ≤ +365

≤ 62

300 - 400

≥ -29 - ≤ +365

Description

Bellows-type globe valve with butt weld ends, for nuclear applications with safety-

related requirements, in straight-way or angle pattern, or as a two-way valve,

made of steel or stainless steel.

Applications

Reactor cooling, moderator, safety feed, feed water, live steam and cleaning

systems.

http://shop.ksb.com/catalog/k0/en/product/ES000458

Description

Globe valve with butt weld or socket weld ends, for nuclear applications, with

gland packing or bellows, straight-way pattern, made of steel or stainless steel.

Applications

Reactor cooling, moderator, safety feed, feed water, live steam and cleaning

systems.

http://shop.ksb.com/catalog/k0/en/product/ES000457

Description

Globe valve with butt weld ends, for nuclear applications with safety-related

requirements, with gland packing or bellows, Y-valve, made of cast stainless steel.

Applications

Residual heat removal systems in nuclear applications.

http://shop.ksb.com/catalog/k0/en/product/ES000331

Description

Control valve to DIN/EN based on standard type series BOA-Compact, BOA-

SuperCompact, BOA-W, BOA-Compact EKB, BOA-Compact IMS EKB, BOA-

Control IMS and BOA-Control IMS EKB, bonnetless pressure-retaining body, soft-

seated. Leakage rate selectable from 0.05 % to drop-tight, Kvs values between 6.3

and 700 m3/h and closing pressures of up to 16 bar. With intelligent

microprocessor-controlled and pre-set electric actuators providing actuating forces

from 1000 N to 14,000 N; electronic configuration of flow characteristic, Kvs value,

actuating signal and actuating time using PC tool or manual parameterisation unit.

Customised configuration can be implemented at the KSB factory on request.

Applications

Hot-water heating systems up to 120 °C. Ventilation and air-conditioning systems.

Water supply systems, drinking water. Not suitable for fluids containing mineral

oils, steam or fluids liable to attack EPDM and uncoated cast iron. Other fluids on

request.

http://shop.ksb.com/catalog/k0/en/product/ES000326

Control valves to DIN/EN

BOA-CVE C/CS/W/IMS/EKB/IMS EKB

T [°C]

6/10/16

15 - 200

≥ -10 - ≤ +120
