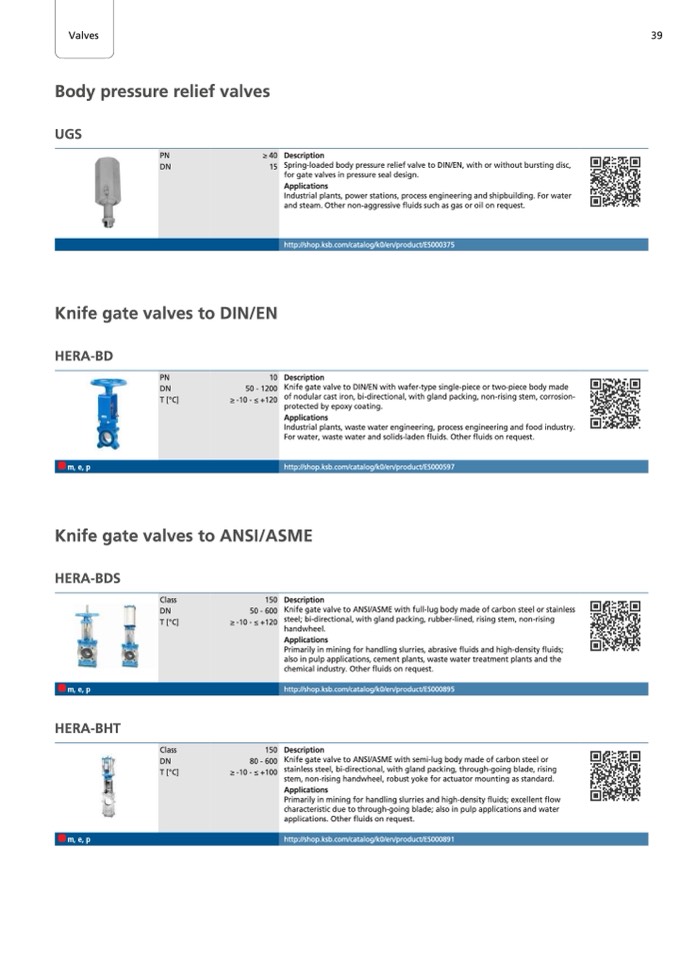

Valves
Valves
Body pressure relief valves
UGS
PN
≥ 40
DN
15
Knife gate valves to DIN/EN
HERA-BD
39
m, e, p
PN
DN
T [°C]
10
50 - 1200
≥ -10 - ≤ +120
Description
Spring-loaded body pressure relief valve to DIN/EN, with or without bursting disc,
for gate valves in pressure seal design.
Applications
Industrial plants, power stations, process engineering and shipbuilding. For water
and steam. Other non-aggressive fluids such as gas or oil on request.
http://shop.ksb.com/catalog/k0/en/product/ES000375
Description
Knife gate valve to DIN/EN with wafer-type single-piece or two-piece body made
of nodular cast iron, bi-directional, with gland packing, non-rising stem, corrosion-
protected by epoxy coating.
Applications
Industrial plants, waste water engineering, process engineering and food industry.
For water, waste water and solids-laden fluids. Other fluids on request.
http://shop.ksb.com/catalog/k0/en/product/ES000597
Knife gate valves to ANSI/ASME
HERA-BDS
m, e, p
HERA-BHT
m, e, p
Class
DN
T [°C]
Class
DN
T [°C]
150
50 - 600
≥ -10 - ≤ +120
150
80 - 600
≥ -10 - ≤ +100
Description
Knife gate valve to ANSI/ASME with full-lug body made of carbon steel or stainless
steel; bi-directional, with gland packing, rubber-lined, rising stem, non-rising
handwheel.
Applications
Primarily in mining for handling slurries, abrasive fluids and high-density fluids;
also in pulp applications, cement plants, waste water treatment plants and the
chemical industry. Other fluids on request.
http://shop.ksb.com/catalog/k0/en/product/ES000895
Description
Knife gate valve to ANSI/ASME with semi-lug body made of carbon steel or
stainless steel, bi-directional, with gland packing, through-going blade, rising
stem, non-rising handwheel, robust yoke for actuator mounting as standard.
Applications
Primarily in mining for handling slurries and high-density fluids; excellent flow
characteristic due to through-going blade; also in pulp applications and water
applications. Other fluids on request.
http://shop.ksb.com/catalog/k0/en/product/ES000891
