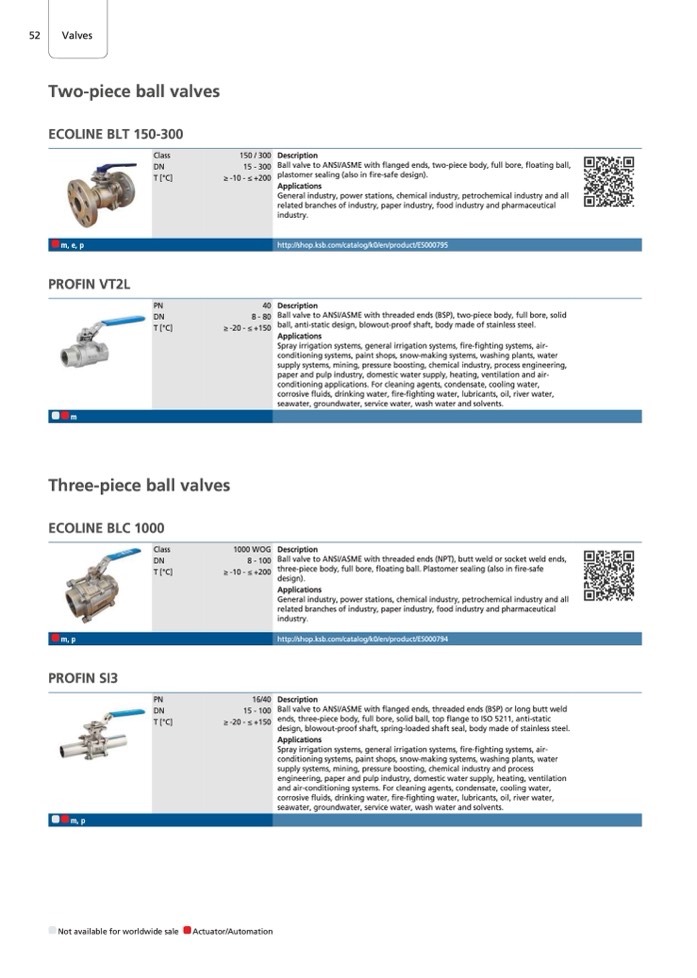

52
Valves
Valves
Two-piece ball valves
ECOLINE BLT 150-300
m, e, p
PROFIN VT2L
m
Class
DN
T [°C]
PN
DN
T [°C]
150 / 300
15 - 300
≥ -10 - ≤ +200
40
8 - 80
≥ -20 - ≤ +150
Description
Ball valve to ANSI/ASME with flanged ends, two-piece body, full bore, floating ball,
plastomer sealing (also in fire-safe design).
Applications
General industry, power stations, chemical industry, petrochemical industry and all
related branches of industry, paper industry, food industry and pharmaceutical
industry.
http://shop.ksb.com/catalog/k0/en/product/ES000795
Description
Ball valve to ANSI/ASME with threaded ends (BSP), two-piece body, full bore, solid
ball, anti-static design, blowout-proof shaft, body made of stainless steel.
Applications
Spray irrigation systems, general irrigation systems, fire-fighting systems, air-
conditioning systems, paint shops, snow-making systems, washing plants, water
supply systems, mining, pressure boosting, chemical industry, process engineering,
paper and pulp industry, domestic water supply, heating, ventilation and air-
conditioning applications. For cleaning agents, condensate, cooling water,
corrosive fluids, drinking water, fire-fighting water, lubricants, oil, river water,
seawater, groundwater, service water, wash water and solvents.
Description
Ball valve to ANSI/ASME with threaded ends (NPT), butt weld or socket weld ends,
three-piece body, full bore, floating ball. Plastomer sealing (also in fire-safe
design).
Applications
General industry, power stations, chemical industry, petrochemical industry and all
related branches of industry, paper industry, food industry and pharmaceutical
industry.
http://shop.ksb.com/catalog/k0/en/product/ES000794
Description
Ball valve to ANSI/ASME with flanged ends, threaded ends (BSP) or long butt weld
ends, three-piece body, full bore, solid ball, top flange to ISO 5211, anti-static
design, blowout-proof shaft, spring-loaded shaft seal, body made of stainless steel.
Applications
Spray irrigation systems, general irrigation systems, fire-fighting systems, air-
conditioning systems, paint shops, snow-making systems, washing plants, water
supply systems, mining, pressure boosting, chemical industry and process
engineering, paper and pulp industry, domestic water supply, heating, ventilation
and air-conditioning systems. For cleaning agents, condensate, cooling water,
corrosive fluids, drinking water, fire-fighting water, lubricants, oil, river water,
seawater, groundwater, service water, wash water and solvents.
Three-piece ball valves
ECOLINE BLC 1000
m, p
PROFIN SI3
m, p
Class
DN
T [°C]
PN
DN
T [°C]
1000 WOG
8 - 100
≥ -10 - ≤ +200
16/40
15 - 100
≥ -20 - ≤ +150
Not available for worldwide sale
Actuator/Automation
