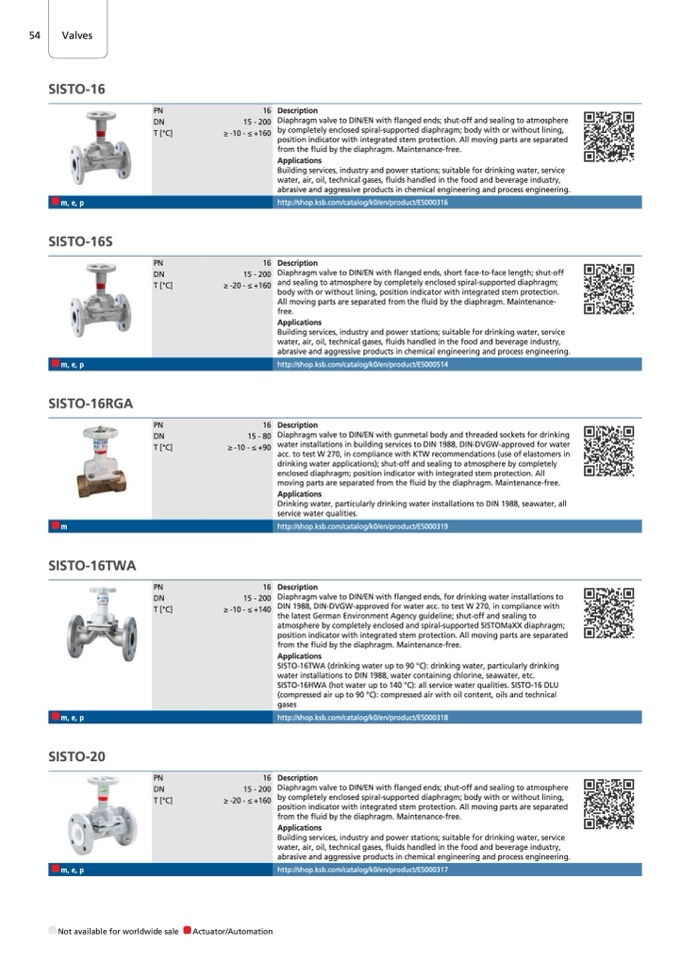

54
Valves
Valves
SISTO-16
m, e, p
SISTO-16S
m, e, p
SISTO-16RGA
m
SISTO-16TWA
m, e, p
SISTO-20
m, e, p
Not available for worldwide sale
Actuator/Automation
PN
DN
T [°C]
PN
DN
T [°C]
PN
DN
T [°C]
PN
DN
T [°C]
16
15 - 200
≥ -10 - ≤ +160
16
15 - 200
≥ -20 - ≤ +160
16
15 - 80
≥ -10 - ≤ +90
16
15 - 200
≥ -10 - ≤ +140
Description
Diaphragm valve to DIN/EN with flanged ends; shut-off and sealing to atmosphere
by completely enclosed spiral-supported diaphragm; body with or without lining,
position indicator with integrated stem protection. All moving parts are separated
from the fluid by the diaphragm. Maintenance-free.
Applications
Building services, industry and power stations; suitable for drinking water, service
water, air, oil, technical gases, fluids handled in the food and beverage industry,
abrasive and aggressive products in chemical engineering and process engineering.
http://shop.ksb.com/catalog/k0/en/product/ES000316
Description
Diaphragm valve to DIN/EN with flanged ends, short face-to-face length; shut-off
and sealing to atmosphere by completely enclosed spiral-supported diaphragm;
body with or without lining, position indicator with integrated stem protection.
All moving parts are separated from the fluid by the diaphragm. Maintenance-
free.
Applications
Building services, industry and power stations; suitable for drinking water, service
water, air, oil, technical gases, fluids handled in the food and beverage industry,
abrasive and aggressive products in chemical engineering and process engineering.
http://shop.ksb.com/catalog/k0/en/product/ES000514
Description
Diaphragm valve to DIN/EN with gunmetal body and threaded sockets for drinking
water installations in building services to DIN 1988, DIN-DVGW-approved for water
acc. to test W 270, in compliance with KTW recommendations (use of elastomers in
drinking water applications); shut-off and sealing to atmosphere by completely
enclosed diaphragm; position indicator with integrated stem protection. All
moving parts are separated from the fluid by the diaphragm. Maintenance-free.
Applications
Drinking water, particularly drinking water installations to DIN 1988, seawater, all
service water qualities.
http://shop.ksb.com/catalog/k0/en/product/ES000319
Description
Diaphragm valve to DIN/EN with flanged ends, for drinking water installations to
DIN 1988, DIN-DVGW-approved for water acc. to test W 270, in compliance with
the latest German Environment Agency guideline; shut-off and sealing to
atmosphere by completely enclosed and spiral-supported SISTOMaXX diaphragm;
position indicator with integrated stem protection. All moving parts are separated
from the fluid by the diaphragm. Maintenance-free.
Applications
SISTO-16TWA (drinking water up to 90 °C): drinking water, particularly drinking
water installations to DIN 1988, water containing chlorine, seawater, etc.
SISTO-16HWA (hot water up to 140 °C): all service water qualities. SISTO-16 DLU
(compressed air up to 90 °C): compressed air with oil content, oils and technical
gases
http://shop.ksb.com/catalog/k0/en/product/ES000318
Description
Diaphragm valve to DIN/EN with flanged ends; shut-off and sealing to atmosphere
by completely enclosed spiral-supported diaphragm; body with or without lining,
position indicator with integrated stem protection. All moving parts are separated
from the fluid by the diaphragm. Maintenance-free.
Applications
Building services, industry and power stations; suitable for drinking water, service
water, air, oil, technical gases, fluids handled in the food and beverage industry,
abrasive and aggressive products in chemical engineering and process engineering.
http://shop.ksb.com/catalog/k0/en/product/ES000317
PN
DN
T [°C]
16
15 - 200
≥ -20 - ≤ +160
