184_

box doccia 6 mm / 6 mm shower box

_185

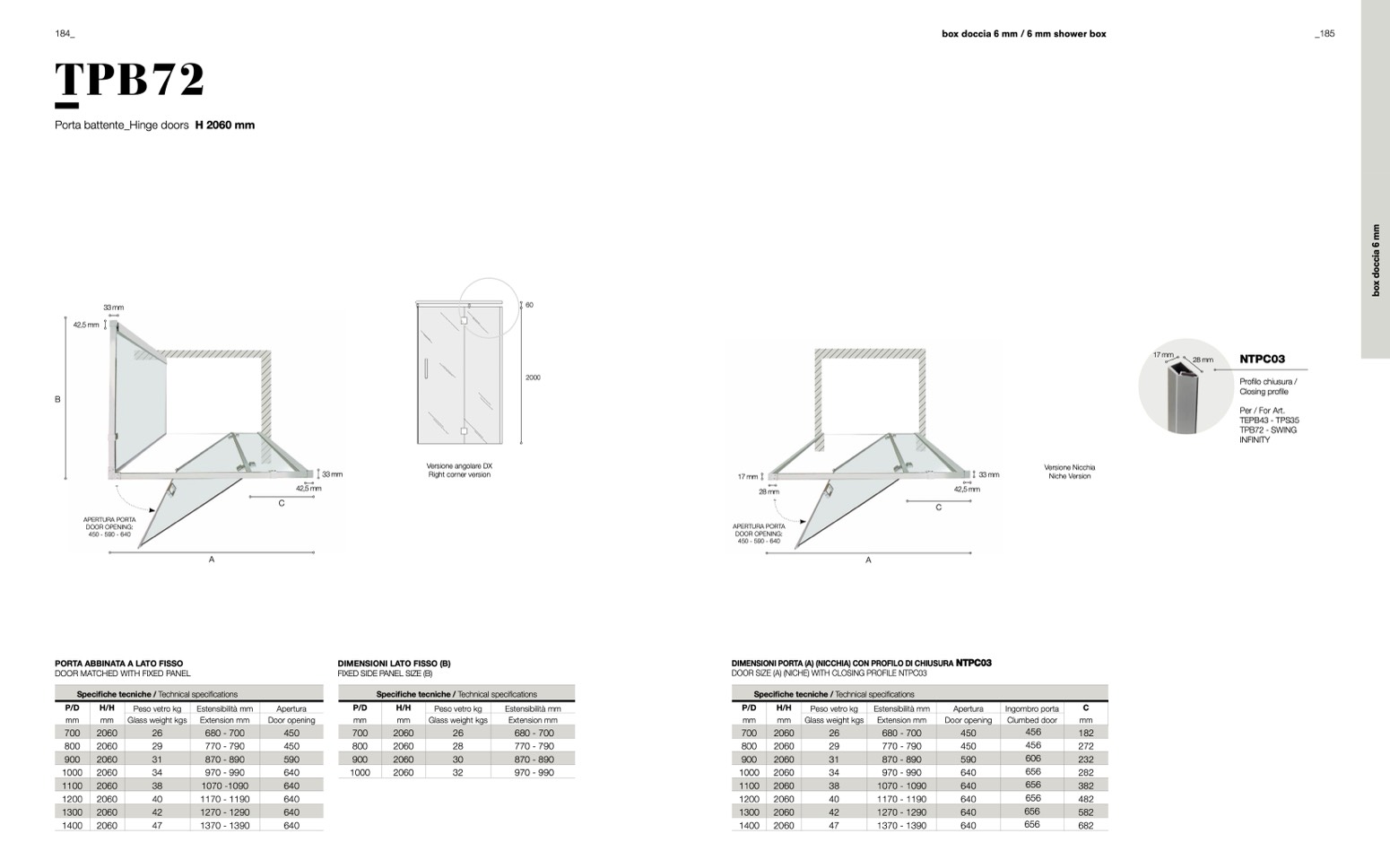

TPB72

Porta battente_Hinge doors H 2060 mm

33 mm

42,5 mm

B

60

2000

17 mm

28 mm

NTPC03

Profilo chiusura /

Closing profile

Per / For Art.

TEPB43 - TPS35

TPB72 - SWING

INFINITY

APERTURA PORTA

DOOR OPENING:

450 - 590 - 640

APERTURA PORTA

DOOR OPENING:

450 - 590 - 640

C

C

42,5 mm

28 mm

33 mm

Versione angolare DX

Right corner version

17 mm

33 mm

42,5 mm

Versione Nicchia

Niche Version

PORTA ABBINATA A LATO FISSO

DOOR MATCHED WITH FIXED PANEL

DIMENSIONI LATO FISSO (B)

FIXED SIDE PANEL SIZE (B)

DIMENSIONI PORTA (A) (NICCHIA) CON PROFILO DI CHIUSURA NTPC03

DOOR SIZE (A) (NICHE) WITH CLOSING PROFILE NTPC03

A

A

Specifiche tecniche / Technical speci

fications

Specifiche tecniche / Technical specifications

P/D

mm

800

1000

1200

1400

H/H

Peso vetro kg

mm Glass weight kgs

2060

29

2060

34

2060

40

2060

47

Estensibilità mm

Extension mm

770 - 790

970 - 990

1170 - 1190

1370 - 1390

Apertura

Door opening

450

640

640

640

P/D

mm

800

1000

H/H

mm

2060

2060

Peso vetro kg

Glass weight kgs

28

32

Estensibilità mm

Extension mm

770 - 790

970 - 990

P/D

H/H

Peso vetro kg

mm

mm Glass weight kgs

800 2060

29

1000 2060

34

1200 2060

40

1400 2060

47

Estensibilità mm

Extension mm

770 - 790

970 - 990

1170 - 1190

1370 - 1390

Apertura

Door opening

450

640

640

640

Ingombro porta

C

Clumbed door

mm

456

272

656

282

656

482

656

682

Specifiche tecniche / Technical specifications

700

2060

26

680 - 700

450

700

2060

26

680 - 700

700

2060

26

680 - 700

450

456

182

900

2060

31

870 - 890

590

900

2060

30

870 - 890

900

2060

31

870 - 890

590

606

232

1100

2060

38

1070 -1090

640

1100

2060

38

1070 - 1090

640

656

382

1300

2060

42

1270 - 1290

640

1300

2060

42

1270 - 1290

640

656

582
