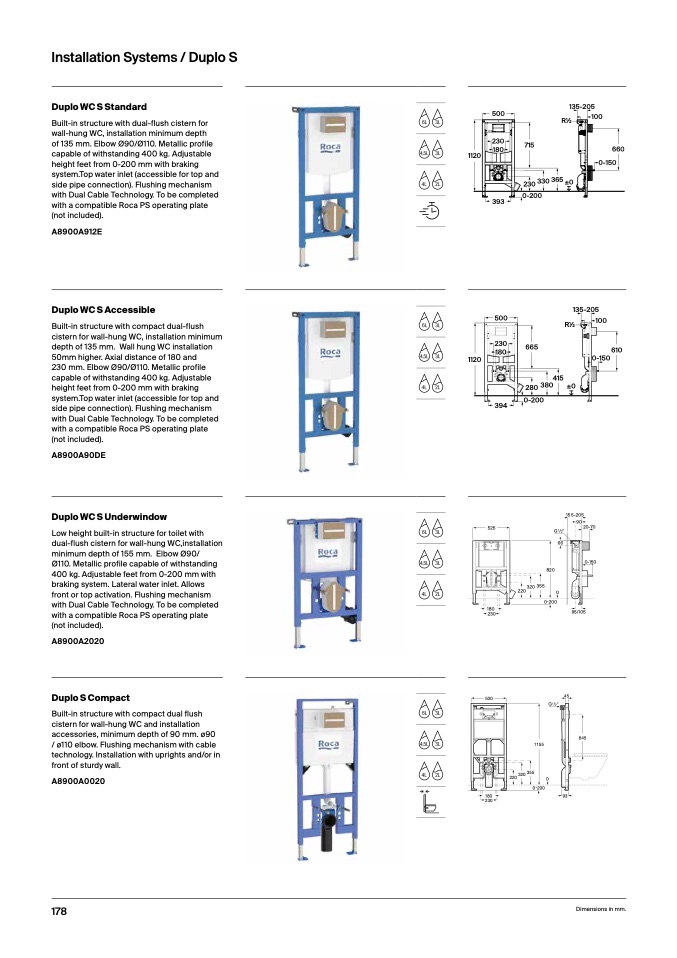

Installation Systems / Duplo
S
Duplo WC S Standar
d
Built-in structure with dual-flush cistern fo
r
wall-hung WC, installation minimum depth
of 135 mm. Elbow Ø90/Ø110. Metallic profile
capable of withstanding 400 kg. Adjustabl
e
height feet from 0-200 mm with braking
system.Top water inlet (accessible for top and
side pipe connection). Flushing mechanism
with Dual Cable Technology. To be complete
d
with a compatible Roca PS operating plat
e
(not included)
.
A8900A912
E
1120
Duplo WC S Accessibl
e
Built-in structure with compact dual-flush
cistern for wall-hung WC, installation minimu
m
depth of 135 mm. Wall hung WC installation
50mm higher. Axial distance of 180 and
230 mm. Elbow Ø90/Ø110. Metallic profile
capable of withstanding 400 kg. Adjustabl
e
height feet from 0-200 mm with braking
system.Top water inlet (accessible for top and
side pipe connection). Flushing mechanism
with Dual Cable Technology. To be complete
d
with a compatible Roca PS operating plat
e
(not included)
.
A8900A90DE
1120
Duplo WC S Underwindo
w
Low height built-in structure for toilet with
dual-flush cistern for wall-hung WC,installatio
n
minimum depth of 155 mm. Elbow Ø90
/
Ø110. Metallic profile capable of withstandin
g
400 kg. Adjustable feet from 0-200 mm wit
h
braking system. Lateral water inlet. Allows
front or top activation. Flushing mechanism
with Dual Cable Technology. To be complete
d
with a compatible Roca PS operating plat
e
(not included)
.
A8900A2020
Duplo S Compac
t
Built-in structure with compact dual flush
cistern for wall-hung WC and installation
accessories, minimum depth of 90 mm. ø9
0
/ ø110 elbow. Flushing mechanism with cable
technology. Installation with uprights and/or in
front of sturdy wall
.
A8900A0020
17
8
500
230 71
5
18
0
33
0 365
230
135-205
100
R
½
±
0
↧
660
0-15
0
0-200
39
3
50
0
135-20
5
100
23
0
180
66
5
41
5
280 38
0
R½
±0
↧
610
0-150
0-200
394
525
20-7
0
320
22
0
G 1 /2"
6
6
820
35
5
0
15 5-205
9
0
0-15
0
0-200
18
0
230
95/105
4
5
50
0
G 1/2
"
645
1155
35
5
320
22
0
0
0-20
0
180
230
9
3
Dimensions in mm.
