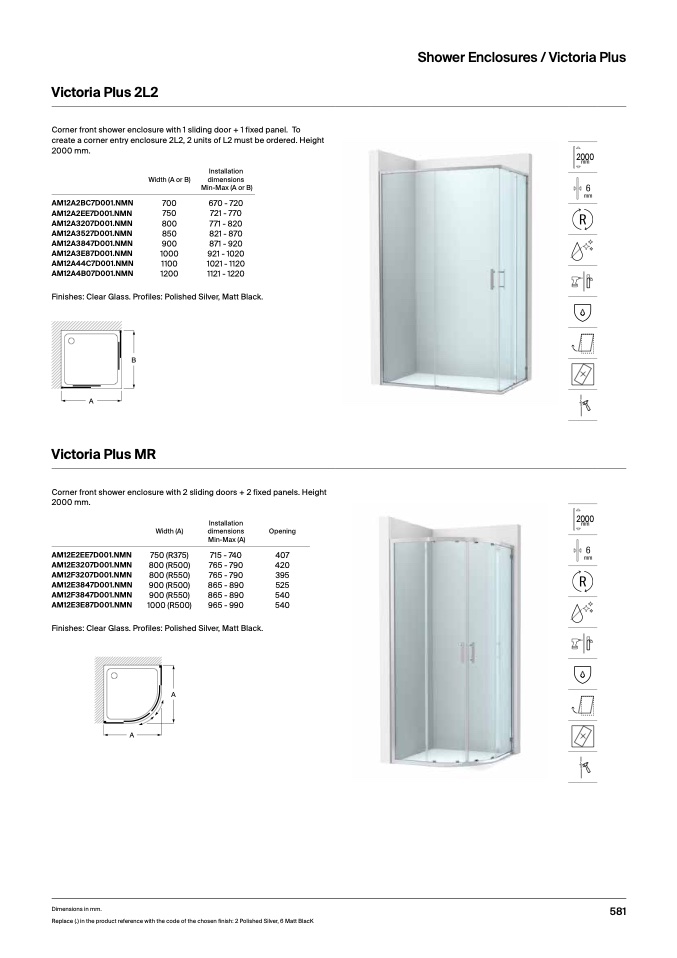

Shower Enclosures / Victoria Plu

s

Victoria Plus 2L2

Corner front shower enclosure with 1 sliding door + 1 fixed panel. T

o

create a corner entry enclosure 2L2, 2 units of L2 must be ordered. Heigh

t

2000 mm

.

2000

Width (A or B)

Installation

dimension

s

Min-Max (A or B)

AM12A2BC7D001.NMN

700

670 - 720

AM12A2EE7D001.NMN

750

721 - 77

0

AM12A3207D001.NMN

800

771 - 820

AM12A3527D001.NMN

850

821 - 87

0

AM12A3847D001.NMN

900

871 - 92

0

AM12A3E87D001.NMN

1000

921 - 1020

AM12A44C7D001.NMN

1100

1021 - 112

0

AM12A4B07D001.NMN

1200

1121 - 122

0

Finishes: Clear Glass. Profiles: Polished Silver, Matt Black.

B

A

Victoria Plus M

R

Corner front shower enclosure with 2 sliding doors + 2 fixed panels. Height

2000 mm

.

2000

Width (A)

Installation

dimension

s

Min-Max (A)

Openin

g

AM12E2EE7D001.NMN

750 (R375)

715 - 740

407

AM12E3207D001.NMN 800 (R500)

765 - 790

42

0

AM12F3207D001.NMN 800 (R550)

765 - 790

395

AM12E3847D001.NMN 900 (R500) 865 - 890

52

5

AM12F3847D001.NMN 900 (R550) 865 - 890

540

AM12E3E87D001.NMN 1000 (R500) 965 - 990

540

Finishes: Clear Glass. Profiles: Polished Silver, Matt Black.

A

A

Dimensions in mm.

Replace (.) in the product reference with the code of the chosen finish: 2 Polished Silver, 6 Matt BlacK
