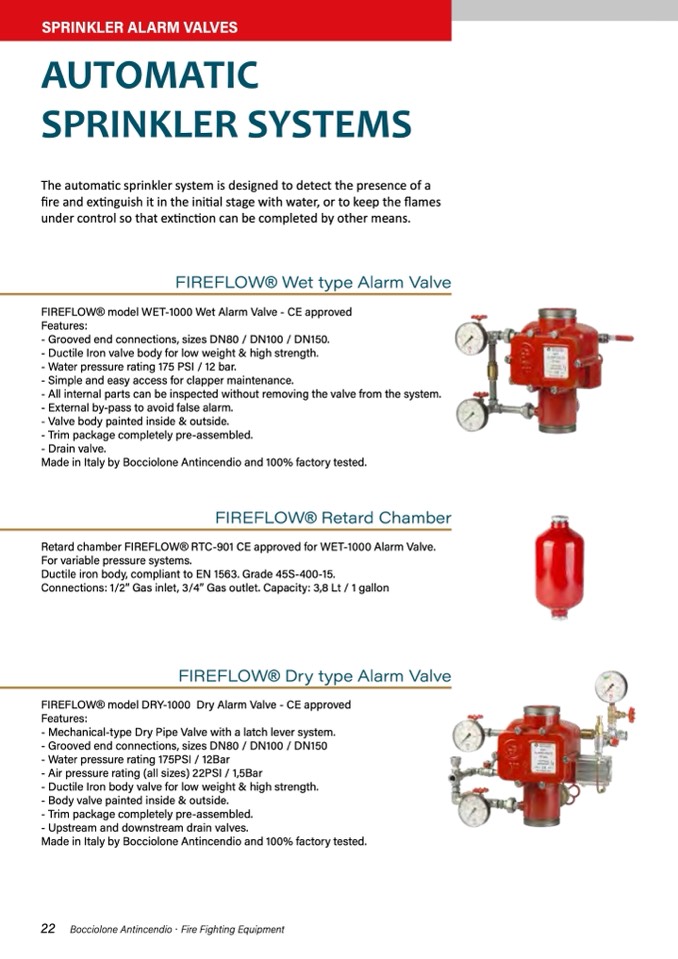

SPRINKLER ALARM VALVES

AUTOMATIC

SPRINKLER SYSTEMS

The automatic sprinkler system is designed to detect the presence of a

fire and extinguish it in the initial stage with water, or to keep the flames

under control so that extinction can be completed by other means.

FIREFLOW® Wet type Alarm Valve

FIREFLOW® model WET-1000 Wet Alarm Valve - CE approved

Features:

- Grooved end connections, sizes DN80 / DN100 / DN150.

- Ductile Iron valve body for low weight & high strength.

- Water pressure rating 175 PSI / 12 bar.

- Simple and easy access for clapper maintenance.

- All internal parts can be inspected without removing the valve from the system.

- External by-pass to avoid false alarm.

- Valve body painted inside & outside.

- Trim package completely pre-assembled.

- Drain valve.

Made in Italy by Bocciolone Antincendio and 100% factory tested.

FIREFLOW® Retard Chamber

Retard chamber FIREFLOW® RTC-901 CE approved for WET-1000 Alarm Valve.

For variable pressure systems.

Ductile iron body, compliant to EN 1563. Grade 45S-400-15.

Connections: 1/2” Gas inlet, 3/4” Gas outlet. Capacity: 3,8 Lt / 1 gallon

FIREFLOW® Dry type Alarm Valve

FIREFLOW® model DRY-1000 Dry Alarm Valve - CE approved

Features:

- Mechanical-type Dry Pipe Valve with a latch lever system.

- Grooved end connections, sizes DN80 / DN100 / DN150

- Water pressure rating 175PSI / 12Bar

- Air pressure rating (all sizes) 22PSI / 1,5Bar

- Ductile Iron body valve for low weight & high strength.

- Body valve painted inside & outside.

- Trim package completely pre-assembled.

- Upstream and downstream drain valves.

Made in Italy by Bocciolone Antincendio and 100% factory tested.
