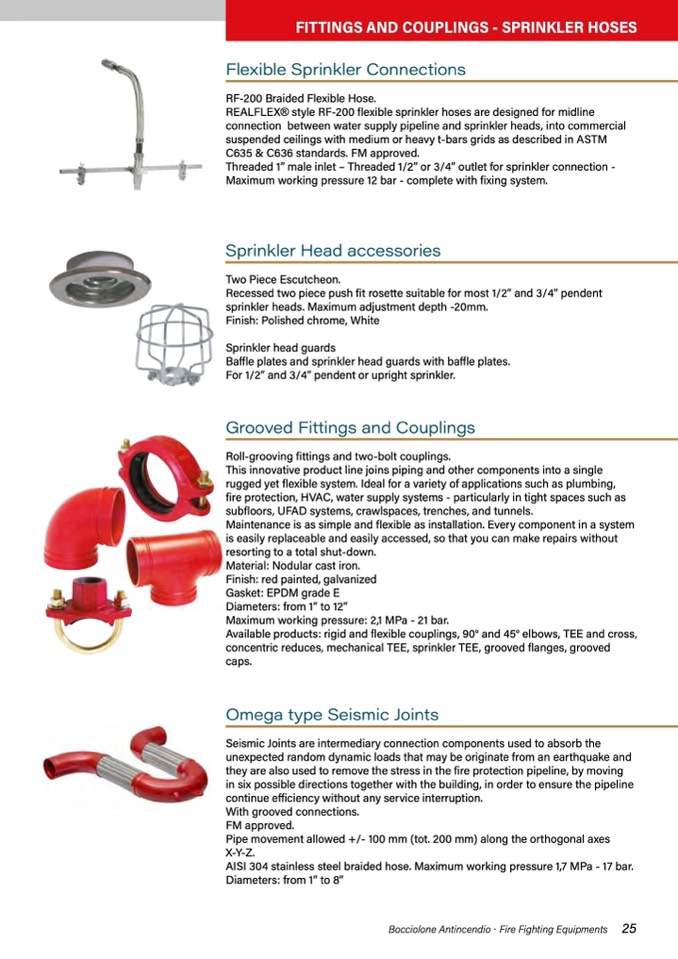

FITTINGS AND COUPLINGS - SPRINKLER HOSES

Flexible Sprinkler Connections

RF-200 Braided Flexible Hose.

REALFLEX® style RF-200 flexible sprinkler hoses are designed for midline

connection between water supply pipeline and sprinkler heads, into commercial

suspended ceilings with medium or heavy t-bars grids as described in ASTM

C635 & C636 standards. FM approved.

Threaded 1” male inlet – Threaded 1/2” or 3/4” outlet for sprinkler connection -

Maximum working pressure 12 bar - complete with fixing system.

Sprinkler Head accessories

Two Piece Escutcheon.

Recessed two piece push fit rosette suitable for most 1/2” and 3/4” pendent

sprinkler heads. Maximum adjustment depth -20mm.

Finish: Polished chrome, White

Sprinkler head guards

Baffle plates and sprinkler head guards with baffle plates.

For 1/2” and 3/4” pendent or upright sprinkler.

Grooved Fittings and Couplings

Roll-grooving fittings and two-bolt couplings.

This innovative product line joins piping and other components into a single

rugged yet flexible system. Ideal for a variety of applications such as plumbing,

fire protection, HVAC, water supply systems - particularly in tight spaces such as

subfloors, UFAD systems, crawlspaces, trenches, and tunnels.

Maintenance is as simple and flexible as installation. Every component in a system

is easily replaceable and easily accessed, so that you can make repairs without

resorting to a total shut-down.

Material: Nodular cast iron.

Finish: red painted, galvanized

Gasket: EPDM grade E

Diameters: from 1” to 12”

Maximum working pressure: 2,1 MPa - 21 bar.

Available products: rigid and flexible couplings, 90° and 45° elbows, TEE and cross,

concentric reduces, mechanical TEE, sprinkler TEE, grooved flanges, grooved

caps.

Omega type Seismic Joints

Seismic Joints are intermediary connection components used to absorb the

unexpected random dynamic loads that may be originate from an earthquake and

they are also used to remove the stress in the fire protection pipeline, by moving

in six possible directions together with the building, in order to ensure the pipeline

continue efficiency without any service interruption.

With grooved connections.

FM approved.

Pipe movement allowed +/- 100 mm (tot. 200 mm) along the orthogonal axes

X-Y-Z.

AISI 304 stainless steel braided hose. Maximum working pressure 1,7 MPa - 17 bar.

Diameters: from 1” to 8”
