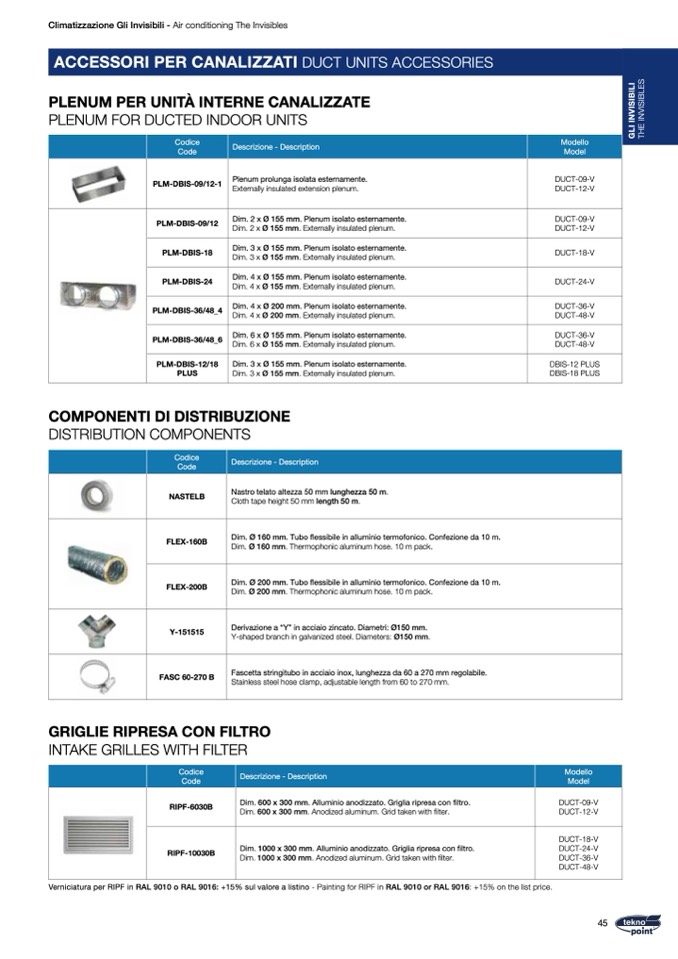

ACCESSORI PER CANALIZZATI DUCT UNITS ACCESSORIES

PLENUM PER UNITÀ INTERNE CANALIZZATE

PLENUM FOR DUCTED INDOOR UNITS

Codice

Code

Descrizione - Description

Modello

Model

PLM-DBIS-09/12-1

Plenum prolunga isolata esternamente.

Externally insulated extension plenum.

DUCT-09-V

DUCT-12-V

PLM-DBIS-09/12

Dim. 2 x Ø 155 mm. Plenum isolato esternamente.

Dim. 2 x Ø 155 mm. Externally insulated plenum.

DUCT-09-V

DUCT-12-V

PLM-DBIS-18

Dim. 3 x Ø 155 mm. Plenum isolato esternamente.

Dim. 3 x Ø 155 mm. Externally insulated plenum.

DUCT-18-V

PLM-DBIS-24

Dim. 4 x Ø 155 mm. Plenum isolato esternamente.

Dim. 4 x Ø 155 mm. Externally insulated plenum.

DUCT-24-V

PLM-DBIS-36/48_4

Dim. 4 x Ø 200 mm. Plenum isolato esternamente.

Dim. 4 x Ø 200 mm. Externally insulated plenum.

DUCT-36-V

DUCT-48-V

PLM-DBIS-36/48_6

Dim. 6 x Ø 155 mm. Plenum isolato esternamente.

Dim. 6 x Ø 155 mm. Externally insulated plenum.

DUCT-36-V

DUCT-48-V

PLM-DBIS-12/18

PLUS

Dim. 3 x Ø 155 mm. Plenum isolato esternamente.

Dim. 3 x Ø 155 mm. Externally insulated plenum.

DBIS-12 PLUS

DBIS-18 PLUS

COMPONENTI DI DISTRIBUZIONE

DISTRIBUTION COMPONENTS

GRIGLIE RIPRESA CON FILTRO

INTAKE GRILLES WITH FILTER

Codice

Code

Descrizione - Description

NASTELB

Nastro telato altezza 50 mm lunghezza 50 m.

Cloth tape height 50 mm length 50 m.

FLEX-160B

Dim. Ø 160 mm. Tubo

flessibile in alluminio termofonico. Confezione da 10 m.

Dim. Ø 160 mm. Thermophonic aluminum hose. 10 m pack.

FLEX-200B

Dim. Ø 200 mm. Tubo

flessibile in alluminio termofonico. Confezione da 10 m.

Dim. Ø 200 mm. Thermophonic aluminum hose. 10 m pack.

Y-151515

Derivazione a “Y” in acciaio zincato. Diametri: Ø150 mm.

Y-shaped branch in galvanized steel. Diameters: Ø150 mm.

FASC 60-270 B

Fascetta stringitubo in acciaio inox, lunghezza da 60 a 270 mm regolabile.

Stainless steel hose clamp, adjustable length from 60 to 270 mm.

Codice

Code

Descrizione - Description

Modello

Model

RIPF-6030B

Dim. 600 x 300 mm. Alluminio anodizzato. Griglia ripresa con filtro.

Dim. 600 x 300 mm. Anodized aluminum. Grid taken with filter.

DUCT-09-V

DUCT-12-V

RIPF-10030B

Dim. 1000 x 300 mm. Alluminio anodizzato. Griglia ripresa con

filtro.

Dim. 1000 x 300 mm. Anodized aluminum. Grid taken with

filter.

DUCT-18-V

DUCT-24-V

DUCT-36-V

DUCT-48-V

Verniciatura per RIPF in RAL 9010 o RAL 9016: +15% sul valore a listino - Painting for RIPF in RAL 9010 or RAL 9016: +15% on the list price.
