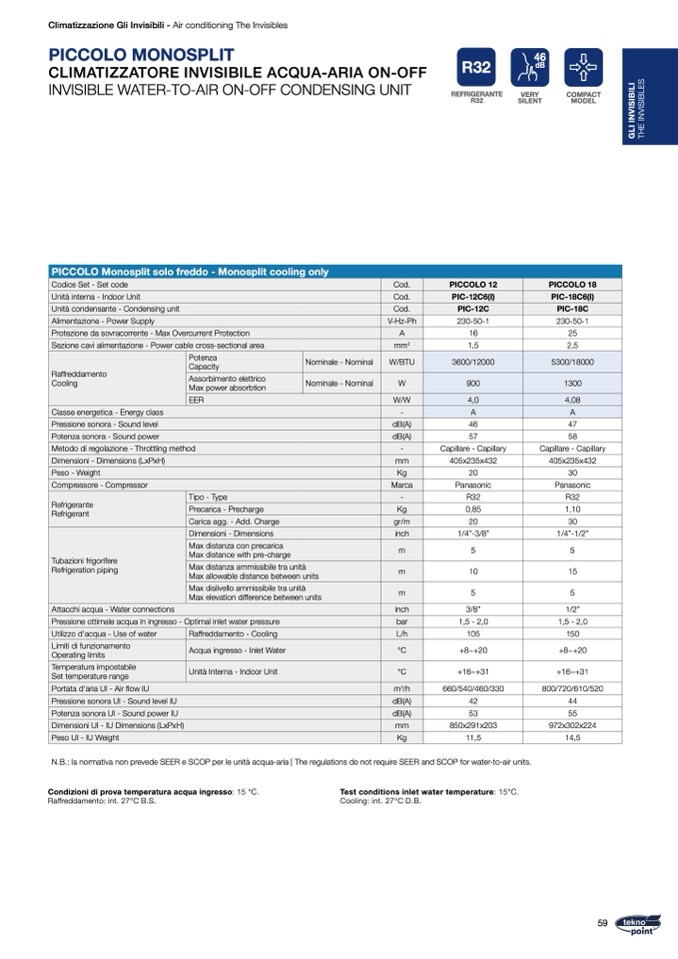

Climatizzazione Gli Invisibili - Air conditioning The Invisibles

PICCOLO MONOSPLIT

CLIMATIZZATORE INVISIBILE ACQUA-ARIA ON-OFF

INVISIBLE WATER-TO-AIR ON-OFF CONDENSING UNIT

R32

46

dB

R32

SILENT

REFRIGERANTE

VERY

COMPACT

MODEL

PICCOLO Monosplit solo freddo - Monosplit cooling only

Codice Set - Set code

Cod.

PICCOLO 12

PICCOLO 18

Unit

à interna - Indoor Unit

Cod.

PIC-12C6(I)

PIC-18C6(I)

Unit

à condensante - Condensing unit

Cod.

PIC-12C

PIC-18C

Alimentazione - Power Supply

V-Hz-Ph

230-50-1

230-50-1

Protezione da sovracorrente - Max Overcurrent Protection

Sezione cavi alimentazione - Power cable cross-sectional area

A

mm

2

16

1,5

25

2,5

Raffreddamento

Cooling

Potenza

Capacity

Nominale - Nominal

W/BTU

3600/12000

5300/18000

Assorbimento elettrico

Max power absorbtion

Nominale - Nominal

W

900

1300

EER

W/W

4,0

4,08

Classe energetica - Energy class

-

A

A

Pressione sonora - Sound level

dB(A)

46

47

Potenza sonora - Sound power

dB(A)

57

58

Metodo di regolazione - Throttling method

-

Capillare - Capillary

Capillare - Capillary

Dimensioni - Dimensions (LxPxH)

mm

405x235x432

405x235x432

Peso - Weight

Kg

20

30

Compressore - Compressor

Marca

Panasonic

Panasonic

Refrigerante

Refrigerant

Tipo - Type

-

R32

R32

Precarica - Precharge

Kg

0,85

1,10

Carica agg. - Add. Charge

gr/m

20

30

Tubazioni frigorifere

Refrigeration piping

Dimensioni - Dimensions

inch

1/4”-3/8”

1/4”-1/2”

Max distanza con precarica

Max distance with pre-charge

m

5

5

Max distanza ammissibile tra unità

Max allowable distance between units

m

10

15

Max dislivello ammissibile tra unità

Max elevation difference between units

m

5

5

Attacchi acqua - Water connections

inch

3/8”

1/2”

Pressione ottimale acqua in ingresso - Optimal inlet water pressure

bar

1,5 - 2,0

1,5 - 2,0

Utilizzo d’acqua - Use of water

Raffreddamento - Cooling

L/h

105

150

Limiti di funzionamento

Operating limits

Acqua ingresso - Inlet Water

°C

+8~+20

+8~+20

Temperatura impostabile

Set temperature range

Unità Interna - Indoor Unit

°C

+16~+31

+16~+31

Portata d’aria UI - Air flow IU

m

3

/h

660/540/460/330

800/720/610/520

Pressione sonora UI - Sound level IU

dB(A)

42

44

Potenza sonora UI - Sound power IU

dB(A)

53

55

Dimensioni UI - IU Dimensions (LxPxH)

mm

850x291x203

972x302x224

Peso UI - IU Weight

Kg

11,5

14,5

N.B.: la normativa non prevede SEER e SCOP per le unità acqua-aria | The regulations do not require SEER and SCOP for water-to-air units.

Condizioni di prova temperatura acqua ingresso: 15 °C.

Raffreddamento: int. 27°C B.S.

Test conditions inlet water temperature: 15°C.

Cooling: int. 27°C D.B.
