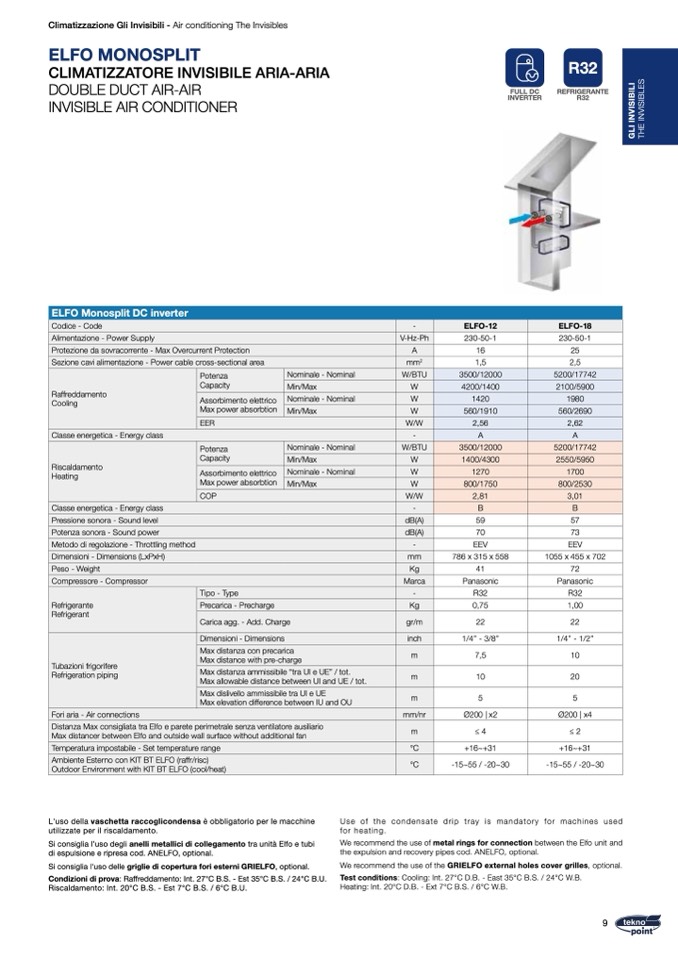

Climatizzazione Gli Invisibili - Air conditioning The Invisibles

ELFO MONOSPLIT

CLIMATIZZATORE INVISIBILE ARIA-ARIA

DOUBLE DUCT AIR-AIR

INVISIBLE AIR CONDITIONER

FULL DC

INVERTER

R32

REFRIGERANTE

R32

ELFO Monosplit DC inverter

Codice - Code

-

ELFO-12

ELFO-18

Alimentazione - Power Supply

V-Hz-Ph

230-50-1

230-50-1

Protezione da sovracorrente - Max Overcurrent Protection

Sezione cavi alimentazione - Power cable cross-sectional area

A

mm

2

16

1,5

25

2,5

Raffreddamento

Cooling

Potenza

Capacity

Nominale - Nominal

W/BTU

3500/12000

5200/17742

Min/Max

W

4200/1400

2100/5900

Assorbimento elettrico

Max power absorbtion

Nominale - Nominal

W

1420

1980

Min/Max

W

560/1910

560/2690

EER

W/W

2,56

2,62

Classe energetica - Energy class

-

A

A

Riscaldamento

Heating

Potenza

Capacity

Nominale - Nominal

W/BTU

3500/12000

5200/17742

Min/Max

W

1400/4300

2550/5950

Assorbimento elettrico

Max power absorbtion

Nominale - Nominal

W

1270

1700

Min/Max

W

800/1750

800/2530

COP

W/W

2,81

3,01

Classe energetica - Energy class

-

B

B

Pressione sonora - Sound level

dB(A)

59

57

Potenza sonora - Sound power

dB(A)

70

73

Metodo di regolazione - Throttling method

-

EEV

EEV

Dimensioni - Dimensions (LxPxH)

mm

786 x 315 x 558

1055 x 455 x 702

Peso - Weight

Kg

41

72

Compressore - Compressor

Marca

Panasonic

Panasonic

Refrigerante

Refrigerant

Tipo - Type

-

R32

R32

Precarica - Precharge

Kg

0,75

1,00

Carica agg. - Add. Charge

gr/m

22

22

Tubazioni frigorifere

Refrigeration piping

Dimensioni - Dimensions

inch

1/4’’ - 3/8’’

1/4’’ - 1/2’’

Max distanza con precarica

Max distance with pre-charge

m

7,5

10

Max distanza ammissibile “tra UI e UE” / tot.

Max allowable distance between UI and UE / tot.

m

10

20

Max dislivello ammissibile tra UI e UE

Max elevation difference between IU and OU

m

5

5

Fori aria - Air connections

mm/nr

Ø200 | x2

Ø200 | x4

Distanza Max consigliata tra Elfo e parete perimetrale senza ventilatore ausiliario

Max distancer between Elfo and outside wall surface without additional fan

m

≤4

≤2

Temperatura impostabile - Set temperature range

°C

+16~+31

+16~+31

Ambiente Esterno con KIT BT ELFO (raffr/risc)

Outdoor Environment with KIT BT ELFO (cool/heat)

°C

-15~55 / -20~30

-15~55 / -20~30

L'uso della vaschetta raccoglicondensa è obbligatorio per le macchine

utilizzate per il riscaldamento.

Si consiglia l’uso degli anelli metallici di collegamento tra unit

à Elfo e tubi

di espulsione e ripresa cod. ANELFO, optional.

Si consiglia l'uso delle griglie di copertura fori esterni GRIELFO, optional.

Condizioni di prova: Raffreddamento: Int. 27°C B.S. - Est 35°C B.S. / 24°C B.U.

Riscaldamento: Int. 20°C B.S. - Est 7°C B.S. / 6°C B.U.

Use

for heating.

condensate

drip

tray is

mandatory

for

machines used

of

the

We recommend the use of metal rings for connection between the Elfo unit and

the expulsion and recovery pipes cod. ANELFO, optional.

We recommend the use of the GRIELFO external holes cover grilles, optional.

Test conditions: Cooling: Int. 27°C D.B. - East 35°C B.S. / 24°C W.B.

Heating: Int. 20°C D.B. - Ext 7°C B.S. / 6°C W.B.
