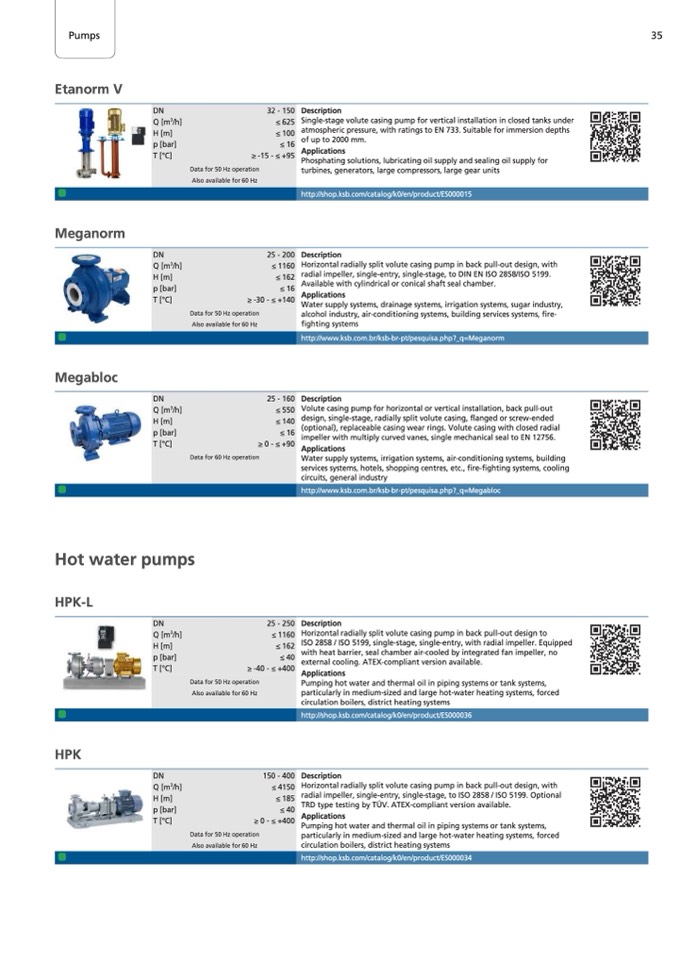

Pumps
Pumps
Etanorm V
Meganorm
Megabloc
35
Hot water pumps
HPK-L
DN
Q [m
3
/h]
H [m]
p [bar]
T [°C]
DN
Q [m
3
/h]
H [m]
p [bar]
T [°C]
HPK
25 - 250
≤ 1160
≤ 162
≤ 40
≥ -40 - ≤ +400
Data for 50 Hz operation
Also available for 60 Hz
150 - 400
≤ 4150
≤ 185
≤ 40
≥ 0 - ≤ +400
Data for 50 Hz operation
Also available for 60 Hz
DN
Q [m
3
/h]
H [m]
p [bar]
T [°C]
DN
Q [m
3
/h]
H [m]
p [bar]
T [°C]
DN
Q [m
3
/h]
H [m]
p [bar]
T [°C]
32 - 150
≤ 625
≤ 100
≤ 16
≥ -15 - ≤ +95
Data for 50 Hz operation
Also available for 60 Hz
25 - 200
≤ 1160
≤ 162
≤ 16
≥ -30 - ≤ +140
Data for 50 Hz operation
Also available for 60 Hz
25 - 160
≤ 550
≤ 140
≤ 16
≥ 0 - ≤ +90
Data for 60 Hz operation
Description
Single-stage volute casing pump for vertical installation in closed tanks under
atmospheric pressure, with ratings to EN 733. Suitable for immersion depths
of up to 2000 mm.
Applications
Phosphating solutions, lubricating oil supply and sealing oil supply for
turbines, generators, large compressors, large gear units
http://shop.ksb.com/catalog/k0/en/product/ES000015
Description
Horizontal radially split volute casing pump in back pull-out design, with
radial impeller, single-entry, single-stage, to DIN EN ISO 2858/ISO 5199.
Available with cylindrical or conical shaft seal chamber.
Applications
Water supply systems, drainage systems, irrigation systems, sugar industry,
alcohol industry, air-conditioning systems, building services systems, fire-
fighting systems
http://www.ksb.com.br/ksb-br-pt/pesquisa.php?_q=Meganorm
Description
Volute casing pump for horizontal or vertical installation, back pull-out
design, single-stage, radially split volute casing, flanged or screw-ended
(optional), replaceable casing wear rings. Volute casing with closed radial
impeller with multiply curved vanes, single mechanical seal to EN 12756.
Applications
Water supply systems, irrigation systems, air-conditioning systems, building
services systems, hotels, shopping centres, etc., fire-fighting systems, cooling
circuits, general industry
http://www.ksb.com.br/ksb-br-pt/pesquisa.php?_q=Megabloc
Description
Horizontal radially split volute casing pump in back pull-out design to
ISO 2858 / ISO 5199, single-stage, single-entry, with radial impeller. Equipped
with heat barrier, seal chamber air-cooled by integrated fan impeller, no
external cooling. ATEX-compliant version available.
Applications
Pumping hot water and thermal oil in piping systems or tank systems,
particularly in medium-sized and large hot-water heating systems, forced
circulation boilers, district heating systems
http://shop.ksb.com/catalog/k0/en/product/ES000036
Description
Horizontal radially split volute casing pump in back pull-out design, with
radial impeller, single-entry, single-stage, to ISO 2858 / ISO 5199. Optional
TRD type testing by TÜV. ATEX-compliant version available.
Applications
Pumping hot water and thermal oil in piping systems or tank systems,
particularly in medium-sized and large hot-water heating systems, forced
circulation boilers, district heating systems
http://shop.ksb.com/catalog/k0/en/product/ES000034
