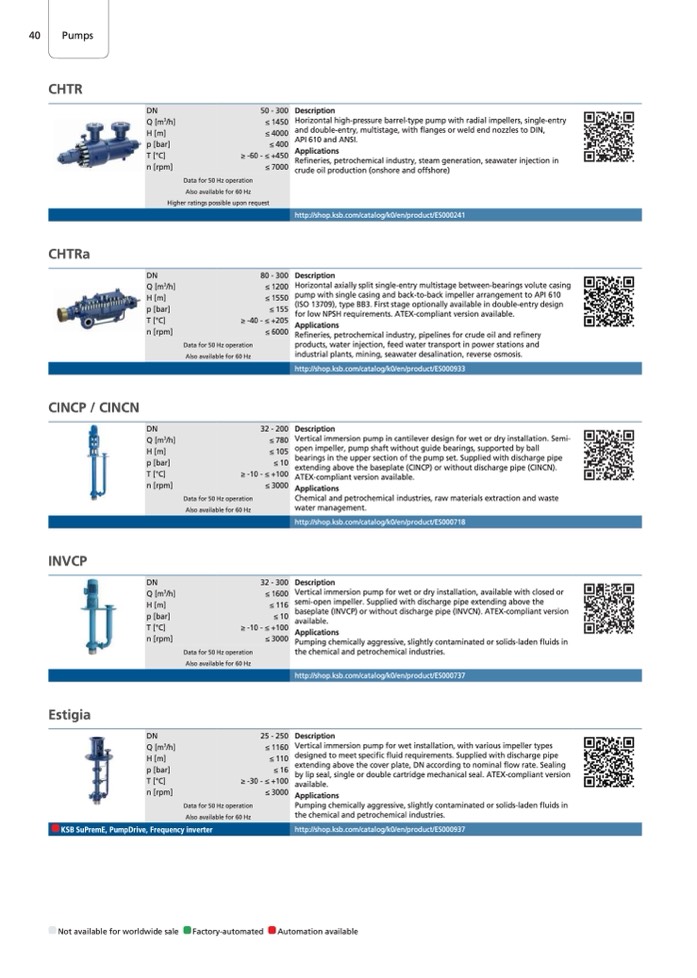

40
Pumps
Pumps
CHTR
CHTRa
CINCP / CINCN
INVCP
Estigia
DN
Q [m
3
/h]
H [m]
p [bar]
T [°C]
n [rpm]
DN
Q [m
3
/h]
H [m]
p [bar]
T [°C]
n [rpm]
DN
Q [m
3
/h]
H [m]
p [bar]
T [°C]
n [rpm]
DN
Q [m
3
/h]
H [m]
p [bar]
T [°C]
n [rpm]
≥ -40
Data for 50 Hz operation
Also available for 60 Hz
≥ -10
Data for 50 Hz operation
Also available for 60 Hz
≥ -10
Data for 50 Hz operation
Also available for 60 Hz
≥ -30
Data for 50 Hz operation
Also available for 60 Hz
80 - 300
≤ 1200
≤ 1550
≤ 155
- ≤ +205
≤ 6000
32 - 200
≤ 780
≤ 105
≤ 10
- ≤ +100
≤ 3000
32 - 300
≤ 1600
≤ 116
≤ 10
- ≤ +100
≤ 3000
25 - 250
≤ 1160
≤ 110
≤ 16
- ≤ +100
≤ 3000
KSB SuPremE, PumpDrive, Frequency inverter
DN
Q [m
3
/h]
H [m]
p [bar]
T [°C]
n [rpm]
50 - 300
≤ 1450
≤ 4000
≤ 400
≥ -60 - ≤ +450
≤ 7000
Description
Horizontal high-pressure barrel-type pump with radial impellers, single-entry
and double-entry, multistage, with flanges or weld end nozzles to DIN,
API 610 and ANSI.
Applications
Refineries, petrochemical industry, steam generation, seawater injection in
crude oil production (onshore and offshore)
http://shop.ksb.com/catalog/k0/en/product/ES000241
Description
Horizontal axially split single-entry multistage between-bearings volute casing
pump with single casing and back-to-back impeller arrangement to API 610
(ISO 13709), type BB3. First stage optionally available in double-entry design
for low NPSH requirements. ATEX-compliant version available.
Applications
Refineries, petrochemical industry, pipelines for crude oil and refinery
products, water injection, feed water transport in power stations and
industrial plants, mining, seawater desalination, reverse osmosis.
http://shop.ksb.com/catalog/k0/en/product/ES000933
Description
Vertical immersion pump in cantilever design for wet or dry installation. Semi-
open impeller, pump shaft without guide bearings, supported by ball
bearings in the upper section of the pump set. Supplied with discharge pipe
extending above the baseplate (CINCP) or without discharge pipe (CINCN).
ATEX-compliant version available.
Applications
Chemical and petrochemical industries, raw materials extraction and waste
water management.
http://shop.ksb.com/catalog/k0/en/product/ES000718
Description
Vertical immersion pump for wet or dry installation, available with closed or
semi-open impeller. Supplied with discharge pipe extending above the
baseplate (INVCP) or without discharge pipe (INVCN). ATEX-compliant version
available.
Applications
Pumping chemically aggressive, slightly contaminated or solids-laden fluids in
the chemical and petrochemical industries.
http://shop.ksb.com/catalog/k0/en/product/ES000737
Description
Vertical immersion pump for wet installation, with various impeller types
designed to meet specific fluid requirements. Supplied with discharge pipe
extending above the cover plate, DN according to nominal flow rate. Sealing
by lip seal, single or double cartridge mechanical seal. ATEX-compliant version
available.
Applications
Pumping chemically aggressive, slightly contaminated or solids-laden fluids in
the chemical and petrochemical industries.
http://shop.ksb.com/catalog/k0/en/product/ES000937
Not available for worldwide sale
Factory-automated
Automation available
Data for 50 Hz operation
Also available for 60 Hz
Higher ratings possible upon request
