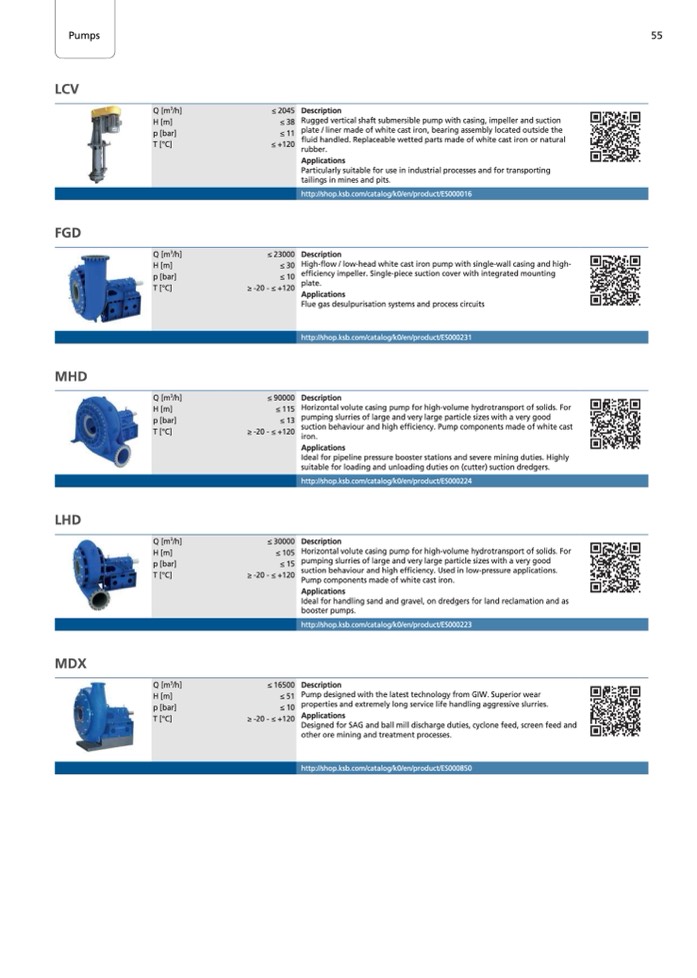

Pumps
Pumps
LCV
FGD
MHD
LHD
MDX
55
Q [m
3
/h]
H [m]
p [bar]
T [°C]
Q [m
3
/h]
H [m]
p [bar]
T [°C]
Q [m
3
/h]
H [m]
p [bar]
T [°C]
Q [m
3
/h]
H [m]
p [bar]
T [°C]
Q [m
3
/h]
H [m]
p [bar]
T [°C]
≤ 2045
≤ 38
≤ 11
≤ +120
≤ 23000
≤ 30
≤ 10
≥ -20 - ≤ +120
≤ 90000
≤ 115
≤ 13
≥ -20 - ≤ +120
≤ 30000
≤ 105
≤ 15
≥ -20 - ≤ +120
≤ 16500
≤ 51
≤ 10
≥ -20 - ≤ +120
Description
Rugged vertical shaft submersible pump with casing, impeller and suction
plate / liner made of white cast iron, bearing assembly located outside the
fluid handled. Replaceable wetted parts made of white cast iron or natural
rubber.
Applications
Particularly suitable for use in industrial processes and for transporting
tailings in mines and pits.
http://shop.ksb.com/catalog/k0/en/product/ES000016
Description
High-flow / low-head white cast iron pump with single-wall casing and high-
efficiency impeller. Single-piece suction cover with integrated mounting
plate.
Applications
Flue gas desulpurisation systems and process circuits
http://shop.ksb.com/catalog/k0/en/product/ES000231
Description
Horizontal volute casing pump for high-volume hydrotransport of solids. For
pumping slurries of large and very large particle sizes with a very good
suction behaviour and high efficiency. Pump components made of white cast
iron.
Applications
Ideal for pipeline pressure booster stations and severe mining duties. Highly
suitable for loading and unloading duties on (cutter) suction dredgers.
http://shop.ksb.com/catalog/k0/en/product/ES000224
Description
Horizontal volute casing pump for high-volume hydrotransport of solids. For
pumping slurries of large and very large particle sizes with a very good
suction behaviour and high efficiency. Used in low-pressure applications.
Pump components made of white cast iron.
Applications
Ideal for handling sand and gravel, on dredgers for land reclamation and as
booster pumps.
http://shop.ksb.com/catalog/k0/en/product/ES000223
Description
Pump designed with the latest technology from GIW. Superior wear
properties and extremely long service life handling aggressive slurries.
Applications
Designed for SAG and ball mill discharge duties, cyclone feed, screen feed and
other ore mining and treatment processes.
http://shop.ksb.com/catalog/k0/en/product/ES000850
