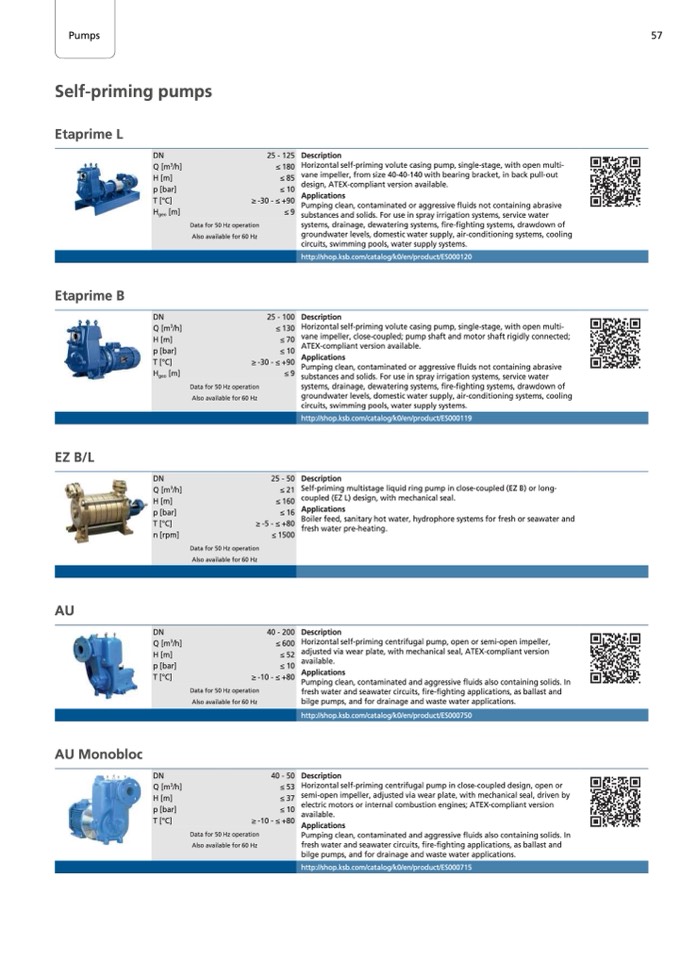

Pumps
Pumps
Self-priming pumps
Etaprime L
DN
Q [m
3
/h]
H [m]
p [bar]
T [°C]
H
geo
[m]
DN
Q [m
3
/h]
H [m]
p [bar]
T [°C]
H
geo
[m]
DN
Q [m
3
/h]
H [m]
p [bar]
T [°C]
n [rpm]
DN
Q [m
3
/h]
H [m]
p [bar]
T [°C]
DN
Q [m
3
/h]
H [m]
p [bar]
T [°C]
57
Etaprime B
Data for 50 Hz operation
Also available for 60 Hz
≥ -30
Data for 50 Hz operation
Also available for 60 Hz
≥ -5
Data for 50 Hz operation
Also available for 60 Hz
EZ B/L
AU
AU Monobloc
25 - 50
≤ 21
≤ 160
≤ 16
- ≤ +80
≤ 1500
≥ -10
Data for 50 Hz operation
Also available for 60 Hz
≥ -10
Data for 50 Hz operation
Also available for 60 Hz
40 - 50
≤ 53
≤ 37
≤ 10
- ≤ +80
25 - 125
≤ 180
≤ 85
≤ 10
≥ -30 - ≤ +90
≤9
Description
Horizontal self-priming volute casing pump, single-stage, with open multi-
vane impeller, from size 40-40-140 with bearing bracket, in back pull-out
design, ATEX-compliant version available.
Applications
Pumping clean, contaminated or aggressive fluids not containing abrasive
substances and solids. For use in spray irrigation systems, service water
systems, drainage, dewatering systems, fire-fighting systems, drawdown of
groundwater levels, domestic water supply, air-conditioning systems, cooling
circuits, swimming pools, water supply systems.
http://shop.ksb.com/catalog/k0/en/product/ES000120
Description
Horizontal self-priming volute casing pump, single-stage, with open multi-
vane impeller, close-coupled; pump shaft and motor shaft rigidly connected;
ATEX-compliant version available.
Applications
Pumping clean, contaminated or aggressive fluids not containing abrasive
substances and solids. For use in spray irrigation systems, service water
systems, drainage, dewatering systems, fire-fighting systems, drawdown of
groundwater levels, domestic water supply, air-conditioning systems, cooling
circuits, swimming pools, water supply systems.
http://shop.ksb.com/catalog/k0/en/product/ES000119
Description
Self-priming multistage liquid ring pump in close-coupled (EZ B) or long-
coupled (EZ L) design, with mechanical seal.
Applications
Boiler feed, sanitary hot water, hydrophore systems for fresh or seawater and
fresh water pre-heating.
Description
Horizontal self-priming centrifugal pump, open or semi-open impeller,
adjusted via wear plate, with mechanical seal, ATEX-compliant version
available.
Applications
Pumping clean, contaminated and aggressive fluids also containing solids. In
fresh water and seawater circuits, fire-fighting applications, as ballast and
bilge pumps, and for drainage and waste water applications.
http://shop.ksb.com/catalog/k0/en/product/ES000750
Description
Horizontal self-priming centrifugal pump in close-coupled design, open or
semi-open impeller, adjusted via wear plate, with mechanical seal, driven by
electric motors or internal combustion engines; ATEX-compliant version
available.
Applications
Pumping clean, contaminated and aggressive fluids also containing solids. In
fresh water and seawater circuits, fire-fighting applications, as ballast and
bilge pumps, and for drainage and waste water applications.
http://shop.ksb.com/catalog/k0/en/product/ES000715
25 - 100
≤ 130
≤ 70
≤ 10
- ≤ +90
≤9
40 - 200
≤ 600
≤ 52
≤ 10
- ≤ +80
