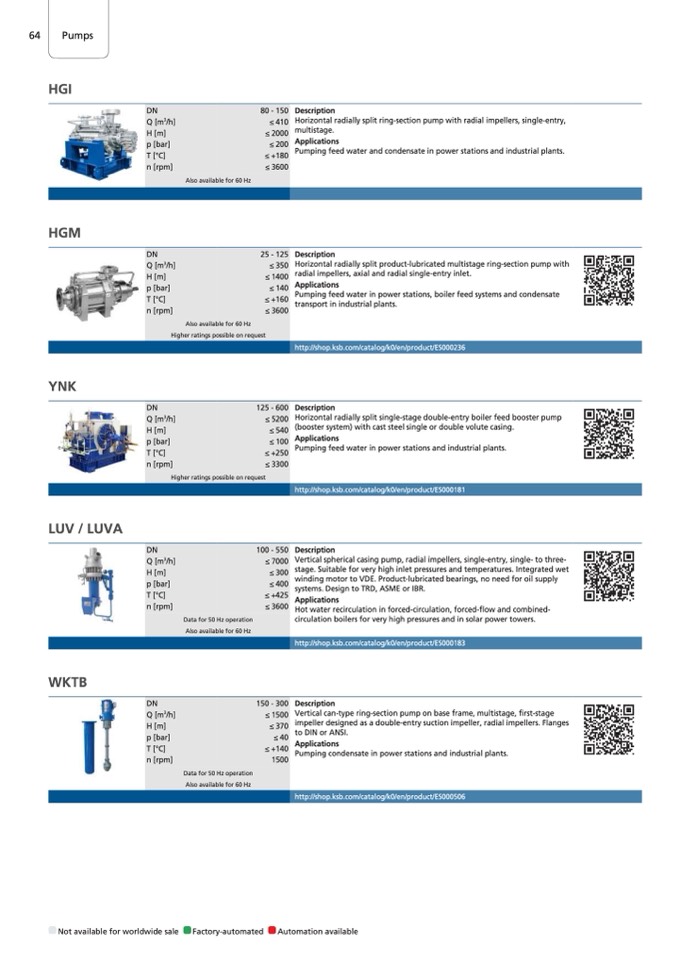

64

Pumps

Pumps

HGI

HGM

YNK

LUV / LUVA

WKTB

Not available for worldwide sale

Factory-automated

Automation available

DN

Q [m

3

/h]

H [m]

p [bar]

T [°C]

n [rpm]

DN

Q [m

3

/h]

H [m]

p [bar]

T [°C]

n [rpm]

Also available for 60 Hz

80 - 150

≤ 410

≤ 2000

≤ 200

≤ +180

≤ 3600

25 - 125

≤ 350

≤ 1400

≤ 140

≤ +160

≤ 3600

Description

Horizontal radially split ring-section pump with radial impellers, single-entry,

multistage.

Applications

Pumping feed water and condensate in power stations and industrial plants.

Description

Horizontal radially split product-lubricated multistage ring-section pump with

radial impellers, axial and radial single-entry inlet.

Applications

Pumping feed water in power stations, boiler feed systems and condensate

transport in industrial plants.

http://shop.ksb.com/catalog/k0/en/product/ES000236

Description

Horizontal radially split single-stage double-entry boiler feed booster pump

(booster system) with cast steel single or double volute casing.

Applications

Pumping feed water in power stations and industrial plants.

http://shop.ksb.com/catalog/k0/en/product/ES000181

Description

Vertical spherical casing pump, radial impellers, single-entry, single- to three-

stage. Suitable for very high inlet pressures and temperatures. Integrated wet

winding motor to VDE. Product-lubricated bearings, no need for oil supply

systems. Design to TRD, ASME or IBR.

Applications

Hot water recirculation in forced-circulation, forced-flow and combined-

circulation boilers for very high pressures and in solar power towers.

http://shop.ksb.com/catalog/k0/en/product/ES000183

Description

Vertical can-type ring-section pump on base frame, multistage, first-stage

impeller designed as a double-entry suction impeller, radial impellers. Flanges

to DIN or ANSI.

Applications

Pumping condensate in power stations and industrial plants.

http://shop.ksb.com/catalog/k0/en/product/ES000506

DN

Q [m

3

/h]

H [m]

p [bar]

T [°C]

n [rpm]

125 - 600

≤ 5200

≤ 540

≤ 100

≤ +250

≤ 3300

DN

Q [m

3

/h]

H [m]

p [bar]

T [°C]

n [rpm]

DN

Q [m

3

/h]

H [m]

p [bar]

T [°C]

n [rpm]

Data for 50 Hz operation

Also available for 60 Hz

Data for 50 Hz operation

Also available for 60 Hz

100 - 550

≤ 7000

≤ 300

≤ 400

≤ +425

≤ 3600

150 - 300

≤ 1500

≤ 370

≤ 40

≤ +140

1500

Also available for 60 Hz

Higher ratings possible on request

Higher ratings possible on request
