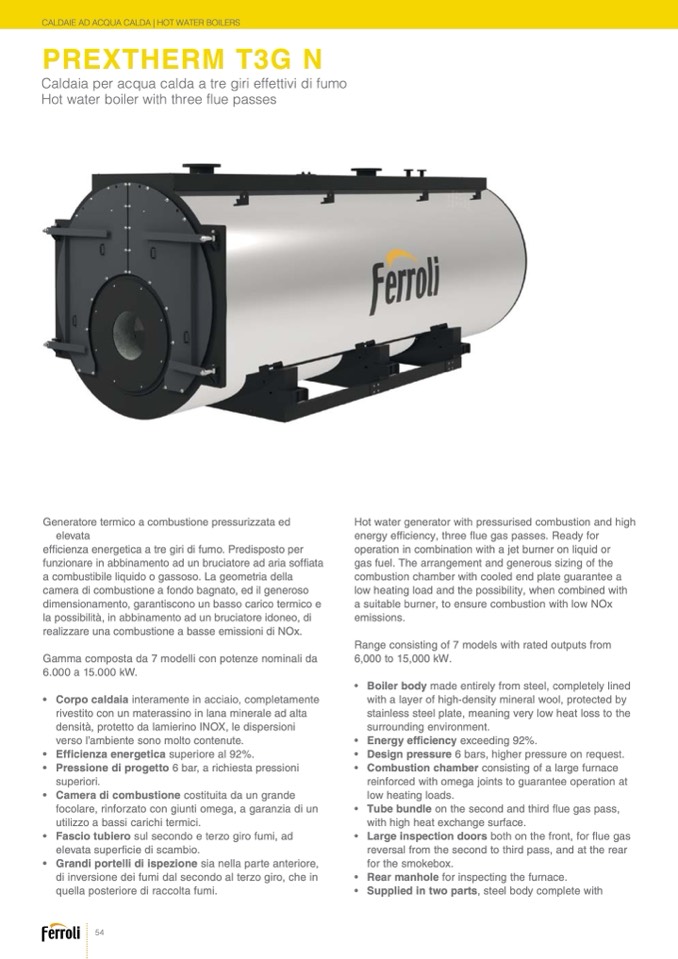

CALDAIE AD ACQUA CALDA | HOT WATER BOILERS

PREXTHERM T3G N

Caldaia per acqua calda a tre giri effettivi di fumo

Hot water boiler with three flue passes

Generatore termico a combustione pressurizzata ed

elevata

efficienza energetica a tre giri di fumo. Predisposto per

funzionare in abbinamento ad un bruciatore ad aria soffiata

a combustibile liquido o gassoso. La geometria della

camera di combustione a fondo bagnato, ed il generoso

dimensionamento, garantiscono un basso carico termico e

la possibilità, in abbinamento ad un bruciatore idoneo, di

realizzare una combustione a basse emissioni di NOx.

Gamma composta da 7 modelli con potenze nominali da

6.000 a 15.000 kW.

• Corpo caldaia interamente in acciaio, completamente

rivestito con un materassino in lana minerale ad alta

densit

à, protetto da lamierino INOX, le dispersioni

verso l’ambiente sono molto contenute.

• Efficienza energetica superiore al 92%.

• Pressione di progetto 6 bar, a richiesta pressioni

superiori.

• Camera di combustione costituita da un grande

focolare, rinforzato con giunti omega, a garanzia di un

utilizzo a bassi carichi termici.

• Fascio tubiero sul secondo e terzo giro fumi, ad

elevata super

ficie di scambio.

• Grandi portelli di ispezione sia nella parte anteriore,

di inversione dei fumi dal secondo al terzo giro, che in

quella posteriore di raccolta fumi.

Hot water generator with pressurised combustion and high

energy efficiency, three

flue gas passes. Ready for

operation in combination with a jet burner on liquid or

gas fuel. The arrangement and generous sizing of the

combustion chamber with cooled end plate guarantee a

low heating load and the possibility, when combined with

a suitable burner, to ensure combustion with low NOx

emissions.

Range consisting of 7 models with rated outputs from

6,000 to 15,000 kW.

• Boiler body made entirely from steel, completely lined

with a layer of high-density mineral wool, protected by

stainless steel plate, meaning very low heat loss to the

surrounding environment.

• Energy efficiency exceeding 92%.

• Design pressure 6 bars, higher pressure on request.

• Combustion chamber consisting of a large furnace

reinforced with omega joints to guarantee operation at

low heating loads.

• Tube bundle on the second and third

flue gas pass,

with high heat exchange surface.

• Large inspection doors both on the front, for

flue gas

reversal from the second to third pass, and at the rear

for the smokebox.

• Rear manhole for inspecting the furnace.

• Supplied in two parts, steel body complete with
