verso l’ambiente sono molto contenute.

• Il portellone anteriore costituito da un adeguato

spessore di cemento refrattario che ne copre tutta

l’estensione della super

ficie riscaldata della piastra

tubiera. L’apertura reversibile (destra o sinistra), e il

sistema di chiusura e regolazione micrometrico rendono

il portellone di facile movimentazione.

• Le saldature delle parti in pressione sono tutte eseguite da

personale quali

ficato ed approvato secondo norme EN.

• L’ispezionabilità lato acqua

è garantita mediante un

passo uomo sul colmo caldaia e da un passa mano

sulla parte inferiore.

• Manutenzione garantita dalla facilità di accesso dal

portellone al focolare ed al fascio tubiero, dalla cassa

fumi smontabile e dalla portina di ispezione sul corpo

caldaia.

CERTIFICAZIONI

Marcatura CE secondo le Direttive

Apparecchi a pressione (2014/68/UE)

Bassa Tensione (2014/35/UE)

Compatibilità Elettromagnetica (2014/30/UE)

• The front door consists of an adequate thickness of

refractory cement that covers the entire heated surface

of the pipe plates. The front door with reversible

opening (right and left), and the micrometric closing

and adjustment system make the door easy to move.

• The parts subject to pressure are all welded by

quali

fied and approved personnel, according to EN

standards.

• The water circuit can be inspected through a manhole

at the top of the boiler and a hand opening ring at the

bottom.

• Maintenance guaranteed by easy access to the

furnace and the tube bundle through the door, the

removable smokebox and the inspection door on the

boiler body.

CERTIFICATION

CE mark in accordance with the following directives

Pressure Equipment (2014/68/UE)

Low Voltage (2014/35/UE)

Electromagnetic Compatibility (2014/30/UE)

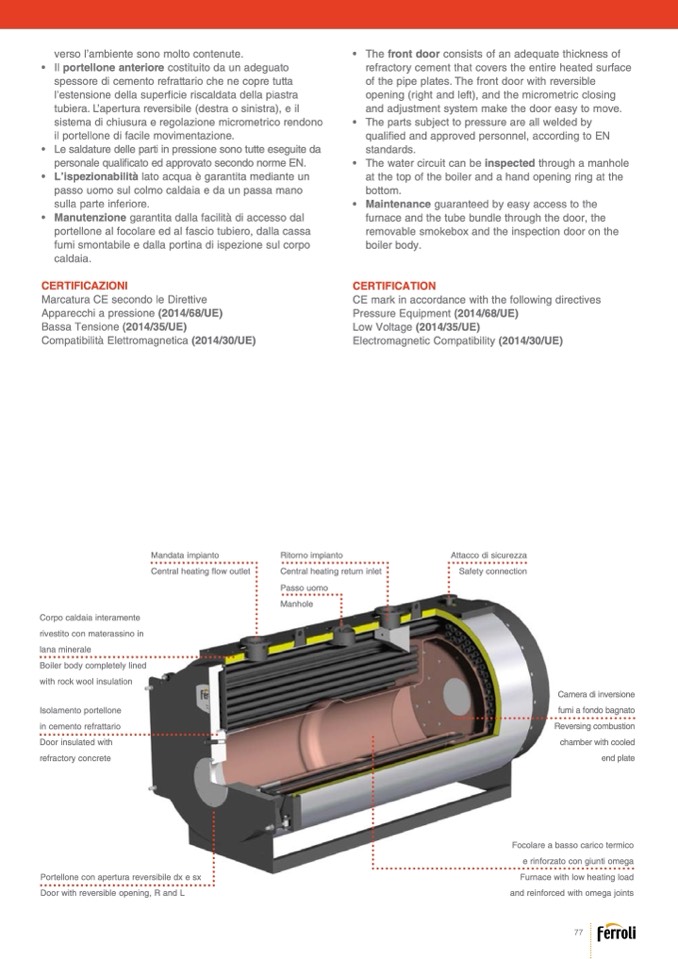

Mandata impianto

Central heating

flow outlet

Ritorno impianto

Central heating return inlet

Passo uomo

Manhole

Attacco di sicurezza

Safety connection

Corpo caldaia interamente

rivestito con materassino in

lana minerale

Boiler body completely lined

with rock wool insulation

Isolamento portellone

in cemento refrattario

Door insulated with

refractory concrete

Camera di inversione

fumi a fondo bagnato

Reversing combustion

chamber with cooled

end plate

Portellone con apertura reversibile dx e sx

Door with reversible opening, R and L

Focolare a basso carico termico

e rinforzato con giunti omega

Furnace with low heating load

and reinforced with omega joints
