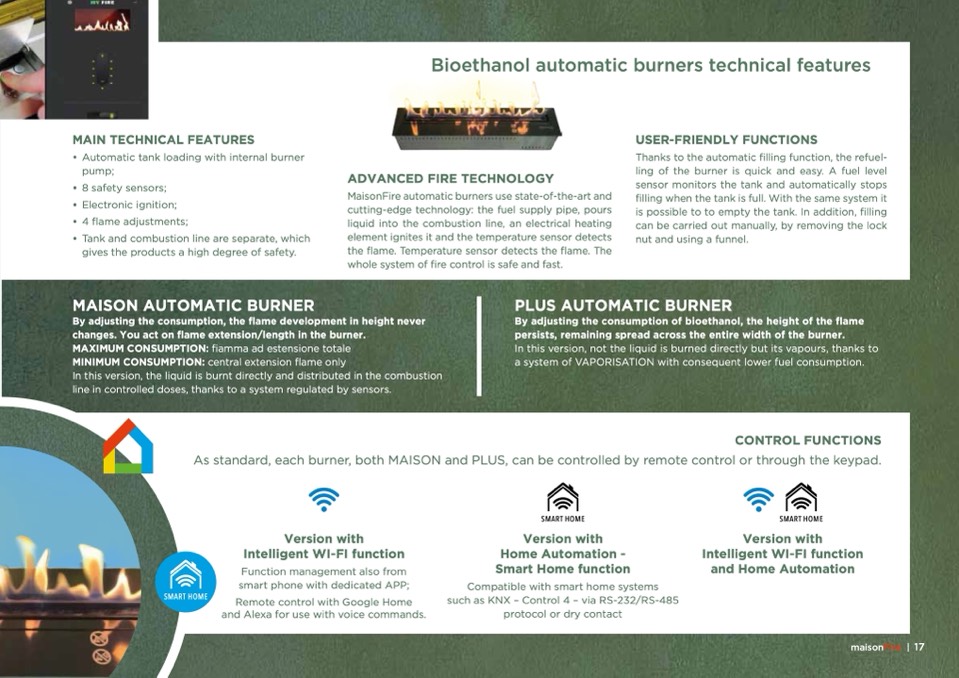

Bioethanol automatic burners technical features

MAIN TECHNICAL FEATURES

• Automatic tank loading with internal burner

pump;

• 8 safety sensors;

• Electronic ignition;

• 4

flame adjustments;

• Tank and combustion line are separate, which

gives the products a high degree of safety.

ADVANCED FIRE TECHNOLOGY

MaisonFire automatic burners use state-of-the-art and

cutting-edge technology: the fuel supply pipe, pours

liquid into the combustion line, an electrical heating

element ignites it and the temperature sensor detects

the flame. Temperature sensor detects the flame. The

whole system of fire control is safe and fast.

USER-FRIENDLY FUNCTIONS

Thanks to the automatic filling function, the refuel-

ling of the burner is quick and easy. A fuel level

sensor monitors the tank and automatically stops

filling when the tank is full. With the same system it

is possible to to empty the tank. In addition, filling

can be carried out manually, by removing the lock

nut and using a funnel.

MAISON AUTOMATIC BURNER

By adjusting the consumption, the flame development in height never

changes. You act on flame extension/length in the burner.

MAXIMUM CONSUMPTION: fiamma ad estensione totale

MINIMUM CONSUMPTION: central extension flame only

In this version, the liquid is burnt directly and distributed in the combustion

line in controlled doses, thanks to a system regulated by sensors.

PLUS AUTOMATIC BURNER

By adjusting the consumption of bioethanol, the height of the flame

persists, remaining spread across the entire width of the burner.

In this version, not the liquid is burned directly but its vapours, thanks to

a system of VAPORISATION with consequent lower fuel consumption.

CONTROL FUNCTIONS

As standard, each burner, both MAISON and PLUS, can be controlled by remote control or through the keypad.

Version with

Intelligent WI-FI function

Function management also from

smart phone with dedicated APP;

Remote control with Google Home

and Alexa for use with voice commands.

SMART HOME

Version with

Home Automation -

Smart Home function

Compatible with smart home systems

such as KNX – Control 4 – via RS-232/RS-485

protocol or dry contact

SMART HOME

Version with

Intelligent WI-FI function

and Home Automation

SMART HOME

maisonFire | 17
