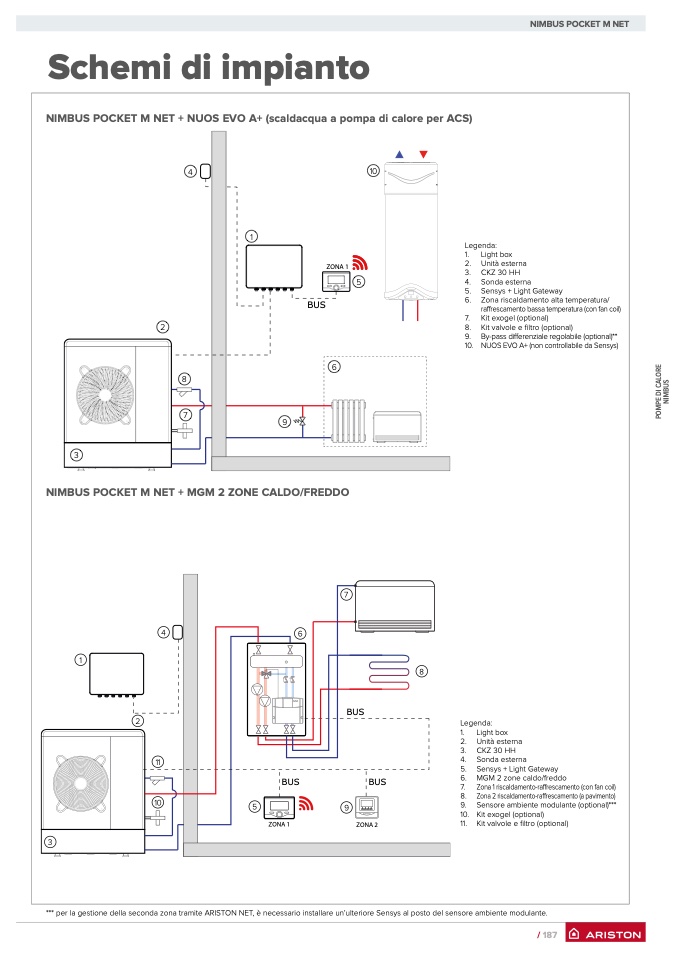

Schemi di impianto

NIMBUS POCKET M NET + NUOS EVO A+ (scaldacqua a pompa di calore per ACS)

4

10

3

2

8

7

9

1

ZONA 1

BUS

6

5

Legenda:

1.

Light box

2. Unità esterna

3. CKZ 30 HH

4. Sonda esterna

5. Sensys + Light Gateway

6. Zona riscaldamento alta temperatura/

raffrescamento bassa temperatura (con fan coil)

7.

Kit exogel (optional)

8. Kit valvole e filtro (optional)

9. By-pass differenziale regolabile (optional)**

10. NUOS EVO A+ (non controllabile da Sensys)

NIMBUS POCKET M NET

P

O

M

P

E

D

I

C

A

L

O

R

E

N

I

M

B

U

S

NIMBUS POCKET M NET + MGM 2 ZONE CALDO/FREDDO

3

1

2

11

10

BUS

5

9

ZONA 1

BUS

ZONA 2

Legenda:

1.

Light box

2. Unità esterna

3. CKZ 30 HH

4. Sonda esterna

5. Sensys + Light Gateway

6. MGM 2 zone caldo/freddo

7.

Zona 1 riscaldamento-raffrescamento (con fan coil)

8. Zona 2 riscaldamento-raffrescamento (a pavimento)

9. Sensore ambiente modulante (optional)***

10. Kit exogel (optional)

11. Kit valvole e filtro (optional)

4

6

*** per la gestione della seconda zona tramite ARISTON NET, è necessario installare un’ulteriore Sensys al posto del sensore ambiente modulante.

7

BUS

8
