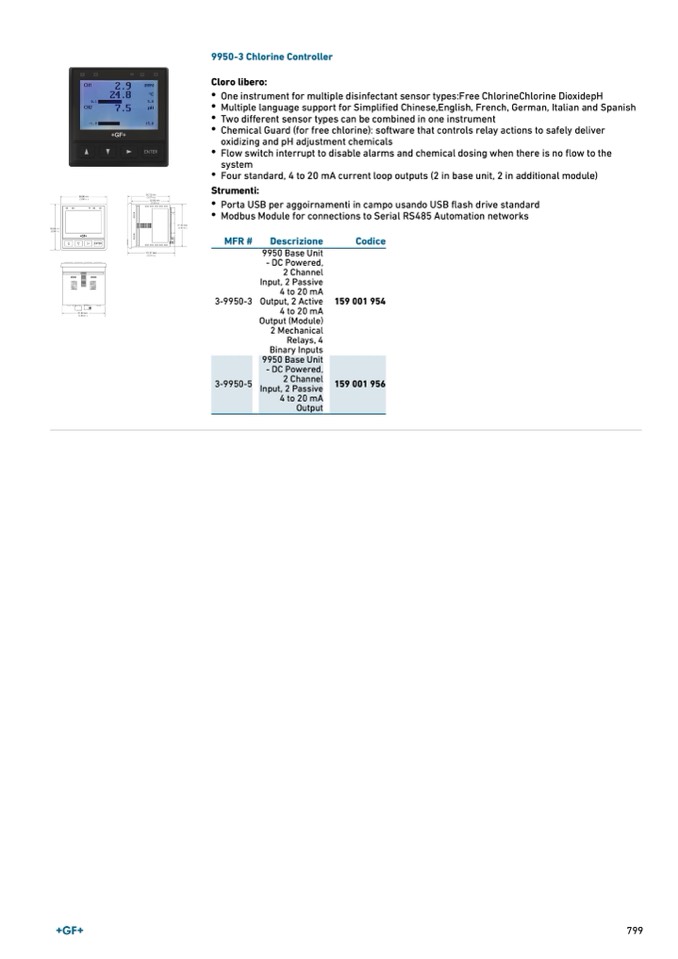

9950-3 Chlorine Controller

Cloro libero:

•

One instrument for multiple disinfectant sensor types:Free ChlorineChlorine DioxidepH

•

Multiple language support for Simplified Chinese,English, French, German, Italian and Spanish

•

Two different sensor types can be combined in one instrument

•

Chemical Guard (for free chlorine): software that controls relay actions to safely deliver

oxidizing and pH adjustment chemicals

•

Flow switch interrupt to disable alarms and chemical dosing when there is no flow to the

system

•

Four standard, 4 to 20 mA current loop outputs (2 in base unit, 2 in additional module)

Strumenti:

•

Porta USB per aggoirnamenti in campo usando USB flash drive standard

•

Modbus Module for connections to Serial RS485 Automation networks

MFR #

3-9950-3

Descrizione

9950 Base Unit

- DC Powered,

2 Channel

Input, 2 Passive

4 to 20 mA

Output, 2 Active

4 to 20 mA

Output (Module)

2 Mechanical

Relays, 4

Binary Inputs

Codice

159 001 954

9950 Base Unit

- DC Powered,

2 Channel

Input, 2 Passive

4 to 20 mA

Output

3-9950-5

159 001 956

799
