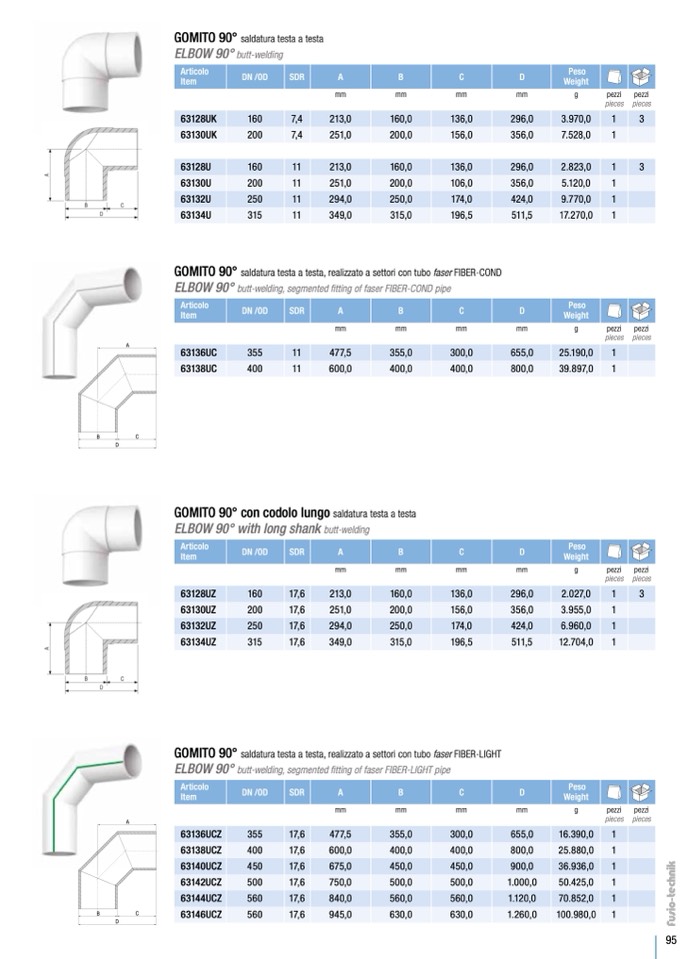

GOMITO 90° saldatura testa a testa

ELBOW 90° butt-welding

Articolo

Item

63128UK

63130UK

DN /OD

160

200

SDR

7,4

7,4

A

mm

213,0

251,0

B

mm

160,0

200,0

C

mm

136,0

156,0

D

mm

296,0

356,0

Peso

Weight

g

3.970,0

7.528,0

pezzi

pieces

1

1

3

pezzi

pieces

63128U

160

11

213,0

160,0

136,0

296,0

2.823,0

1

3

63130U

200

11

251,0

200,0

106,0

356,0

5.120,0

1

63132U

250

11

294,0

250,0

174,0

424,0

9.770,0

1

63134U

315

11

349,0

315,0

196,5

511,5

17.270,0

1

GOMITO 90° saldatura testa a testa, realizzato a settori con tubo faser FIBER-COND

ELBOW 90° butt-welding, segmented

fitting of faser FIBER-COND pipe

Articolo

Item

63136UC

63138UC

DN /OD

355

400

SDR

11

11

A

mm

477,5

600,0

B

mm

355,0

400,0

C

mm

300,0

400,0

D

mm

655,0

800,0

Peso

Weight

g

25.190,0

39.897,0

pezzi

pieces

1

1

A

B

C

D

pezzi

pieces

GOMITO 90° con codolo lungo saldatura testa a testa

ELBOW 90° with long shank butt-welding

Articolo

Item

63128UZ

63130UZ

63132UZ

63134UZ

DN /OD

160

200

250

315

SDR

17,6

17,6

17,6

17,6

A

mm

213,0

251,0

294,0

349,0

B

mm

160,0

200,0

250,0

315,0

C

mm

136,0

156,0

174,0

196,5

D

mm

296,0

356,0

424,0

511,5

Peso

Weight

g

2.027,0

3.955,0

6.960,0

12.704,0

pezzi

pieces

1

1

1

1

3

pezzi

pieces

GOMITO 90° saldatura testa a testa, realizzato a settori con tubo faser FIBER-LIGHT

ELBOW 90° butt-welding, segmented

fitting of faser FIBER-LIGHT pipe

Articolo

Item

63136UCZ

63138UCZ

63140UCZ

63142UCZ

63144UCZ

63146UCZ

DN /OD

355

400

450

500

560

560

SDR

17,6

17,6

17,6

17,6

17,6

17,6

A

mm

477,5

600,0

675,0

750,0

840,0

945,0

B

mm

355,0

400,0

450,0

500,0

560,0

630,0

C

mm

300,0

400,0

450,0

500,0

560,0

630,0

D

mm

655,0

800,0

900,0

1.000,0

1.120,0

1.260,0

Peso

Weight

g

16.390,0

25.880,0

36.936,0

50.425,0

70.852,0

100.980,0

pezzi

pieces

1

1

1

1

1

1

A

B

C

D

pezzi

pieces
