BP001.BI

VASOMULTI 55.38

Vaso a terra con carico e scarico acqua

regolabile. Scarico parete trasformabile a

pavimento tramite curva tecnica fornita a

richiesta. Installazione filo parete. Scarico

4,5/3 Lt. Completo di fissaggi

Floor mounted pan with adjustable water inlet/

outlet. Wall drain turning into floor drain by

means of the PVC pipe supplied on demand.

Back to wall installation. Drain 4,5/3 Lt. Fixing kit

included

BP009.BI

BIDETMULTI 55.38

Bidet a terra monoforo con carico e scarico

acqua regolabile. Installazione filo parete.

Completo di fissaggi

Floor mounted bidet one hole with adjustable

water inlet/outlet. Back to wall installation.

Fixing kit included

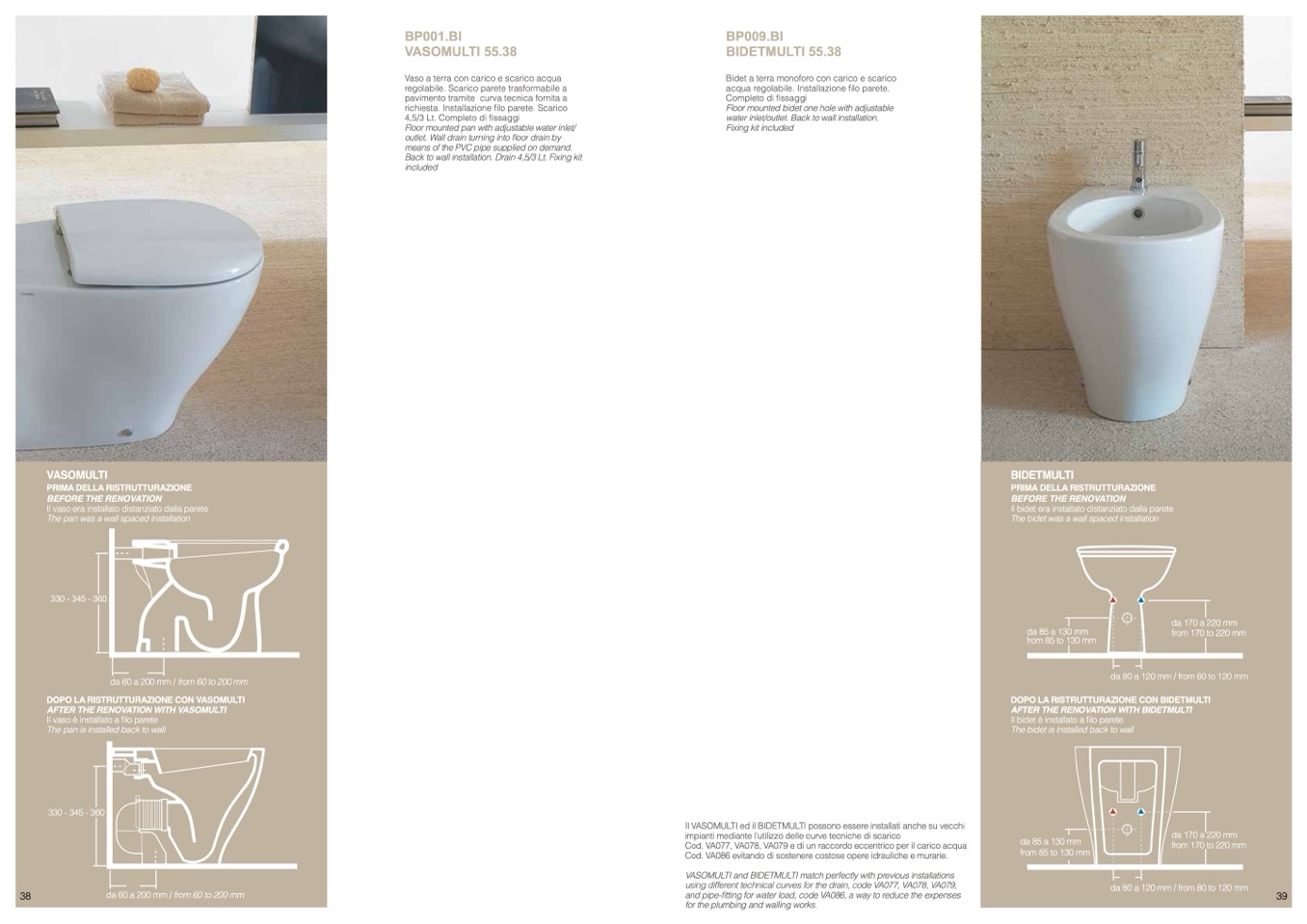

VASOMULTI

PRIMA DELLA RISTRUTTURAZIONE

BEFORE THE RENOVATION

Il vaso era installato distanziato dalla parete

The pan was a wall spaced installation

330-345-360

da60a200mm/from60to200mm

DOPO LA RISTRUTTURAZIONE CON VASOMULTI

AFTER THE RENOVATION WITH VASOMULTI

Il vaso è installato a filo parete

The pan is installed back to wall

330-345-360

38 globo

da60a200mm/from60to200mm

BIDETMULTI

PRIMA DELLA RISTRUTTURAZIONE

BEFORE THE RENOVATION

Il bidet era installato distanziato dalla parete

The bidet was a wall spaced installation

da85a130mm

from170to220mm

from 85 to 130 mm

da80a120mm/from80to120mm

DOPO LA RISTRUTTURAZIONE CON BIDETMULTI

da170a220mm

AFTER THE RENOVATION WITH BIDETMULTI

Il bidet è installato a filo parete

The bidet is installed back to wall

da85a130mm

from 85 to 130 mm

da170a220mm

from 170 to 220 mm

da80a120mm/from80to120mm

Bowl + 39

Il VASOMULTI ed il BIDETMULTI possono essere installati anche su vecchi

impianti mediante l’utilizzo delle curve tecniche di scarico

Cod. VA077, VA078, VA079 e di un raccordo eccentrico per il carico acqua

Cod. VA086 evitando di sostenere costose opere idrauliche e murarie.

VASOMULTI and BIDETMULTI match perfectly with previous installations

using different technical curves for the drain, code VA077, VA078, VA079,

and pipe-fitting for water load, code VA086, a way to reduce the expenses

for the plumbing and walling works.
