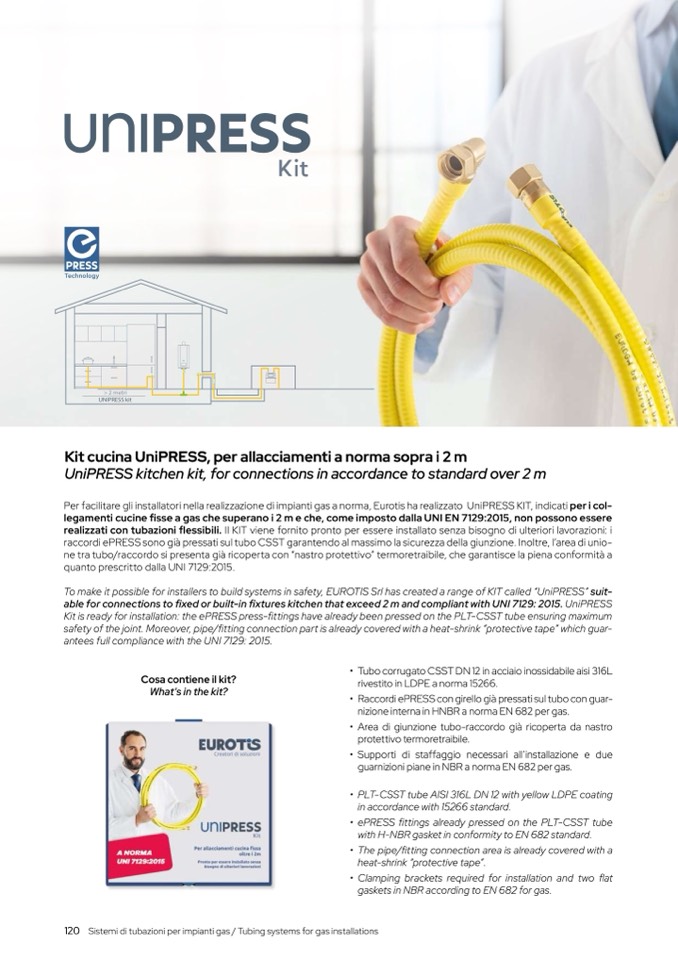

Kit cucina UniPRESS, per allacciamenti a norma sopra i 2 m

UniPRESS kitchen kit, for connections in accordance to standard over 2 m

Per facilitare gli installatori nella realizzazione di impianti gas a norma, Eurotis ha realizzato UniPRESS KIT, indicati per i col-

legamenti cucine

fisse a gas che superano i 2 m e che, come imposto dalla UNI EN 7129:2015, non possono essere

realizzati con tubazioni flessibili. Il KIT viene fornito pronto per essere installato senza bisogno di ulteriori lavorazioni: i

raccordi ePRESS sono gi

à pressati sul tubo CSST garantendo al massimo la sicurezza della giunzione. Inoltre, l’area di unio-

ne tra tubo/raccordo si presenta gi

à ricoperta con “nastro protettivo” termoretraibile, che garantisce la piena conformità a

quanto prescritto dalla UNI 7129:2015.

To make it possible for installers to build systems in safety, EUROTIS Srl has created a range of KIT called “UniPRESS” suit-

able for connections to

fixed or built-in fixtures kitchen that exceed 2 m and compliant with UNI 7129: 2015. UniPRESS

Kit is ready for installation: the ePRESS press-fittings have already been pressed on the PLT-CSST tube ensuring maximum

safety of the joint. Moreover, pipe/

fitting connection part is already covered with a heat-shrink “protective tape” which guar-

antees full compliance with the UNI 7129: 2015.

Cosa contiene il kit?

What's in the kit?

• TubocorrugatoCSSTDN12inacciaioinossidabileaisi316L

rivestito in LDPE a norma 15266.

• RaccordiePRESScongirellogi

àpressatisultuboconguar-

nizione interna in HNBR a norma EN 682 per gas.

• Area di giunzione tubo-raccordo gi

à ricoperta da nastro

protettivo termoretraibile.

• Supporti di staffaggio necessari all’installazione e due

guarnizioni piane in NBR a norma EN 682 per gas.

• PLT-CSST tube AISI 316L DN 12 with yellow LDPE coating

in accordance with 15266 standard.

• ePRESS fittings already pressed on the PLT-CSST tube

with H-NBR gasket in conformity to EN 682 standard.

• The pipe/fitting connection area is already covered with a

heat-shrink “protective tape”.

• Clamping brackets required for installation and two

flat

gaskets in NBR according to EN 682 for gas.

120 Sistemi di tubazioni per impianti gas / Tubing systems for gas installations
