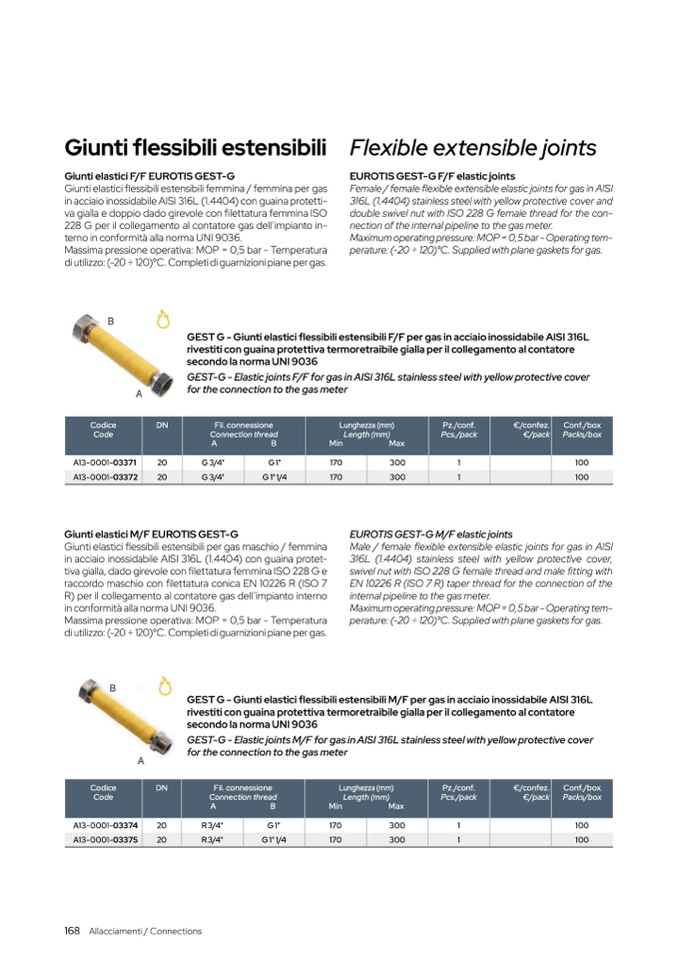

Giunti

flessibili estensibili

Giunti elastici F/F EUROTIS GEST-G

Giunti elastici

flessibili estensibili femmina / femmina per gas

in acciaio inossidabile AISI 316L (1.4404) con guaina protetti-

va gialla e doppio dado girevole con filettatura femmina ISO

228 G per il collegamento al contatore gas dell’impianto in-

terno in conformit

à alla norma UNI 9036.

Massima pressione operativa: MOP = 0,5 bar - Temperatura

di utilizzo: (-20 ÷ 120)°C. Completi di guarnizioni piane per gas.

Flexible extensible joints

EUROTIS GEST-G F/F elastic joints

Female / female flexible extensible elastic joints for gas in AISI

316L (1.4404) stainless steel with yellow protective cover and

double swivel nut with ISO 228 G female thread for the con-

nection of the internal pipeline to the gas meter.

Maximum operating pressure: MOP = 0,5 bar - Operating tem-

perature: (-20 ÷ 120)°C. Supplied with plane gaskets for gas.

B

A

GEST G - Giunti elastici flessibili estensibili F/F per gas in acciaio inossidabile AISI 316L

rivestiti con guaina protettiva termoretraibile gialla per il collegamento al contatore

secondo la norma UNI 9036

GEST-G - Elastic joints F/F for gas in AISI 316L stainless steel with yellow protective cover

for the connection to the gas meter

Codice

Code

DN

Fil. connessione

Connection thread

A

B

Lunghezza (mm)

Length (mm)

Min

Max

Pz./conf.

Pcs./pack

€/confez.

€/pack

Conf./box

Packs/box

A13-0001-03371

20

G3/4"

G1"

170

300

1

100

A13-0001-

03372

20

G3/4"

G1"1/4

170

300

1

100

Giunti elastici M/F EUROTIS GEST-G

Giunti elastici flessibili estensibili per gas maschio / femmina

in acciaio inossidabile AISI 316L (1.4404) con guaina protet-

tiva gialla, dado girevole con filettatura femmina ISO 228 G e

raccordo maschio con filettatura conica EN 10226 R (ISO 7

R) per il collegamento al contatore gas dell’impianto interno

in conformità alla norma UNI 9036.

Massima pressione operativa: MOP = 0,5 bar - Temperatura

di utilizzo: (-20 ÷ 120)°C. Completi di guarnizioni piane per gas.

EUROTIS GEST-G M/F elastic joints

Male / female flexible extensible elastic joints for gas in AISI

316L (1.4404) stainless steel with yellow protective cover,

swivel nut with ISO 228 G female thread and male

fitting with

EN 10226 R (ISO 7 R) taper thread for the connection of the

internal pipeline to the gas meter.

Maximum operating pressure: MOP = 0,5 bar - Operating tem-

perature: (-20 ÷ 120)°C. Supplied with plane gaskets for gas.

B

A

GEST G - Giunti elastici flessibili estensibili M/F per gas in acciaio inossidabile AISI 316L

rivestiti con guaina protettiva termoretraibile gialla per il collegamento al contatore

secondo la norma UNI 9036

GEST-G - Elastic joints M/F for gas in AISI 316L stainless steel with yellow protective cover

for the connection to the gas meter

Codice

Code

DN

Fil. connessione

Connection thread

A

B

Lunghezza (mm)

Length (mm)

Min

Max

Pz./conf.

Pcs./pack

€/confez.

€/pack

Conf./box

Packs/box

A13-0001-03374

20

R3/4"

G1"

170

300

1

100

A13-0001-

03375

20

R3/4"

G1"1/4

170

300

1

100

168 Allacciamenti / Connections
