N° pz.

/pcs.

Descrizione

Description

DN

Fil. conness.

Conn. thread

M

F

Lunghezza/

Length (mm)

Min Max

Tubi CSST in acciaio inossidabile AISI 304 flangiati da

un solo lato

AISI 304 PLT-CSST tubes

flanged on one side

12

-

-

2

Tubi CSST in acciaio inossidabile AISI 304

flangiati da

un solo lato

AISI 304 PLT-CSST tubes flanged on one side

15

-

-

420

Dadi in ottone nichelato con sede speciale a

filettatura femmina ISO 228 G completi di guarnizioni

piane KLINGERSIL C4324

Nickel plated brass nuts with special seat and ISO

228 G female thread with synthetic

fibers based

KLINGERSIL C4324 plane gaskets

12

-

G 1/2"

2

Dadi in ottone nichelato con sede speciale a

filettatura femmina ISO 228 G completi di guarnizioni

piane KLINGERSIL C4324

Nickel plated brass nuts with special seat and ISO

228 G female thread with synthetic fibers based

KLINGERSIL C4324 plane gaskets

15

-

G 3/4"

-

Raccordi filettati maschio in ottone nichelato ad

innesto rapido, idonei al trasporto di acqua potabile,

con

filettatura maschio ISO 228 G, per il collegamento

tra tubi CSST e terminali

filettati femmina

Nickel plated brass M/M fast coupling

fittings with

sealing elements suitable for drinking water with male

ISO 228 G thread for connection between PLT-CSST

tubes and female thread ends

12

G 1/2"

-

2

Raccordi filettati maschio in ottone nichelato ad

innesto rapido, idonei al trasporto di acqua potabile,

con

filettatura maschio ISO 228 G, per il collegamento

tra tubi CSST e terminali

filettati femmina

Nickel plated brass M/M fast coupling

fittings with

sealing elements suitable for drinking water with male

ISO 228 G thread for connection between PLT-CSST

tubes and female thread ends

15

G 3/4"

-

-

TEG: Flessibile estensibile M/F in acciaio inossidabile

AISI 316L a norma UNI 11353 per gas

TEG: Flexible extensible hose M/F in AISI 316L

stainless steel for gas according to UNI 11353

R 3/4"

G 3/4"

220

Codice

Code

€/conf.

€/pack

Conf./box

Packs/box

A10-0001-00966

24

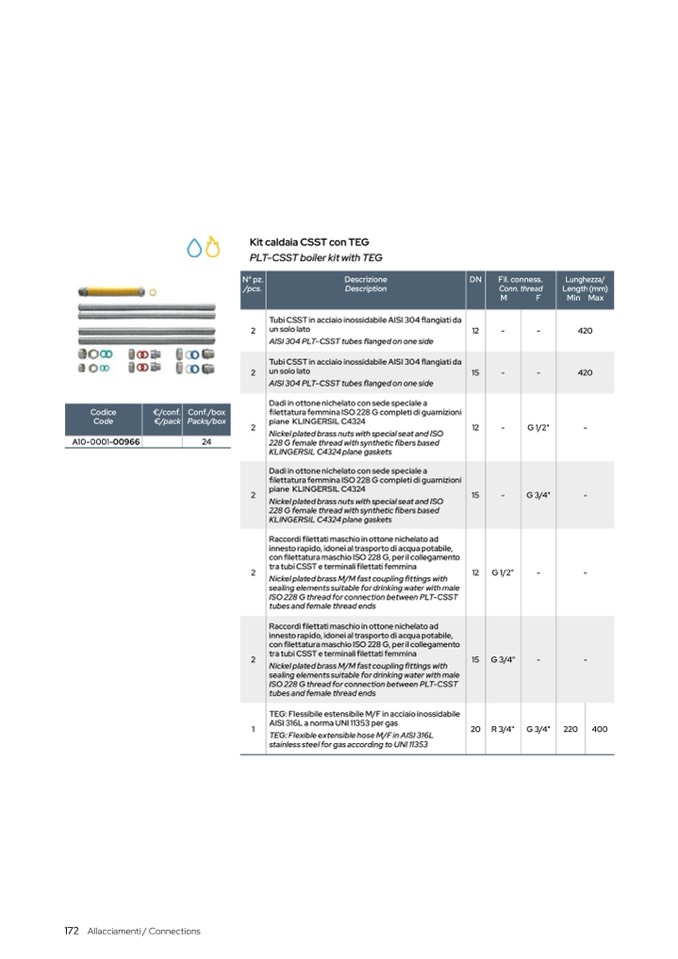

Kit caldaia CSST con TEG

PLT-CSST boiler kit with TEG

2

420

2

-

2

-

1

20

400

172 Allacciamenti / Connections
