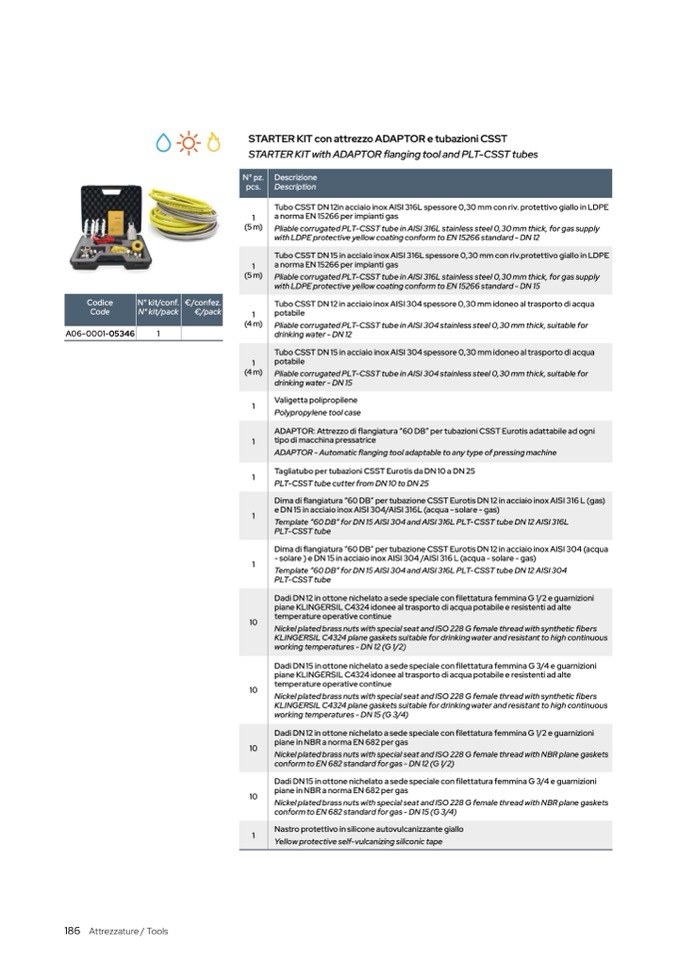

STARTER KIT con attrezzo ADAPTOR e tubazioni CSST

STARTER KIT with ADAPTOR flanging tool and PLT-CSST tubes

Tubo CSST DN 12in acciaio inox AISI 316L spessore 0,30 mm con riv. protettivo giallo in LDPE

a norma EN 15266 per impianti gas

Pliable corrugated PLT-CSST tube in AISI 316L stainless steel 0,30 mm thick, for gas supply

with LDPE protective yellow coating conform to EN 15266 standard - DN 12

Tubo CSST DN 12 in acciaio inox AISI 304 spessore 0,30 mm idoneo al trasporto di acqua

potabile

Pliable corrugated PLT-CSST tube in AISI 304 stainless steel 0,30 mm thick, suitable for

drinking water - DN 12

Valigetta polipropilene

1

1

1

10

10

N° pz.

pcs.

Descrizione

Description

1

(5m)

Tubo CSST DN 15 in acciaio inox AISI 316L spessore 0,30 mm con riv.protettivo giallo in LDPE

a norma EN 15266 per impianti gas

Pliable corrugated PLT-CSST tube in AISI 316L stainless steel 0,30 mm thick, for gas supply

with LDPE protective yellow coating conform to EN 15266 standard - DN 15

Codice

Code

N° kit/conf.

N° kit/pack

€/confez.

€/pack

A06-0001-05346

1

1

(5m)

1

(4 m)

1

(4 m)

Tubo CSST DN 15 in acciaio inox AISI 304 spessore 0,30 mm idoneo al trasporto di acqua

potabile

Pliable corrugated PLT-CSST tube in AISI 304 stainless steel 0,30 mm thick, suitable for

drinking water - DN 15

Polypropylene tool case

Tagliatubo per tubazioni CSST Eurotis da DN 10 a DN 25

1

ADAPTOR: Attrezzo di

flangiatura “60 DB” per tubazioni CSST Eurotis adattabile ad ogni

tipo di macchina pressatrice

ADAPTOR - Automatic

flanging tool adaptable to any type of pressing machine

PLT-CSST tube cutter from DN 10 to DN 25

Dima di

flangiatura “60 DB” per tubazione CSST Eurotis DN 12 in acciaio inox AISI 304 (acqua

- solare ) e DN 15 in acciaio inox AISI 304 /AISI 316 L (acqua - solare - gas)

1

Dima di

flangiatura “60 DB” per tubazione CSST Eurotis DN 12 in acciaio inox AISI 316 L (gas)

e DN 15 in acciaio inox AISI 304/AISI 316L (acqua - solare - gas)

Template “60 DB” for DN 15 AISI 304 and AISI 316L PLT-CSST tube DN 12 AISI 316L

PLT-CSST tube

Template “60 DB” for DN 15 AISI 304 and AISI 316L PLT-CSST tube DN 12 AISI 304

PLT-CSST tube

Dadi DN 15 in ottone nichelato a sede speciale con

filettatura femmina G 3/4 e guarnizioni

piane KLINGERSIL C4324 idonee al trasporto di acqua potabile e resistenti ad alte

temperature operative continue

10

Dadi DN 12 in ottone nichelato a sede speciale con

filettatura femmina G 1/2 e guarnizioni

piane KLINGERSIL C4324 idonee al trasporto di acqua potabile e resistenti ad alte

temperature operative continue

Nickel plated brass nuts with special seat and ISO 228 G female thread with synthetic fibers

KLINGERSIL C4324 plane gaskets suitable for drinking water and resistant to high continuous

working temperatures - DN 12 (G 1/2)

Nickel plated brass nuts with special seat and ISO 228 G female thread with synthetic fibers

KLINGERSIL C4324 plane gaskets suitable for drinking water and resistant to high continuous

working temperatures - DN 15 (G 3/4)

Dadi DN 15 in ottone nichelato a sede speciale con

filettatura femmina G 3/4 e guarnizioni

piane in NBR a norma EN 682 per gas

10

Dadi DN 12 in ottone nichelato a sede speciale con

filettatura femmina G 1/2 e guarnizioni

piane in NBR a norma EN 682 per gas

Nickel plated brass nuts with special seat and ISO 228 G female thread with NBR plane gaskets

conform to EN 682 standard for gas - DN 12 (G 1/2)

Nickel plated brass nuts with special seat and ISO 228 G female thread with NBR plane gaskets

conform to EN 682 standard for gas - DN 15 (G 3/4)

1

Nastro protettivo in silicone autovulcanizzante giallo

Yellow protective self-vulcanizing siliconic tape

186 Attrezzature / Tools
