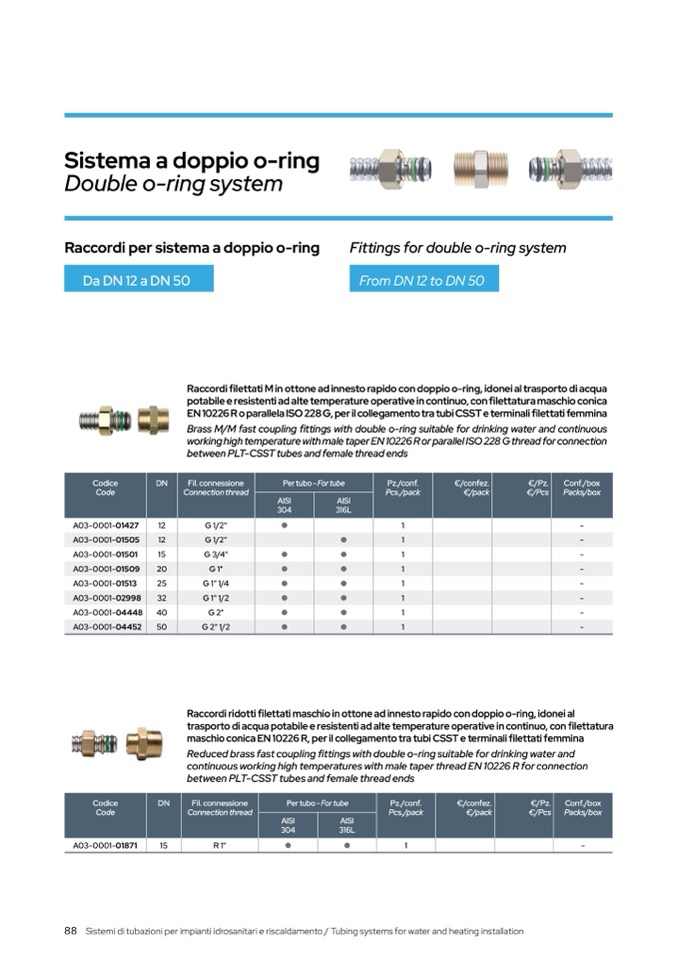

Sistema a doppio o-ring

Double o-ring system

Raccordi per sistema a doppio o-ring

Fittings for double o-ring system

Da DN 12 a DN 50

From DN 12 to DN 50

Raccordi filettati M in ottone ad innesto rapido con doppio o-ring, idonei al trasporto di acqua

potabile e resistenti ad alte temperature operative in continuo, con

filettatura maschio conica

EN 10226 R o parallela ISO 228 G, per il collegamento tra tubi CSST e terminali filettati femmina

Brass M/M fast coupling

fittings with double o-ring suitable for drinking water and continuous

working high temperature with male taper EN 10226 R or parallel ISO 228 G thread for connection

between PLT-CSST tubes and female thread ends

Codice

Code

DN

Fil. connessione

Connection thread

Per tubo - For tube

Pz./conf.

Pcs./pack

€/confez.

€/pack

€/Pz.

€/Pcs

Conf./box

Packs/box

AISI

304

AISI

316L

A03-0001-

01427

12

G 1/2"

1

-

A03-0001-

01505

12

G 1/2"

1

-

A03-0001-01501

15

A03-0001-01513

25

A03-0001-04448

40

G 3/4"

G 1" 1/4

G 2"

1

-

1

-

1

-

A03-0001-

01509

20

G 1"

1

-

A03-0001-

02998

32

G 1" 1/2

1

-

A03-0001-

04452

50

G 2" 1/2

1

-

Codice

Code

DN

Fil. connessione

Connection thread

Per tubo - For tube

Pz./conf.

Pcs./pack

€/confez.

€/pack

€/Pz.

€/Pcs

Conf./box

Packs/box

AISI

304

AISI

316L

A03-0001-01871

15

Raccordi ridotti filettati maschio in ottone ad innesto rapido con doppio o-ring, idonei al

trasporto di acqua potabile e resistenti ad alte temperature operative in continuo, con filettatura

maschio conica EN 10226 R, per il collegamento tra tubi CSST e terminali filettati femmina

Reduced brass fast coupling

fittings with double o-ring suitable for drinking water and

continuous working high temperatures with male taper thread EN 10226 R for connection

between PLT-CSST tubes and female thread ends

R 1"

1

-
