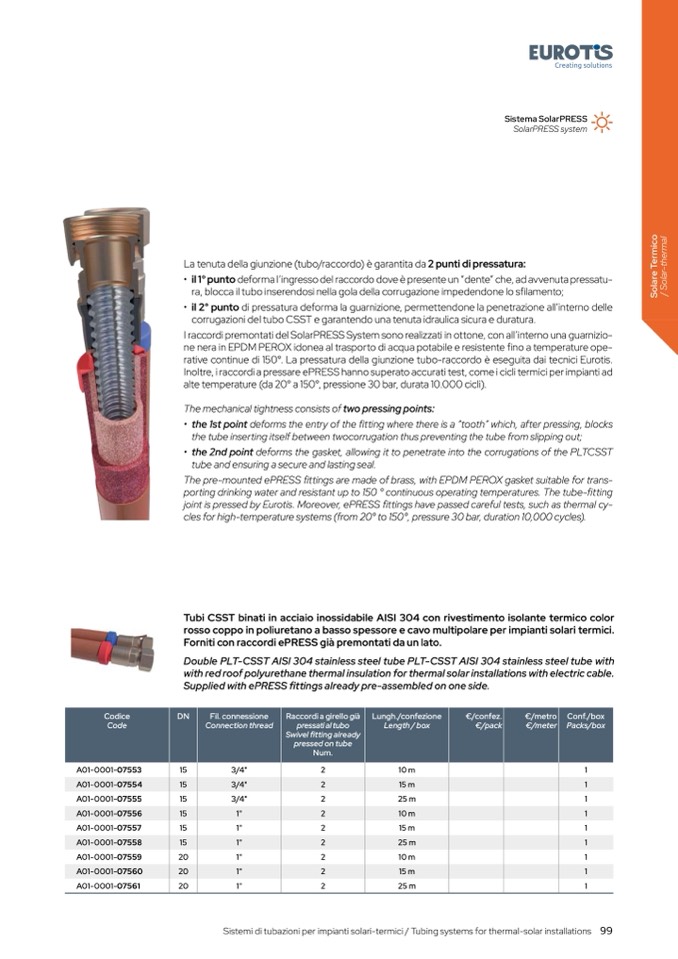

Sistema SolarPRESS

SolarPRESS system

La tenuta della giunzione (tubo/raccordo) è garantita da 2 punti di pressatura:

• il1°puntodeformal’ingressodelraccordodoveèpresenteun“dente”che,adavvenutapressatu-

ra, blocca il tubo inserendosi nella gola della corrugazione impedendone lo sfilamento;

• il 2° punto di pressatura deforma la guarnizione, permettendone la penetrazione all’interno delle

corrugazioni del tubo CSST e garantendo una tenuta idraulica sicura e duratura.

I raccordi premontati del SolarPRESS System sono realizzati in ottone, con all’interno una guarnizio-

ne nera in EPDM PEROX idonea al trasporto di acqua potabile e resistente fino a temperature ope-

rative continue di 150°. La pressatura della giunzione tubo-raccordo è eseguita dai tecnici Eurotis.

Inoltre, i raccordi a pressare ePRESS hanno superato accurati test, come i cicli termici per impianti ad

alte temperature (da 20° a 150°, pressione 30 bar, durata 10.000 cicli).

The mechanical tightness consists of two pressing points:

• the 1st point deforms the entry of the fitting where there is a “tooth” which, after pressing, blocks

the tube inserting itself between twocorrugation thus preventing the tube from slipping out;

• the 2nd point deforms the gasket, allowing it to penetrate into the corrugations of the PLTCSST

tube and ensuring a secure and lasting seal.

The pre-mounted ePRESS

fittings are made of brass, with EPDM PEROX gasket suitable for trans-

porting drinking water and resistant up to 150 ° continuous operating temperatures. The tube-

fitting

joint is pressed by Eurotis. Moreover, ePRESS fittings have passed careful tests, such as thermal cy-

cles for high-temperature systems (from 20° to 150°, pressure 30 bar, duration 10,000 cycles).

Tubi CSST binati in acciaio inossidabile AISI 304 con rivestimento isolante termico color

rosso coppo in poliuretano a basso spessore e cavo multipolare per impianti solari termici.

Forniti con raccordi ePRESS gi

à premontati da un lato.

Double PLT-CSST AISI 304 stainless steel tube PLT-CSST AISI 304 stainless steel tube with

with red roof polyurethane thermal insulation for thermal solar installations with electric cable.

Supplied with ePRESS

fittings already pre-assembled on one side.

Codice

Code

DN

Fil. connessione

Connection thread

Raccordi a girello già

pressati al tubo

Swivel

fitting already

pressed on tube

Num.

Lungh./confezione

Length / box

€/confez.

€/pack

€/metro

€/meter

Conf./box

Packs/box

A01-0001- 07553

15

3/4"

2

10 m

1

A01-0001- 07554

15

3/4"

2

15 m

1

A01-0001- 07555

15

3/4"

2

25 m

1

A01-0001- 07556

15

1"

2

10 m

1

A01-0001- 07557

15

1"

2

15 m

1

A01-0001- 07558

15

1"

2

25 m

1

A01-0001- 07559

20

1"

2

10 m

1

A01-0001- 07560

20

1"

2

15 m

1

A01-0001-

07561

20

1"

2

25 m

1

Sistemi di tubazioni per impianti solari-termici / Tubing systems for thermal-solar installations 99
