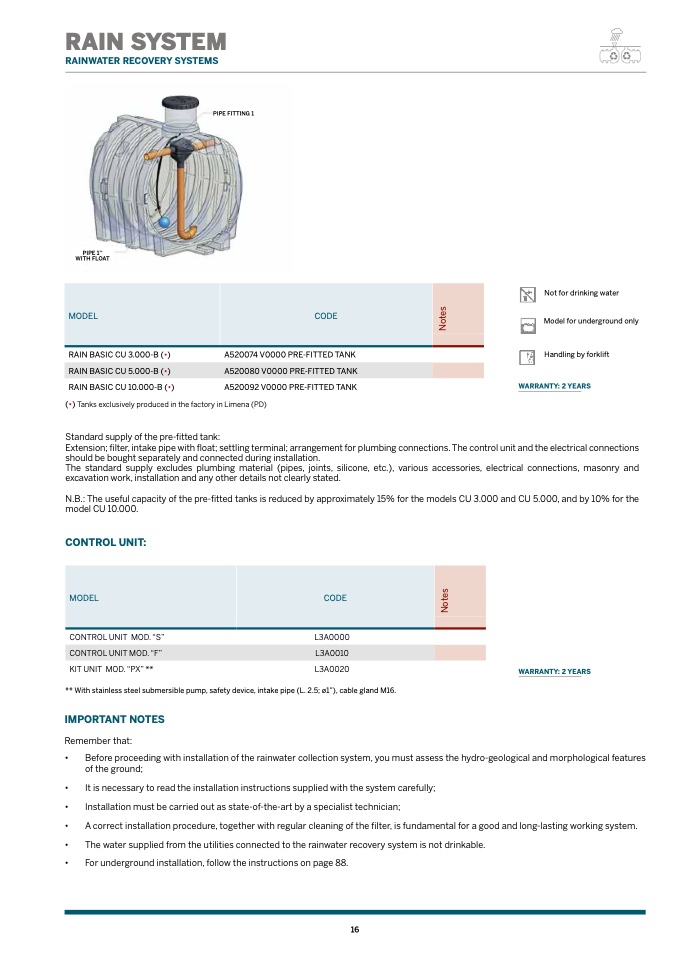

RAIN SYSTEM

RAINWATER RECOVERY SYSTEMS

PIPE FITTING 1

PIPE 1’’

WITH FLOAT

MODEL

RAIN BASIC CU 10.000-B (•)

A520080 V0000 PRE-FITTED TANK

A520092 V0000 PRE-FITTED TANK

CODE

RAIN BASIC CU 5.000-B (•)

RAIN BASIC CU 3.000-B (•)

A520074 V0000 PRE-FITTED TANK

Handling by forklift

WARRANTY: 2 YEARS

(•) Tanks exclusively produced in the factory in Limena (PD)

Standard supply of the pre-fitted tank:

Extension; filter, intake pipe with float; settling terminal; arrangement for plumbing connections. The control unit and the electrical connections

should be bought separately and connected during installation.

The standard supply excludes plumbing material (pipes, joints, silicone, etc.), various accessories, electrical connections, masonry and

excavation work, installation and any other details not clearly stated.

N.B.: The useful capacity of the pre-fitted tanks is reduced by approximately 15% for the models CU 3.000 and CU 5.000, and by 10% for the

model CU 10.000.

Not for drinking water

Model for underground only

CONTROL UNIT:

CONTROLUNIT MOD.“S”

L3A0000

** With stainless steel submersible pump, safety device, intake pipe (L. 2.5; ø1”), cable gland M16.

IMPORTANT NOTES

Remember that:

WARRANTY: 2 YEARS

MODEL

KITUNIT MOD.“PX”**

CODE

CONTROL UNIT MOD. “F”

L3A0010

L3A0020

•

Before proceeding with installation of the rainwater collection system, you must assess the hydro-geological and morphological features

of the ground;

•

It is necessary to read the installation instructions supplied with the system carefully;

•

Installation must be carried out as state-of-the-art by a specialist technician;

•

A correct installation procedure, together with regular cleaning of the filter, is fundamental for a good and long-lasting working system.

•

The water supplied from the utilities connected to the rainwater recovery system is not drinkable.

•

For underground installation, follow the instructions on page 88.
