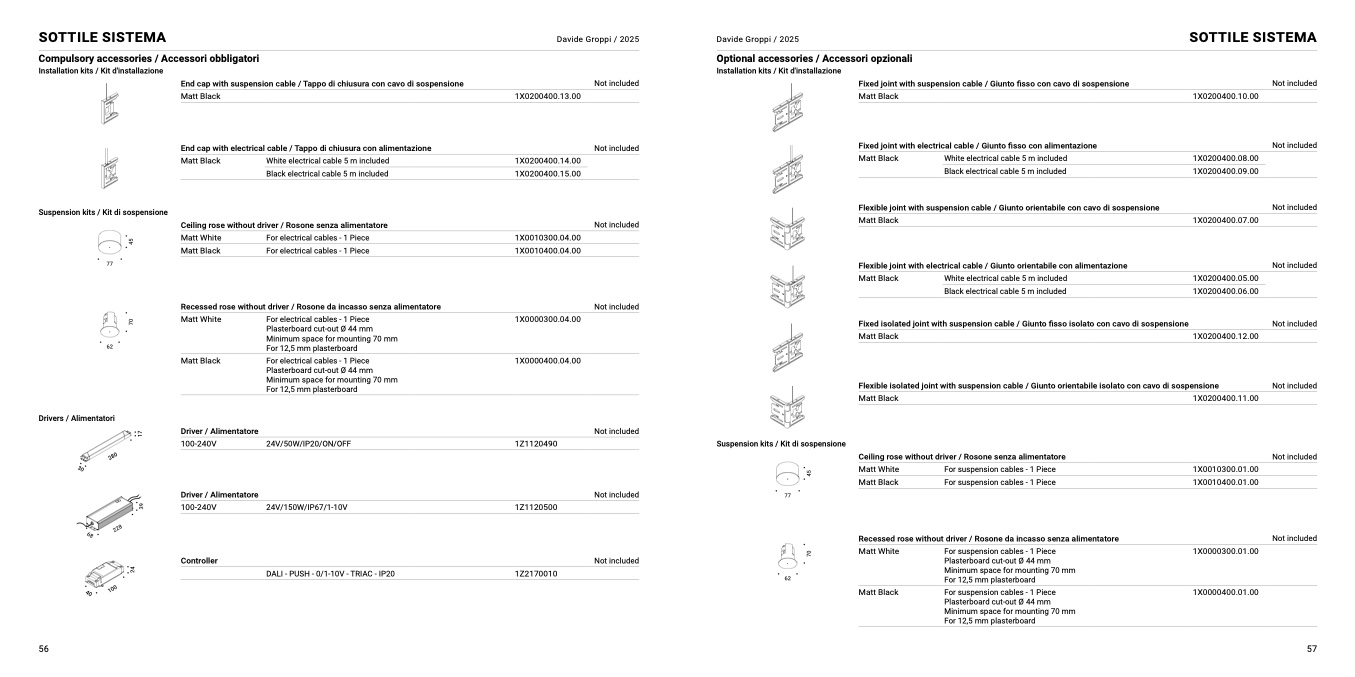

SOTTILE SISTEMA
Davide Groppi / 2025
Davide Groppi / 2025
SOTTILE SISTEMA
Compulsory accessories / Accessori obbligatori
Installation kits / Kit d'installazione
Optional accessories / Accessori opzional
i
Installation kits / Kit d'installazion
e
End cap with suspension cable / Tappo di chiusura con cavo di sospensione
Not include
d
Fixed joint with suspension cable / Giunto
fisso con cavo di sospensione
Not include
d
Matt Black
1X0200400.13.00
Matt Black
1X0200400.10.0
0
End cap with electrical cable / Tappo di chiusura con alimentazione
Not include
d
Fixed joint with electrical cable / Giunto
fisso con alimentazione
Not include
d
Matt Black
White electrical cable 5 m included
1X0200400.14.00
Matt Black
White electrical cable 5 m included
1X0200400.08.0
0
Black electrical cable 5 m included
1X0200400.15.00
Black electrical cable 5 m included
1X0200400.09.0
0
Flexible joint with suspension cable / Giunto orientabile con cavo di sospensione
Not include
d
Suspension kits / Kit di sospensione
Matt Black
1X0200400.07.0
0
Ceiling rose without driver / Rosone senza alimentatore
Not include
d
Matt White
For electrical cables - 1 Piece
1X0010300.04.00
Matt Black
For electrical cables - 1 Piece
1X0010400.04.00
Matt Black
White electrical cable 5 m included
1X0200400.05.0
0
Recessed rose without driver / Rosone da incasso senza alimentatore
Not include
d
Matt White
1X0000300.04.00
Flexible joint with electrical cable / Giunto orientabile con alimentazione
Black electrical cable 5 m included
1X0200400.06.0
0
Fixed isolated joint with suspension cable / Giunto
fisso isolato con cavo di sospensione
Not include
d
For electrical cables - 1 Piec
e
Plasterboard cut-out Ø 44 m
m
Minimum space for mounting 70 m
m
For 12,5 mm plasterboar
d
Not include
d
Matt Black
1X0200400.12.0
0
Matt Black
For electrical cables - 1 Piec
e
Plasterboard cut-out Ø 44 m
m
Minimum space for mounting 70 m
m
For 12,5 mm plasterboar
d
1X0000400.04.00
Flexible isolated joint with suspension cable / Giunto orientabile isolato con cavo di sospensione
Not include
d
Matt Black
1X0200400.11.0
0
Drivers / Alimentatori
Driver / Alimentatore
Not include
d
100-240V
24V/50W/IP20/ON/OFF
1Z112049
0
Suspension kits / Kit di sospension
e
Ceiling rose without driver / Rosone senza alimentatore
Not include
d
Matt White
For suspension cables - 1 Piece
1X0010300.01.0
0
Matt Black
For suspension cables - 1 Piece
1X0010400.01.0
0
Driver / Alimentatore
Not include
d
100-240V
24V/150W/IP67/1-10V
1Z112050
0
Recessed rose without driver / Rosone da incasso senza alimentatore
Not include
d
Matt White
Controller
Not include
d
DALI - PUSH - 0/1-10V - TRIAC - IP20
1Z217001
0
For suspension cables - 1 Piec
e
Plasterboard cut-out Ø 44 m
m
Minimum space for mounting 70 m
m
For 12,5 mm plasterboar
d
1X0000300.01.0
0
Matt Black
For suspension cables - 1 Piec
e
Plasterboard cut-out Ø 44 m
m
Minimum space for mounting 70 m
m
For 12,5 mm plasterboar
d
1X0000400.01.0
0
