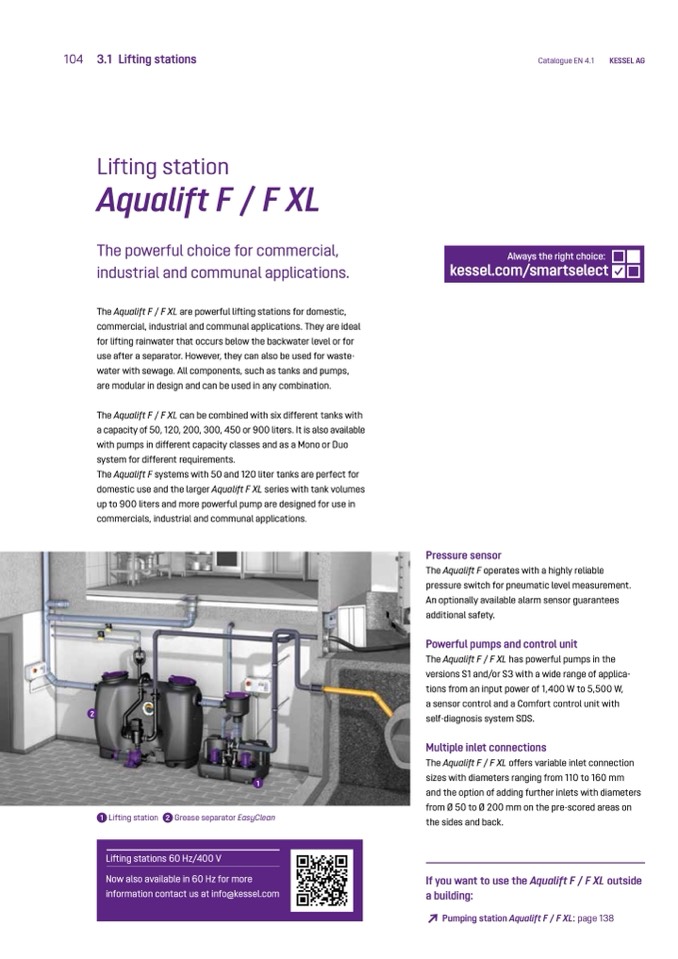

104
3.1 Lifting stations
Catalogue EN 4.1
KESSEL AG
Lifting station
Aqualift F / F XL
The powerful choice for commercial,
industrial and communal applications.
The Aqualift F / F XL are powerful lifting stations for domestic,
commercial, industrial and communal applications. They are ideal
for lifting rainwater that occurs below the backwater level or for
use after a separator. However, they can also be used for waste-
water with sewage. All components, such as tanks and pumps,
are modular in design and can be used in any combination.
The Aqualift F / F XL can be combined with six different tanks with
a capacity of 50, 120, 200, 300, 450 or 900 liters. It is also available
with pumps in different capacity classes and as a Mono or Duo
system for different requirements.
The Aqualift F systems with 50 and 120 liter tanks are perfect for
domestic use and the larger Aqualift F XL series with tank volumes
up to 900 liters and more powerful pump are designed for use in
commercials, industrial and communal applications.
Always the right choice:
kessel.com/smartselect
2
Pressure sensor
The Aqualift F operates with a highly reliable
pressure switch for pneumatic level measurement.
An optionally available alarm sensor guarantees
additional safety.
Powerful pumps and control unit
The Aqualift F / F XL has powerful pumps in the
versions S1 and/or S3 with a wide range of applica-
tions from an input power of 1,400 W to 5,500 W,
a sensor control and a Comfort control unit with
self-diagnosis system SDS.
Multiple inlet connections
The Aqualift F / F XL offers variable inlet connection
sizes with diameters ranging from 110 to 160 mm
and the option of adding further inlets with diameters
from Ø 50 to Ø 200 mm on the pre-scored areas on
the sides and back.
If you want to use the Aqualift F / F XL outside
a building:
↗
Pumping station Aqualift F / F XL: page 138
1 Lifting station
1
2 Grease separator EasyClean
