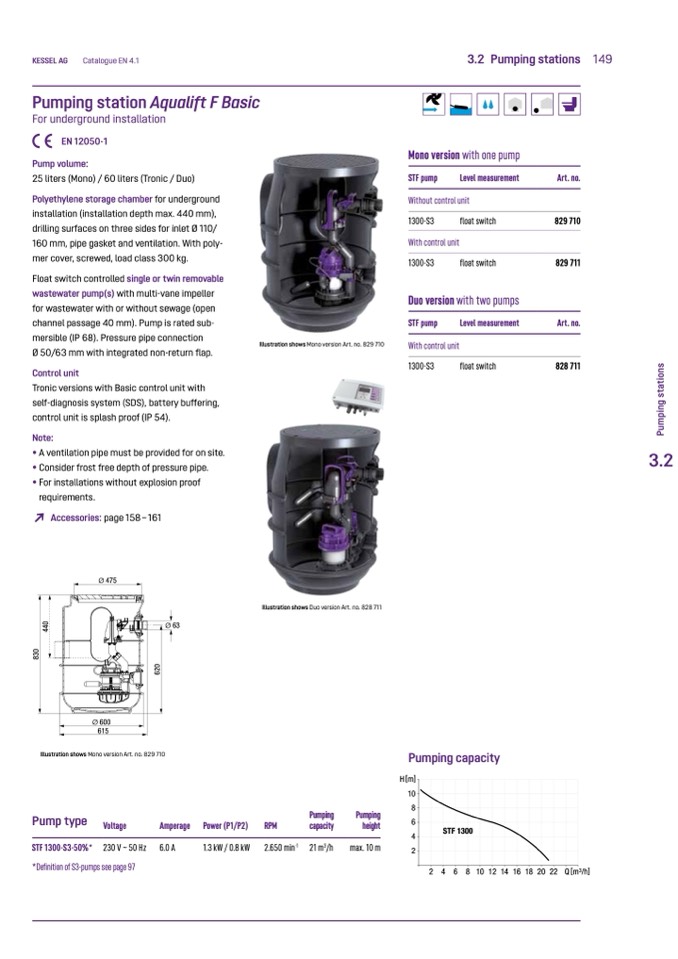

Pumping station Aqualift F Basic

For underground installation

EN 12050-1

Pump volume:

25 liters (Mono) / 60 liters (Tronic / Duo)

Polyethylene storage chamber for underground

installation (installation depth max. 440 mm),

drilling surfaces on three sides for inlet Ø 110/

160 mm, pipe gasket and ventilation. With poly-

mer cover, screwed, load class 300 kg.

Float switch controlled single or twin removable

wastewater pump(s) with multi-vane impeller

for wastewater with or without sewage (open

channel passage 40 mm). Pump is rated sub-

mersible (IP 68). Pressure pipe connection

Ø 50/63 mm with integrated non-return flap.

Control unit

Tronic versions with Basic control unit with

self-diagnosis system (SDS), battery buffering,

control unit is splash proof (IP 54).

Note:

• A ventilation pipe must be provided for on site.

• Consider frost free depth of pressure pipe.

• For installations without explosion proof

Mono version with one pump

STF pump

Level measurement

Without control unit

1300-S3

float switch

With control unit

1300-S3

float switch

Duo version with two pumps

Art. no.

829 710

829 711

Art. no.

828 711

requirements.

↗

Accessories: page 158 – 161

Pump type

STF 1300-S3-50%*

*Definition of S3-pumps see page 97

Pumping

capacity

21 m

3

/h

Pumping

height

max. 10 m

Ø 475

Ø 600

615

Illustration shows Duo version Art. no. 828 711

Illustration shows Mono version Art. no. 829 710

Pumping capacity

H [m]

10

8

6

4

2

Voltage

Amperage

6.0 A

Power (P1/P2)

1.3 kW / 0.8 kW

RPM

2.650 min

-1

STF 1300

230 V ~ 50 Hz

Ø 63

Illustration shows Mono version Art. no. 829 710

STF pump

With control unit

1300-S3

Level measurement

float switch

2 4 6 8 10121416182022 Q[m

3

/h]
