KESSEL AG
Catalogue EN 4.1
3.2 Pumping stations 155

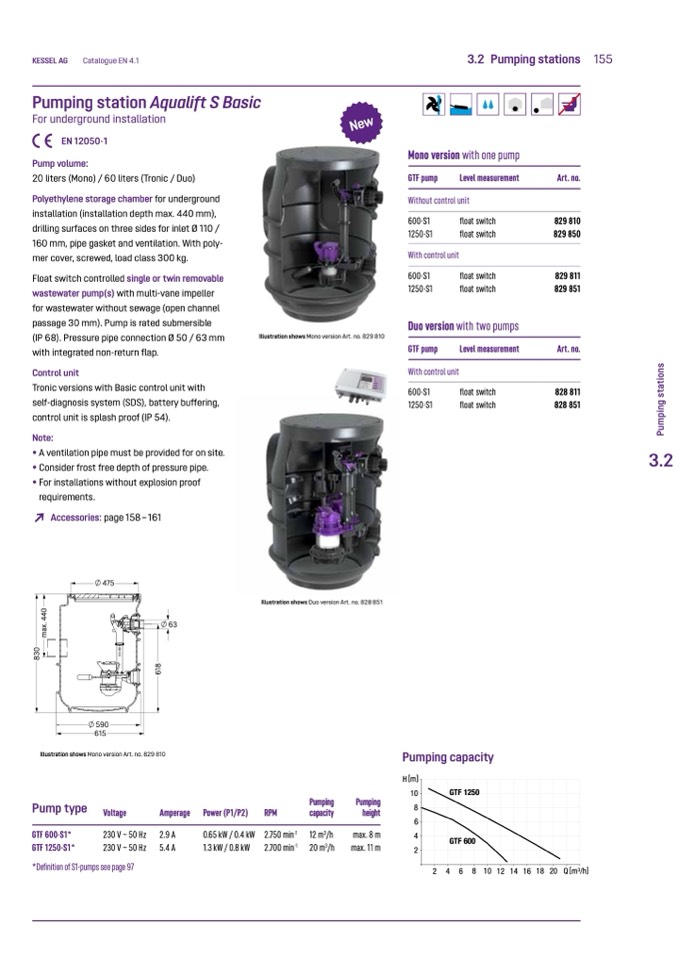

Pumping station Aqualift S Basic
For underground installation
New
EN 12050-1
Pump volume:
20 liters (Mono) / 60 liters (Tronic / Duo)
Polyethylene storage chamber for underground
installation (installation depth max. 440 mm),
drilling surfaces on three sides for inlet Ø 110 /
160 mm, pipe gasket and ventilation. With poly-
mer cover, screwed, load class 300 kg.
Float switch controlled single or twin removable
wastewater pump(s) with multi-vane impeller
for wastewater without sewage (open channel
passage 30 mm). Pump is rated submersible
(IP 68). Pressure pipe connection Ø 50 / 63 mm
with integrated non-return flap.
Control unit
Tronic versions with Basic control unit with
self-diagnosis system (SDS), battery buffering,
control unit is splash proof (IP 54).
Note:
• A ventilation pipe must be provided for on site.
• Consider frost free depth of pressure pipe.
• For installations without explosion proof
requirements.
↗
Accessories: page 158 – 161
Illustration shows Mono version Art. no. 829 810
Mono version with one pump
GTF pump
Level measurement
Without control unit
600-S1
float switch
1250-S1
float switch
With control unit
600-S1
float switch
1250-S1
float switch
Duo version with two pumps
Art. no.
829 810
829 850
829 811
829 851
Art. no.
828 811
828 851
Pump type
Pumping
RPM
capacity
Pumping
height
475
590
615
Illustration shows Duo version Art. no. 828 851
Illustration shows Mono version Art. no. 829 810
Pumping capacity
63
H [m]
10
8
6
GTF600-S1*
230V~50Hz 2.9A
0.65kW/0.4kW 2.750min
-1
12m
3
/h
max.8m
4
GTF 1250
GTF 600
Voltage
GTF1250-S1*
230V~50Hz 5.4A
1.3kW/0.8kW
2.700min
-1
20m
3
/h
max.11m
*Definition of S1-pumps see page 97
Amperage
Power (P1/P2)
GTF pump
With control unit
600-S1
1250-S1
Level measurement
float switch
float switch
2
2 4 6 8 101214161820Q[m
3
/h]
3.2
6
1
8
8
3
0
m
a
x
.
4
4
0
P
u
m
p
i
n
g
s
t
a
t
i
o
n
s
