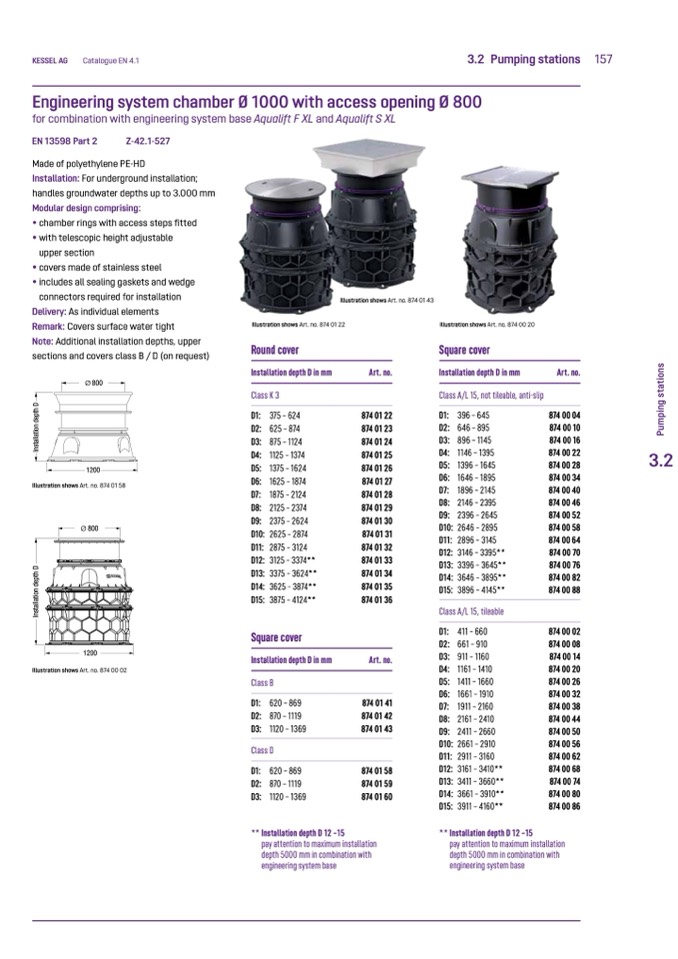

KESSEL AG
Catalogue EN 4.1
3.2 Pumping stations 157
Engineering system chamber Ø 1000 with access opening Ø 800
for combination with engineering system base Aqualift F XL and Aqualift S XL
EN 13598 Part 2
Z-42.1-527
Made of polyethylene PE-HD
Installation: For underground installation;
handles groundwater depths up to 3.000 mm
Modular design comprising:
• chamber rings with access steps fitted
• with telescopic height adjustable
upper section
• covers made of stainless steel
• includes all sealing gaskets and wedge
connectors required for installation
Delivery: As individual elements
Remark: Covers surface water tight
Note: Additional installation depths, upper
sections and covers class B / D (on request)
Ø 800
1200
Illustration shows Art. no. 874 01 58
Ø 800
1200
Illustration shows Art. no. 874 00 02
Illustration shows Art. no. 874 01 43
Illustration shows Art. no. 874 01 22
Illustration shows Art. no. 874 00 20
Square cover
Installation depth D in mm
Class A/L 15, not tileable, anti-slip
D1: 396 – 645
D2: 646 – 895
D3: 896 – 1145
D4: 1146 – 1395
D5: 1396 – 1645
D6: 1646 – 1895
D7: 1896 – 2145
D8: 2146 – 2395
D9: 2396 – 2645
D10: 2646 – 2895
D11: 2896 – 3145
D12: 3146 – 3395**
D13: 3396 – 3645**
D14: 3646 – 3895**
D15: 3896 – 4145**
Class A/L 15, tileable
D1: 411 – 660
D2: 661 – 910
D3: 911 – 1160
D4: 1161 – 1410
D5: 1411 – 1660
D6: 1661 – 1910
D7: 1911 – 2160
D8: 2161 – 2410
D9: 2411 – 2660
D10: 2661 – 2910
D11: 2911 – 3160
D12: 3161 – 3410**
D13: 3411 – 3660**
D14: 3661 – 3910**
D15: 3911 – 4160**
Round cover
Installation depth D in mm
Class K 3
D1: 375 – 624
D2: 625 – 874
D3: 875 – 1124
D4: 1125 – 1374
D5: 1375 – 1624
D6: 1625 – 1874
D7: 1875 – 2124
D8: 2125 – 2374
D9: 2375 – 2624
D10: 2625 – 2874
D11: 2875 – 3124
D12: 3125 – 3374**
D13: 3375 – 3624**
D14: 3625 – 3874**
D15: 3875 – 4124**
Square cover
Installation depth D in mm
Class B
D1: 620 – 869
D2: 870 – 1119
D3: 1120 – 1369
Class D
D1: 620 – 869
D2: 870 – 1119
D3: 1120 – 1369
Art. no.
874 01 22
874 01 23
874 01 24
874 01 25
874 01 26
874 01 27
874 01 28
874 01 29
874 01 30
874 01 31
874 01 32
874 01 33
874 01 34
874 01 35
874 01 36
Art. no.
874 01 41
874 01 42
874 01 43
874 01 58
874 01 59
874 01 60
Art. no.
874 00 04
874 00 10
874 00 16
874 00 22
874 00 28
874 00 34
874 00 40
874 00 46
874 00 52
874 00 58
874 00 64
874 00 70
874 00 76
874 00 82
874 00 88
874 00 02
874 00 08
874 00 14
874 00 20
874 00 26
874 00 32
874 00 38
874 00 44
874 00 50
874 00 56
874 00 62
874 00 68
874 00 74
874 00 80
874 00 86
3.2
I
n
s
t
a
l
l
a
t
i
o
n
d
e
p
t
h
D
I
n
s
t
a
l
l
a
t
i
o
n
d
e
p
t
h
D
P
u
m
p
i
n
g
s
t
a
t
i
o
n
s
** Installation depth D 12 –15
pay attention to maximum installation
depth 5000 mm in combination with
engineering system base
** Installation depth D 12 –15
pay attention to maximum installation
depth 5000 mm in combination with
engineering system base
