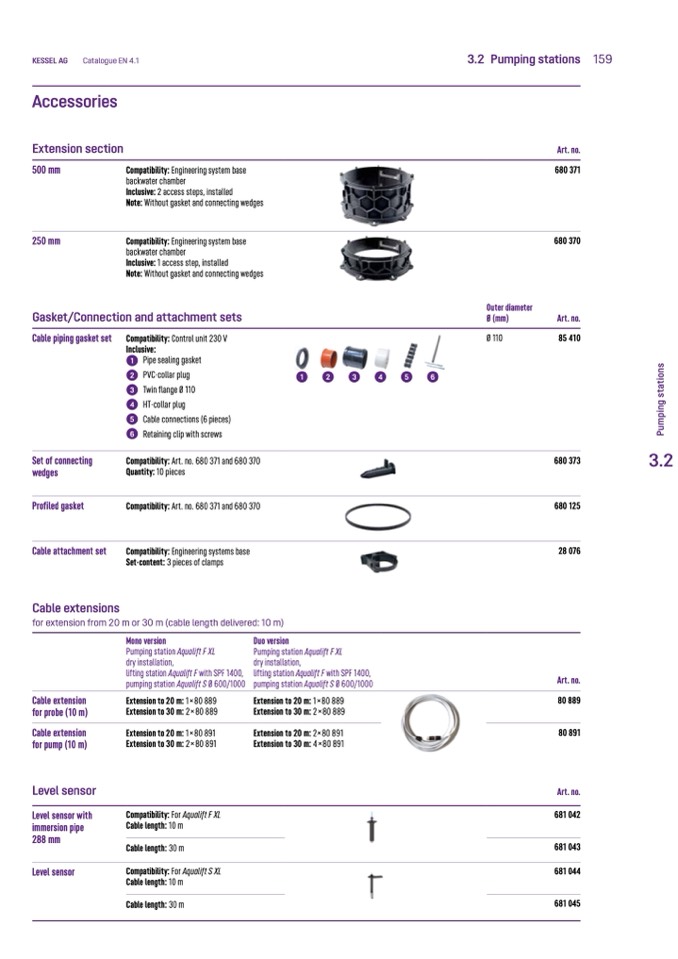

KESSEL AG

Catalogue EN 4.1

3.2 Pumping stations 159

Accessories

Extension section

500 mm

250 mm

Compatibility: Engineering system base

backwater chamber

Inclusive: 2 access steps, installed

Note: Without gasket and connecting wedges

Compatibility: Engineering system base

backwater chamber

Inclusive: 1 access step, installed

Note: Without gasket and connecting wedges

Art. no.

680 371

680 370

Art. no.

85 410

680 373

680 125

28 076

Art. no.

80 889

80 891

Art. no.

681 042

681 043

681 044

Gasket/Connection and attachment sets

Outer diameter

Ø (mm)

Ø 110

Cable piping gasket set

Set of connecting

wedges

Profiled gasket

Cable attachment set

Cable extensions

Compatibility: Control unit 230 V

Inclusive:

1 Pipe sealing gasket

2 PVC-collar plug

3 Twin flange Ø 110

4 HT-collar plug

5 Cable connections (6 pieces)

6 Retaining clip with screws

Compatibility: Art. no. 680 371 and 680 370

Quantity: 10 pieces

Compatibility: Art. no. 680 371 and 680 370

Compatibility: Engineering systems base

Set-content: 3 pieces of clamps

1

2

3

4

5

6

Pumping station Aqualift F XL

dry installation,

lifting station Aqualift F with SPF 1400,

pumping station Aqualift S Ø 600/1000

Extension to 20 m: 1 × 80 889

Extension to 30 m: 2 × 80 889

Extension to 20 m: 2× 80 891

Extension to 30 m: 4 × 80 891

for extension from 20 m or 30 m (cable length delivered: 10 m)

Mono version

Pumping station Aqualift F XL

dry installation,

lifting station Aqualift F with SPF 1400,

pumping station Aqualift S Ø 600/1000

Extension to 20 m: 1 × 80 889

Extension to 30 m: 2 × 80 889

Extension to 20 m: 1 × 80 891

Extension to 30 m: 2 × 80 891

Compatibility: For Aqualift F XL

Cable length: 10 m

Cable length: 30 m

Compatibility: For Aqualift S XL

Cable length: 10 m

Duo version

Cable extension

for probe (10 m)

Cable extension

for pump (10 m)

Level sensor

Level sensor with

immersion pipe

288 mm

Level sensor

Cable length: 30 m

681 045
