KESSEL AG

Catalogue EN 4.1

3.3 Submersible pumps

165

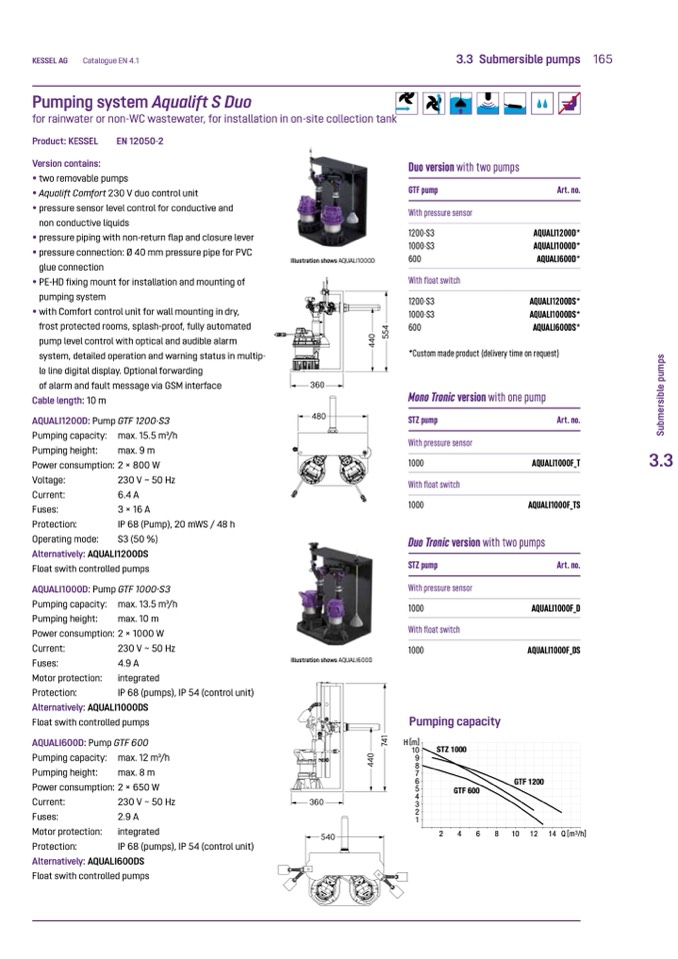

Pumping system Aqualift S Duo

for rainwater or non-WC wastewater, for installation in on-site collection tank

Product: KESSEL

EN 12050-2

Version contains:

• two removable pumps

• Aqualift Comfort 230 V duo control unit

• pressure sensor level control for conductive and

non conductive liquids

• pressure piping with non-return flap and closure lever

• pressure connection: Ø 40 mm pressure pipe for PVC

glue connection

• PE-HD fixing mount for installation and mounting of

pumping system

• with Comfort control unit for wall mounting in dry,

frost protected rooms, splash-proof, fully automated

pump level control with optical and audible alarm

system, detailed operation and warning status in multip-

le line digital display. Optional forwarding

of alarm and fault message via GSM interface

Cable length: 10 m

AQUALI1200D: Pump GTF 1200-S3

Duo version with two pumps

GTF pump

With pressure sensor

1200-S3

1000-S3

600

AQUALI600D*

With float switch

1200-S3

AQUALI1200DS*

1000-S3

AQUALI1000DS*

600

AQUALI600DS*

*Custom made product (delivery time on request)

Pumping capacity:

Pumping height:

Power consumption:

Voltage:

max. 15.5 m3/h

max. 9 m

2 × 800 W

230 V ~ 50 Hz

6.4 A

3 × 16 A

IP 68 (Pump), 20 mWS / 48 h

S3 (50 %)

1000

AQUALI1000F_T

With float switch

1000

AQUALI1000F_TS

3.3

Current:

Fuses:

Protection:

Operating mode:

Alternatively: AQUALI1200DS

Float swith controlled pumps

Duo Tronic version with two pumps

AQUALI1000D: Pump GTF 1000-S3

STZ pump

With pressure sensor

1000

With float switch

1000

Pumping capacity

Art. no.

AQUALI1000F_D

AQUALI1000F_DS

Pumping capacity:

Pumping height:

Power consumption:

Current:

AQUALI600D: Pump GTF 600

Fuses:

Motor protection:

Protection:

Alternatively: AQUALI1000DS

Float swith controlled pumps

Pumping capacity:

Pumping height:

Power consumption:

Current:

max. 12 m3/h

max. 8 m

2 × 650 W

230 V ~ 50 Hz

2.9 A

integrated

H [m]

10

9

8

7

6

5

4

3

2

1

STZ 1000

Fuses:

Motor protection:

Protection:

Alternatively: AQUALI600DS

Float swith controlled pumps

2

GTF 600

4

6

8

GTF 1200

10 12

14 Q [m

3

/h]

max. 13.5 m3/h

max. 10 m

2 × 1000 W

230 V ~ 50 Hz

4.9 A

integrated

IP 68 (pumps), IP 54 (control unit)

IP 68 (pumps), IP 54 (control unit)

360

Illustration shows AQUALI1000D

360

360

480

360

480

Illustration shows AQUALI600D

360

360

540

540

AQUALI1200D*

AQUALI1000D*

Mono Tronic version with one pump

STZ pump

With pressure sensor

Art. no.

Art. no.

4

4

0

4

4

0

7

4

1

7

4

1

7

4

1

4

4

0

4

4

0

5

5

4

7

4

1

4

4

0

S

u

b

m

e

r

s

i

b

l

e

p

u

m

p

s

4

4

0

5

5

4
