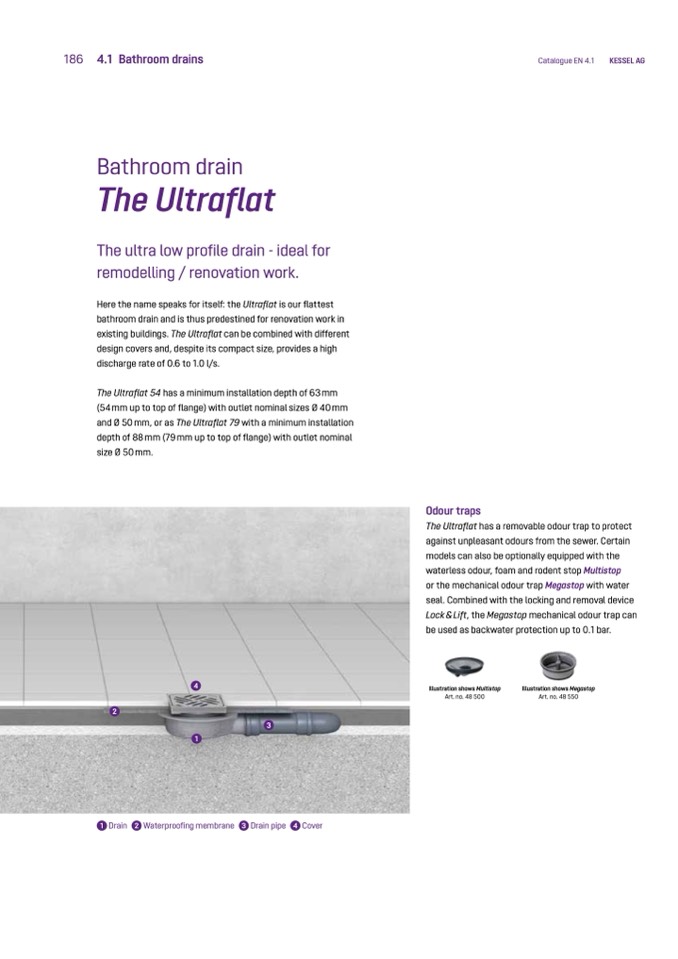

Bathroom drain

The Ultraflat

The ultra low profile drain - ideal for

remodelling / renovation work.

Here the name speaks for itself: the Ultraflat is our flattest

bathroom drain and is thus predestined for renovation work in

existing buildings. The Ultraflat can be combined with different

design covers and, despite its compact size, provides a high

discharge rate of 0.6 to 1.0 l/s.

The Ultraflat 54 has a minimum installation depth of 63 mm

(54 mm up to top of flange) with outlet nominal sizes Ø 40 mm

and Ø 50 mm, or as The Ultraflat 79 with a minimum installation

depth of 88 mm (79 mm up to top of flange) with outlet nominal

size Ø 50 mm.

Odour traps

The Ultraflat has a removable odour trap to protect

against unpleasant odours from the sewer. Certain

models can also be optionally equipped with the

waterless odour, foam and rodent stop Multistop

or the mechanical odour trap Megastop with water

seal. Combined with the locking and removal device

Lock & Lift, the Megastop mechanical odour trap can

be used as backwater protection up to 0.1 bar.

4

1

2 Waterproofing membrane

Illustration shows Multistop

Art. no. 48 500

Illustration shows Megastop

Art. no. 48 550

2

1 Drain

3

3 Drain pipe

4 Cover
